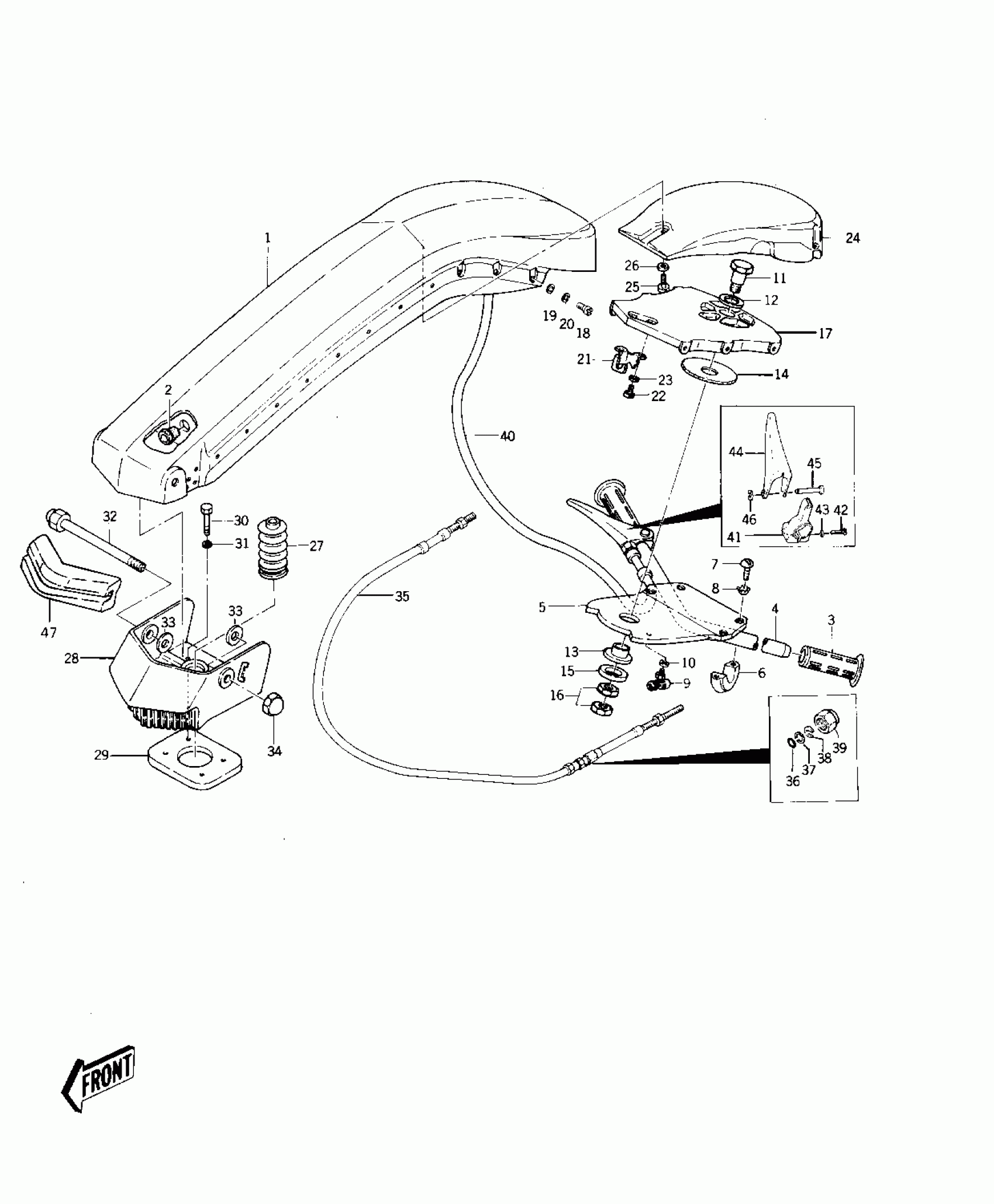

Kawasaki JS400 HANDLE POLE/CABLES Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

59166-513-8A

Unavailable

2

GROMMET

92071-530

$5.85

3

GRIP,HANDLE,RH

46075-3704

Unavailable

4

HANDLEBAR

32032-3017

$60.00

5

PLATE,HANDLE BAR

59086-534

$53.78

6

CLAMP,HANDLEBAR

92037-503

$15.14

7

SCREW,8X25

221R0825

$4.12

8

WASHER

92095-511

$0.83

9

JOINT-BALL

59266-3707

$59.33

10

WASHER-SPRING,6MM

461S0600

$0.84

11

BOLT 18X46

92003-527

$38.17

12

WASHER

92022-511

$4.25

13

BUSH

92028-508

$2.81

14

BUSH

92028-501

$6.80

15

WASHER

92022-571

$36.85

16

NUT 18M/M

92015-506

$13.14

17

BRACKET,HANDLE SUPORT

59016-552

$80.20

18

SCREW,6X18

220R0618

$2.56

19

WASHER-PLAIN,6MM

411S0600

$1.49

20

WASHER-SPRING,6MM

461S0600

$0.84

21

HOLDER,CABLE

16065-509

$13.86

22

SCREW-PAN-CROS,6X12

220R0612

$2.03

23

WASHER-SPRING,6MM

461S0600

$0.84

24

FLOAT

16031-506

Unavailable

25

SCREW

92011-562

$1.23

26

WASHER

92022-563

$0.90

27

COVER,WIRE

59176-512

$5.19

28

BRACKET,POLE

59016-548-9H

Unavailable

29

PLATE

59086-518

$14.27

30

BOLT-8X30MM

110R0830

Unavailable

31

WASHER-PLAIN,8MM

411S0800

$2.15

32

BOLT,14X183

92001-3018

Unavailable

33

WASHER

92022-507

$9.49

34

NUT,14MM

92015-507

Unavailable

35

CABLE,STEERING

59406-3001

$357.78

36

O RING,11MM

670B2011

$0.98

37

WASHER

92022-535

$7.25

38

RING-SNAP

92036-501

Unavailable

39

NUT,20MM

92015-526

$30.30

40

THROTTLE CABLE ASS'Y

59206-502

$77.22

41

BRACKET,THROTTLE LEV

11034-3009

Unavailable

42

SCREW 6X30

214R0630

$1.42

43

WASHER-SPRING,6MM

461S0600

$0.84

44

LEVER,THROTTLE

59126-509

Unavailable

45

PIN,THROTTLE

92043-508

$4.92

46

RING,SNAP

92036-518

$1.37

47

DAMPER

92075-519

Unavailable
