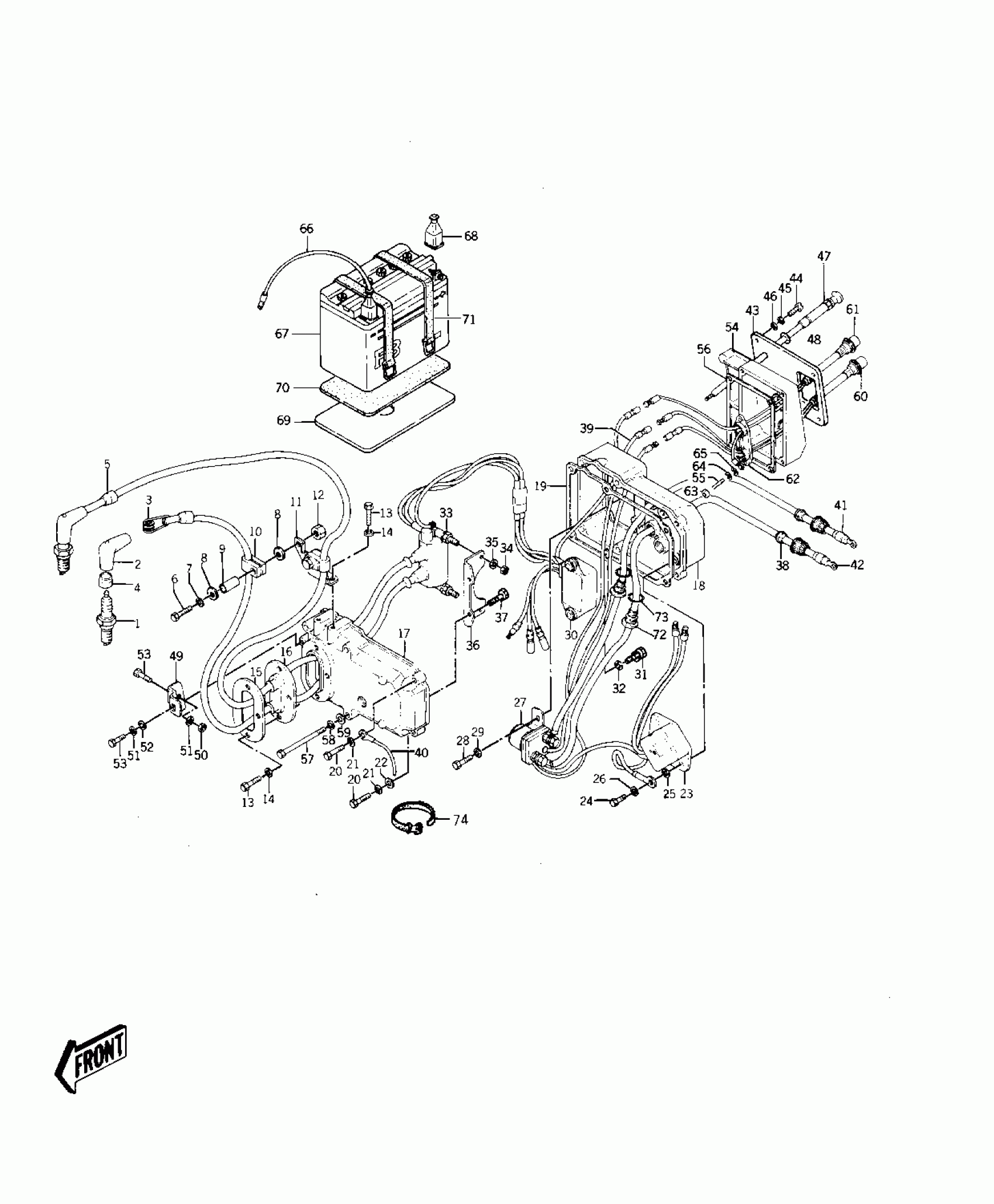

Kawasaki JS400 ELECTRIC CASE Diagram

#

Description
Price

1

SPARK PLUG B7ES

B7ES

$3.66

2

CAP,PLUG

21130-504

$4.42

3

SPRING,PLUG CAP

92081-542

$0.58

4

COVER,PLUG

92071-501

$4.36

5

GROMMET

92071-517

$0.73

6

BOLT,6X30

92001-3022

Unavailable

7

WASHER-PLAIN,6MM

411S0600

$1.49

8

WASHER

92022-553

$0.97

9

COLLAR

92027-519

$2.80

10

CLAMP

92037-523

$4.02

11

BRACKET,CLAMP

59016-514

$5.63

12

NUT-HEX,6MM

311R0600

$0.65

13

BOLT,6X14

110R0614

Unavailable

14

WASHER-SPRING,6MM

461S0600

$0.84

15

PLATE-ELECTRICAL CASE

59086-516

$3.76

16

GROMMET

92071-526

$7.41

17

BOX,ELECTRIC(1)

59021-518-9G

$62.78

18

BOX,ELECTRIC (2)

59021-526-9G

$50.63

19

GASKET,CASE

11009-3024

Unavailable

20

BOLT 6X22

110R0622

Unavailable

21

WASHER-SPRING,6MM

461S0600

$0.84

22

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

23

REGULATOR

21066-501

$226.85

24

BOLT-UPSET 6X14

112B0614

Unavailable

25

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

26

WASHER SPRING 6MM

461F0600

Unavailable

27

SWITCH,MAGNETIC

21164-515

$200.71

28

BOLT SMALL

114G0812

Unavailable

29

WASHER SPRING 5MM

461F0500

Unavailable

30

IGNITER

21119-3004

$348.77

31

BOLT-UPSET-WS

180B0622

Unavailable

32

WASHER,IGNITER

92022-3013

$0.43

33

COIL,IGNITION

21121-518

Unavailable

34

NUT 6MM

311B0600

Unavailable

35

WASHER SPRING 6MM

461F0600

Unavailable

36

BRACKET,COIL

59016-521

$5.34

37

BOLT-UPSET-WS

180B0614

Unavailable

38

GROMMET

92071-527

$5.13

39

WIRE,SWITCH

26011-504

$2.25

40

WIRE,EARTH

26011-505

$2.78

41

WIRE,STARTER

26011-510

$32.44

42

WIRE,BATTERY

26011-511

$14.92

43

DASHBOARD

59226-503-9H

$27.75

44

SCREW-PAN-CROS,6X20

220R0620

$4.07

45

WASHER-SPRING,6MM

461S0600

$0.84

46

WASHER-PLAIN,6MM

411S0600

$1.49

47

CABLE,CHOKE

59401-3001

Unavailable

48

GASKET

92065-538

Unavailable

49

CLAMP

92037-532

$3.12

50

NUT-HEX,6MM

312R0600

$1.29

51

WASHER-SPRING,6MM

461S0600

$0.84

52

WASHER-PLAIN,6MM

411S0600

$1.49

53

BOLT 6X12

110R0612

Unavailable

54

BOX,SWITCH

59191-502

$32.53

55

.STUD

171R0514A

$2.47

56

GASKET,UNIT BOX

92065-511

$2.14

57

BOLT 6X99

110R0699

Unavailable

58

WASHER-SPRING,6MM

461S0600

$0.84

59

WASHER-PLAIN,6MM

411S0600

$1.49

60

SWITCH,STARTER

21164-511

Unavailable

61

SWITCH,STOP

21164-512

Unavailable

62

RETAINER,SWITCH

23072-515

$5.19

63

NUT-HEX

311B0500

$0.47

64

WASHER SPRING 5MM

461F0500

Unavailable

65

WASHER-PLAIN,5MM

411B0500

Unavailable

66

WIRE,BATTERY EARTH

26011-501

$26.63

67

FB BAT 12N16-3B

26012-1013

Unavailable

68

CAP.,TERMINAL

59176-501

Unavailable

69

PLATE-BATTERY

59086-520

$8.07

70

DAMPER,BATTERY

92075-509

Unavailable

71

BAND,BATTERY,L=306

92072-512

$26.00

72

JOINT

59071-516

Unavailable

73

O RING,16MM

670B2016

$1.04

74

BAND,L=149

92072-031

$3.81
