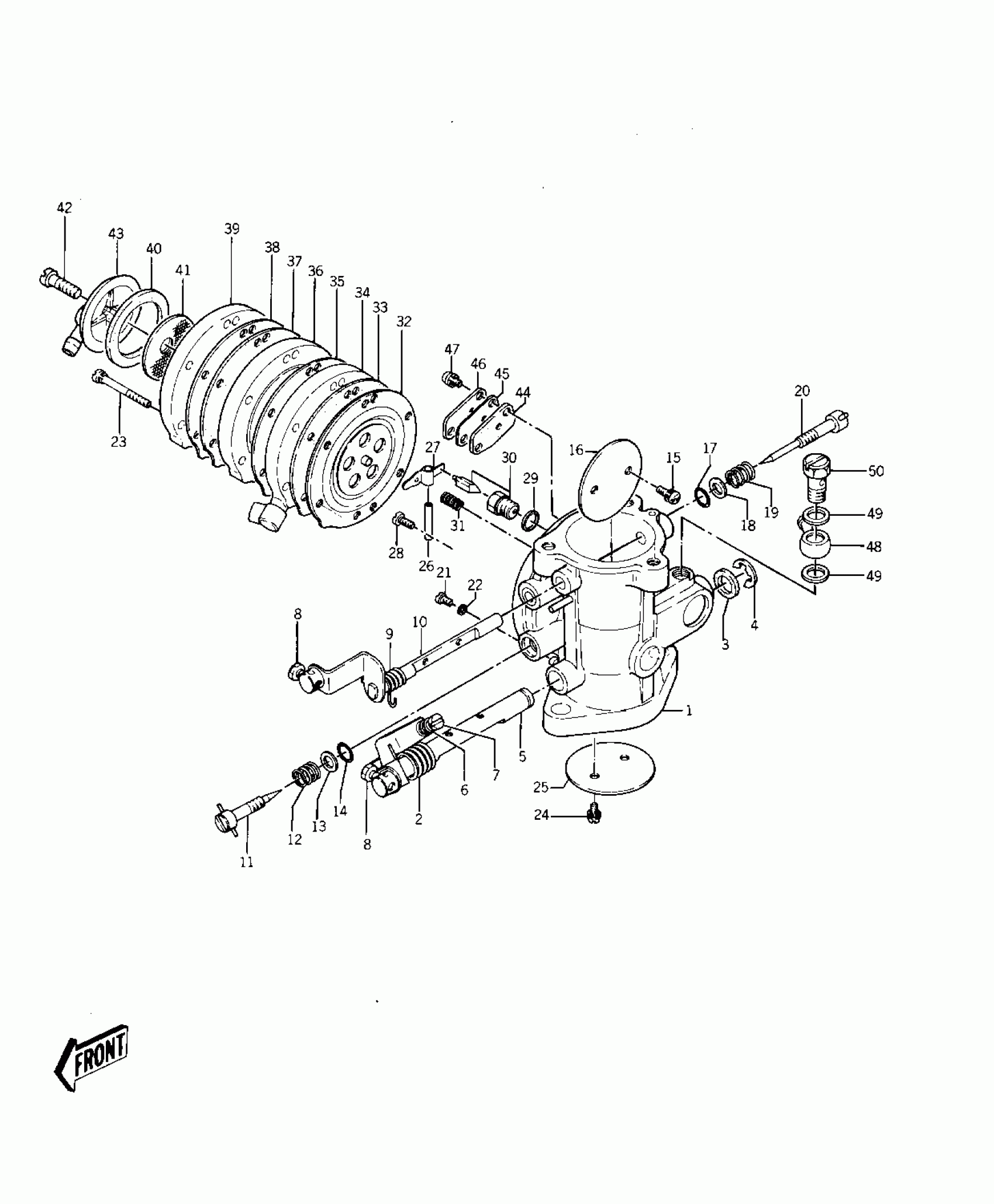

Kawasaki JS400 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR

16001-3003-YR

$390.22

2

.SPRING

92081-529

$3.37

3

.GASKET

92065-529

$1.14

4

.'E'RING

92036-512

$1.31

5

.THROTTLE SHAFT ASSY

59111-519

$39.27

6

SPRING,CABLE PULLY

16040-022

Unavailable

7

SCREW,4X20

92009-3009

$6.27

8

BOLT,4X8

92001-3026

Unavailable

9

SPRING

92081-525

Unavailable

10

CHOKE SHAFT ASS'Y

59111-513

$25.37

11

SCREW,LOW SPEED

59271-506

$13.68

12

SPRING

92081-528

Unavailable

13

WASHER

92022-537

Unavailable

14

"0" RING

92055-510

Unavailable

15

SCREW 3X5

92011-517

Unavailable

16

VALVE,CHOKE

16126-3001

Unavailable

17

"0" RING,DRAIN PLUG

92055-1093

$7.49

18

WASHER

92065-528

Unavailable

19

SPRING

92081-534

Unavailable

20

SCREW,HIGH SPEED

59271-507

$47.78

21

.SCREW 2.3X3

92011-506

$0.68

22

.GASKET

92065-520

$0.59

23

SCREW 4X30

92011-515

Unavailable

24

SCREW 3X7

92011-516

Unavailable

25

VALVE,THROTTLE

16025-503

$44.77

26

FLOAT PIN

16032-006

$7.49

27

ARM

59001-506

Unavailable

28

SCREW 3X7

92011-516

Unavailable

29

WASHER FLOAT VLV SEAT

16029-004

$2.97

30

VALVE-SEAT

16030-503

Unavailable

31

SPRING

92081-536

Unavailable

32

DIAPHRAGM,MAIN

51069-502

$8.85

33

GASKET

11060-3704

Unavailable

34

BODY,DIAPHRAGM(1)

59021-514

$142.99

35

DIAPHRAGM,PUMP

43028-3002

Unavailable

36

BODY,DIAPHRAGM(2)

59336-3002

Unavailable

37

GASKET

11060-3705

Unavailable

38

DIAPHRAGM,PUMP

43028-3001

Unavailable

39

BODY,DIAPHRAGM(3)

59336-3003

$81.03

40

GASKET

92065-526

$15.36

41

FILTER

14037-504

$15.69

42

SCREW 4X12

92011-510

$7.83

43

COVER-CARB. SIDE

59036-530

Unavailable

44

.GASKET

92065-530

$5.14

45

DIAPHRAGM,CHECK SEAT

51069-501

Unavailable

46

.PLATE

59086-509

$1.14

47

SCREW 3X7

92011-516

Unavailable

48

BANJO-CARB

59071-505

$30.49

49

GASKET-BANJO BOLT

92065-078

Unavailable

50

BOLT,BANJO

92003-521

Unavailable
