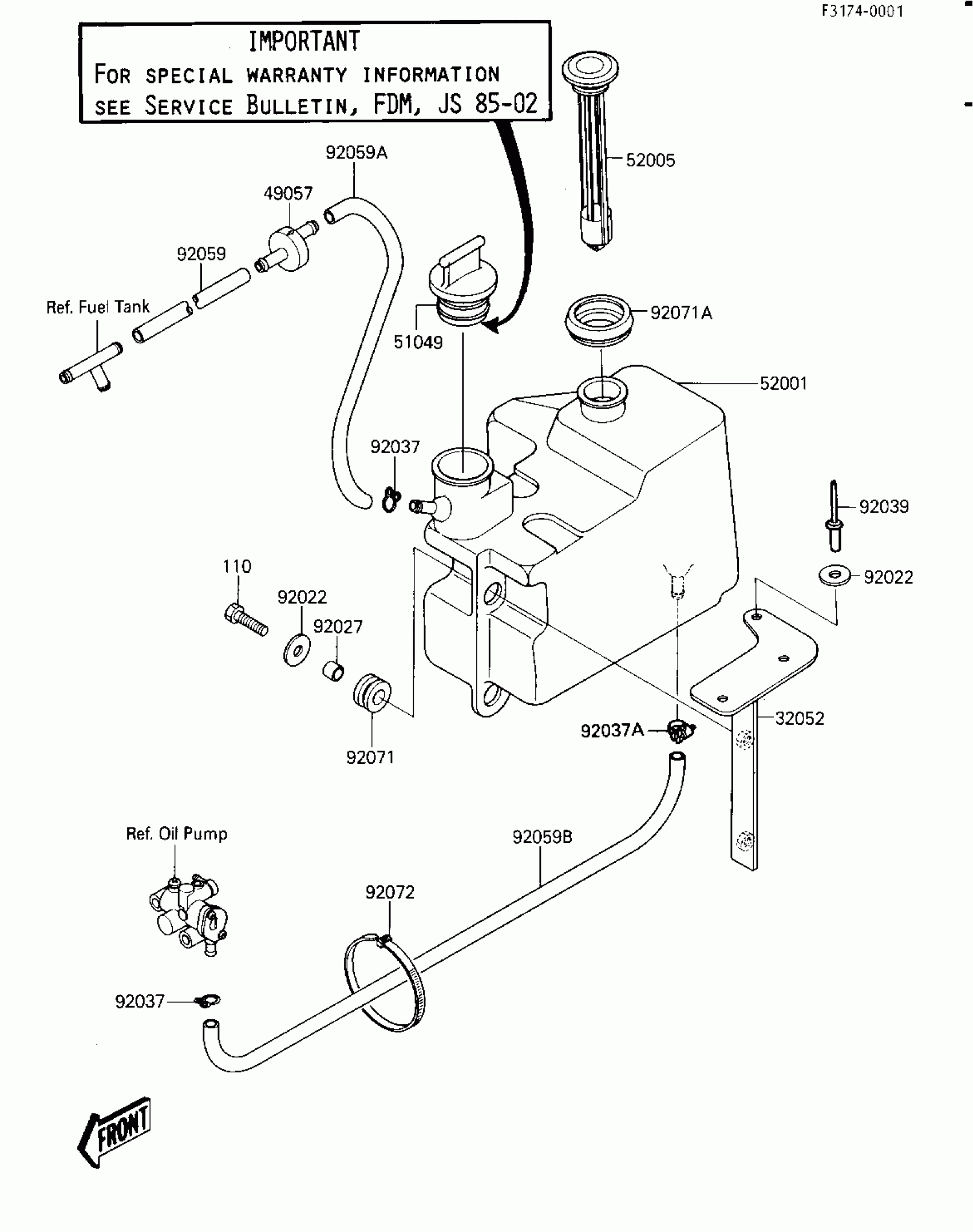

Kawasaki JS300 OIL TANK Diagram

Description

Price

32052

BRACKET-TANK,OIL

32052-3702

$54.78

49057

VALVE-RELIEF

49057-3001

$58.19

51049

CAP-TANK,OIL

51049-3707

$5.97

52001

TANK-OIL

52001-3702

$15.29

52005

GAUGE

52005-3702

$49.93

92022

WASHER,6.2X20X2

92022-3714

$3.19

92027

COLLAR,6.2X10X10

92027-3705

$8.63

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-3726

$3.63

92039

RIVET,4.8MM

92039-3719

$5.42

92059

TUBE,5.8X700

92059-3720

$36.41

92059A

TUBE,5.8X10.8X200

92059-3721

$6.94

92059B

TUBE

92059-3764

$17.24

92071

GROMMET

92071-3716

$4.39

92071A

GROMMET

92071-3750

Unavailable

92072

BAND,L=123

92072-030

$3.81

110

BOLT,6X25

110R0625

Unavailable
