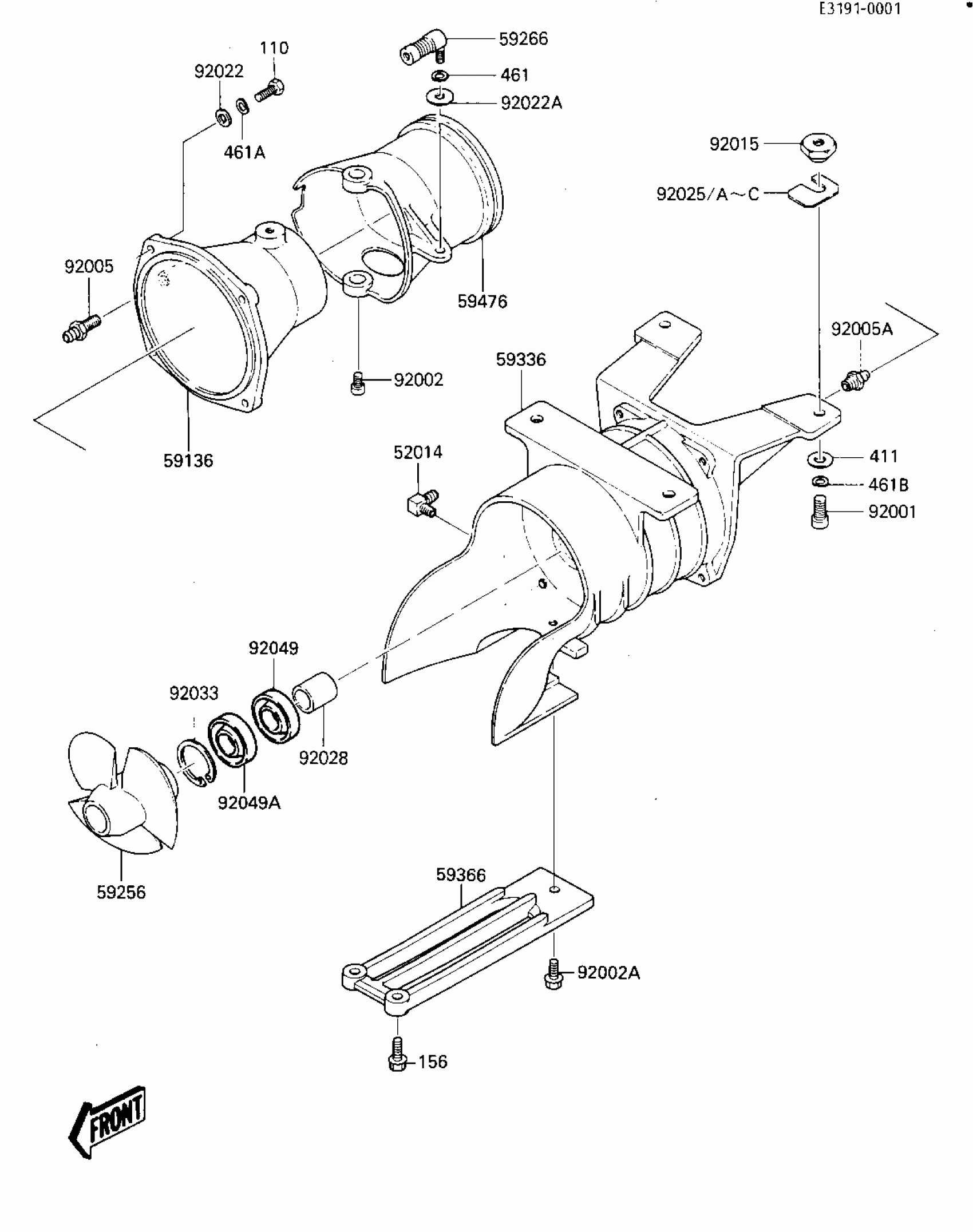

Kawasaki JS300 JET PUMP Diagram

#

Description
Price

52014

ELBOW

52014-3002

$37.06

59136

NOZZLE-PUMP

59136-3001

$118.79

59256

IMPELLER

59256-504

Unavailable

59266

JOINT-BALL

59266-3707

$59.33

59336

CASE-PUMP

59336-3701

Unavailable

59366

GRATE

59366-3001

Unavailable

59476

NOZZLE-STRG

59476-3702

Unavailable

92001

BOLT-SOCKET

120R1025

$8.92

92002

BOLT,SOCKET,6X11

92001-3701

$14.49

92002A

BOLT,6X16

92002-3728

$3.24

92005

FITTING,HOSE

92005-3001

$10.71

92005A

FITTING,GREASE

92005-501

Unavailable

92015

NUT,10MM

92015-3005

Unavailable

92022

WASHER

92022-562

Unavailable

92022A

WASHER

92022-567

$1.89

92025

SHIM,T=0.3MM

92025-3701

Unavailable

92025A

SHIM,T=0.5MM

92025-3702

Unavailable

92025B

SHIM,T=1.0MM

92025-3703

Unavailable

92025C

SHIM,T=1.5MM

92025-3704

Unavailable

92028

BUSHING

92028-503

Unavailable

92033

RING-SNAP

92036-502

Unavailable

92049

SEAL-OIL,SCY20368

92050-502

$22.44

92049A

SEAL-OIL,SC20367

92050-503

$20.19

110

BOLT,8X25

110R0825

Unavailable

156

BOLT-WP,6X25

156R0625

$3.63

411

WASHER-PLAIN,10MM

411S1000

$1.89

461

WASHER-SPRING,6MM

461S0600

$0.84

461A

WASHER SPRING 8MM

461S0800

$0.57

461B

WASHER-SPRING,10MM

461S1000

$0.84
