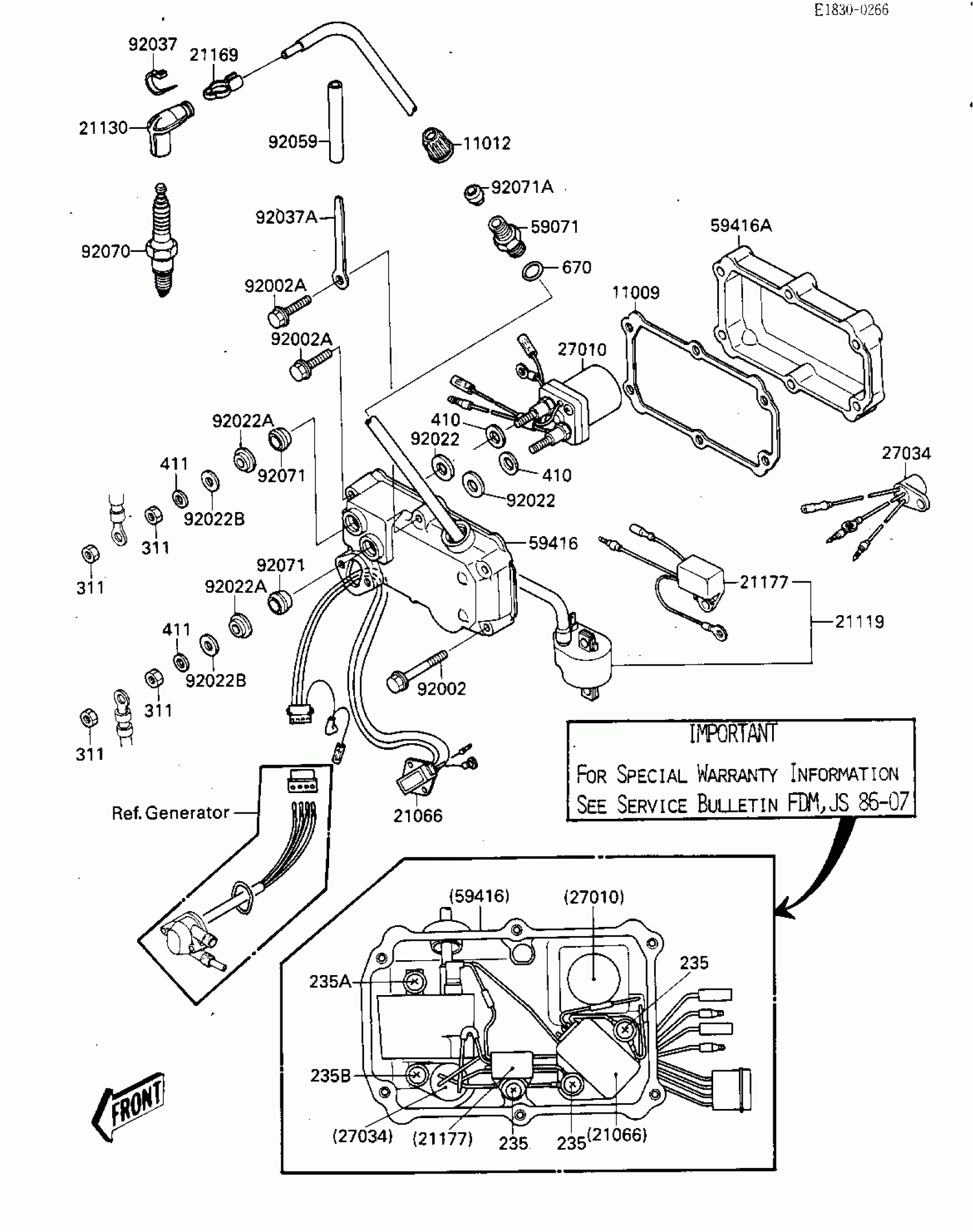

Kawasaki JS300 IGNITION/ELECTRIC CASE Diagram

#

Description
Price

11009

GASKET,ELECTRIC CASE

11009-3711

Unavailable

11012

CAP

11012-3005

$4.18

21066

REGULATOR-VOLTAGE

21066-3701

$245.55

21119

IGNITER

21119-3707

Unavailable

21130

CAP-SPARK PLUG

21130-1006

Unavailable

21169

TERMINAL,PLUG CAP

21169-001

Unavailable

21177

CONTROLLER

21177-3701

$142.31

27010

SWITCH,STARTER RELAY

27010-3703

$171.64

27034

RELAY,STOP SWITCH

27034-3002

Unavailable

59071

JOINT

59071-3001

$4.72

59416

CASE-ELECTRIC,FR

59416-3702

$135.54

59416A

CASE-ELECTRIC,RR

59416-3703

$88.99

92002

BOLT,6X35

92002-3715

$5.75

92002A

BOLT,6X65

92002-3720

Unavailable

92022

WASHER

92022-3035

$2.69

92022A

WASHER

92022-3708

$1.92

92022B

WASHER,6.5X19X2

92022-3709

$2.42

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP,L=100

92037-3736

$4.85

92059

TUBE,VINYL,5X73

92059-3017

Unavailable

92070

PLUG-SPARK,B7ES(NGK)

92070-3003

$3.66

92071

GROMMET

92071-3004

$3.05

92071A

GROMMET

92071-527

$5.13

235

SCREW-PAN-WP-CROS

235B0616

$3.52

235A

SCREW-PAN-WP-CROS

235B0620

Unavailable

235B

SCREW-PAN-WP-CROS

235B0625

Unavailable

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER PLAIN 10MM

410B1000

Unavailable

411

WASHER-PLAIN,6MM

411S0600

$1.49

670

O RING,16MM

670B2016

$1.04
