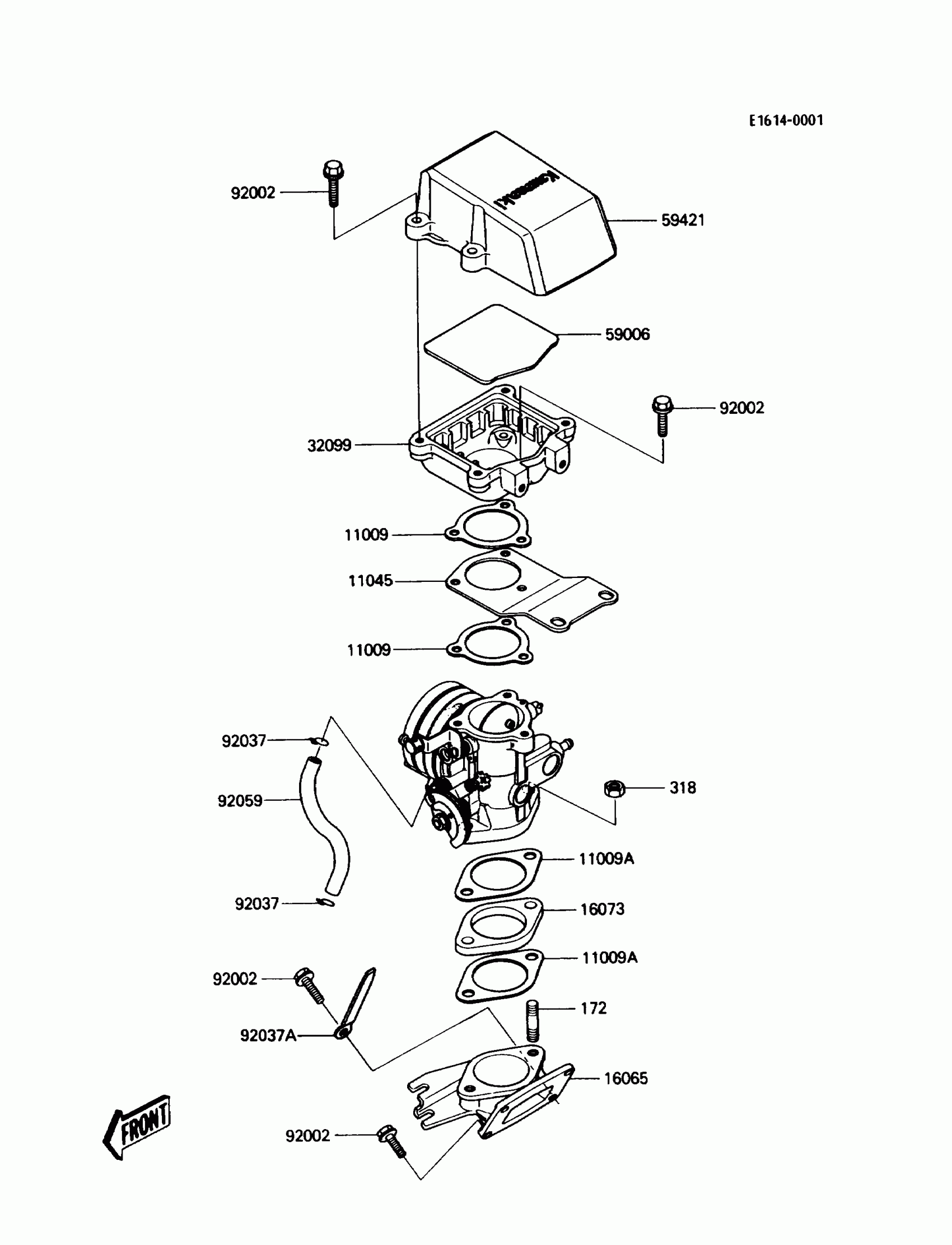

Kawasaki JS300 Flame Arrester Diagram

Description

Price

11009

GASKET

16062-502

Unavailable

11009A

GASKET,INSULATOR

16062-508

Unavailable

11045

BRACKET,CARBURETOR

11045-3724

Unavailable

16065

HOLDER-CARBURETOR

16065-3701

$57.84

16073

INSULATOR

16073-3701

$9.41

32099

CASE,FLAME ARRESTER

32099-3702

$45.34

59006

ARRESTER-FLAME

59006-3003

$79.20

59421

COVER-INTAKE

59421-3001

$52.63

92002

BOLT,6X25

92002-3714

$3.81

92037

CLAMP,11MM

92037-3723

$2.58

92037A

CLAMP,L=100

92037-3736

$4.85

92059

TUBE,5.8X10.8X250

92059-3757

$6.94

172

BOLT-STUD

172R0825

$7.83

318

NUT-HEX-SMALL

318R0800

$3.19
