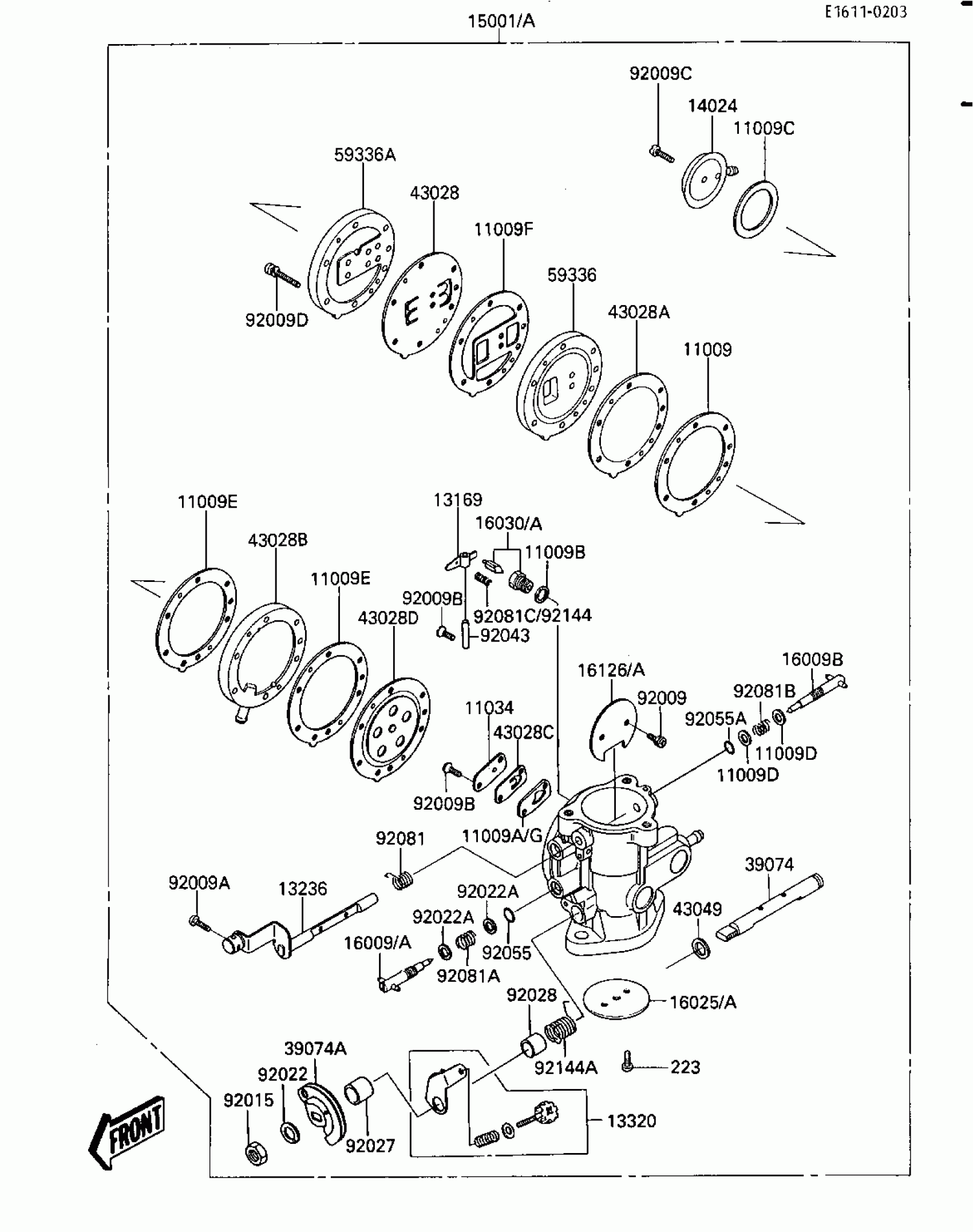

Kawasaki JS300 CARBURETOR Diagram

#

Description
Price

11009

GASKET

11009-3036

Unavailable

11009A

GASKET

11009-3734

Unavailable

11009B

WASHER FLOAT VLV SEAT

16029-004

$2.97

11009C

GASKET

92065-526

$15.36

11009D

WASHER

92065-528

Unavailable

11009E

GASKET

11060-3704

Unavailable

11009F

GASKET

11060-3705

Unavailable

11034

PLATE-CARB. SIDE

59086-541

$15.10

13169

ARM

59001-506

Unavailable

13236

LEVER-COMP,CHOKE

13236-3701

Unavailable

13320

LEVER-ASSY,THROTTLE

13320-3701

Unavailable

14024

COVER,CARBURETOR

14024-3721

Unavailable

15001

CARBURETOR-ASSY

15001-3728

$318.22

16009

NEEDLE-JET,PILOT SCREW

16009-2092

$43.00

16009B

NEEDLE-JET,HIGH SPEED

16009-3002

Unavailable

16025A

VALVE-THROTTLE,#140

16025-3702

$20.17

16030A

VALVE-FLOAT,#1.8

16030-3702

Unavailable

16126A

VALVE,CHOKE

16126-3701

$15.08

39074

LEVER-ASSY-THROTTLE,SHAFT

39074-3703

$79.36

39074A

LEVER-ASSY-THROTTLE,THROTTLE

39074-3704

$48.00

43028

DIAPHRAGM,PUMP

43028-3001

Unavailable

43028A

DIAPHRAGM,PUMP

43028-3002

Unavailable

43028B

DIAPHRAGM,PUMP

43028-3701

$133.74

43028C

DIAPHRAGM,CHECK SEAT

51069-501

Unavailable

43028D

DIAPHRAGM,MAIN

51069-502

$8.85

43049

PACKING

43049-3702

Unavailable

59336

BODY,DIAPHRAGM(2)

59336-3002

Unavailable

59336A

BODY,DIAPHRAGM(3)

59336-3003

$81.03

92009

SCREW,CHOKE VALVE

92009-3704

$2.71

92009A

SCREW,CHOKE LEVER

92009-3705

$2.64

92009B

SCREW

92009-3714

Unavailable

92009C

SCREW 4X12

92011-510

$7.83

92009D

SCREW 4X30

92011-515

Unavailable

92015

NUT,THROTTLE LEVER

92015-3717

$5.81

92022

WASHER,THROTTLE LEVER

92022-3722

Unavailable

92022A

WASHER

92022-537

Unavailable

92027

COLLAR,THROTTLE SHAFT

92027-3709

$31.34

92028

BUSHING,CARBURETOR

92028-3730

$24.03

92043

FLOAT PIN

16032-006

$7.49

92055

"0" RING

92055-510

Unavailable

92055A

"0" RING,DRAIN PLUG

92055-1093

$7.49

92081

SPRING,CHOKE SHAFT

92081-3705

$18.78

92081A

SPRING

92081-528

Unavailable

92081B

SPRING

92081-534

Unavailable

92144

SPRING

92144-3709

Unavailable

92144A

SPRING,THROTTLE SHAFT

92144-3715

$32.49

223

SCREW-PAN-WS-CROS

223B0307

$3.82
