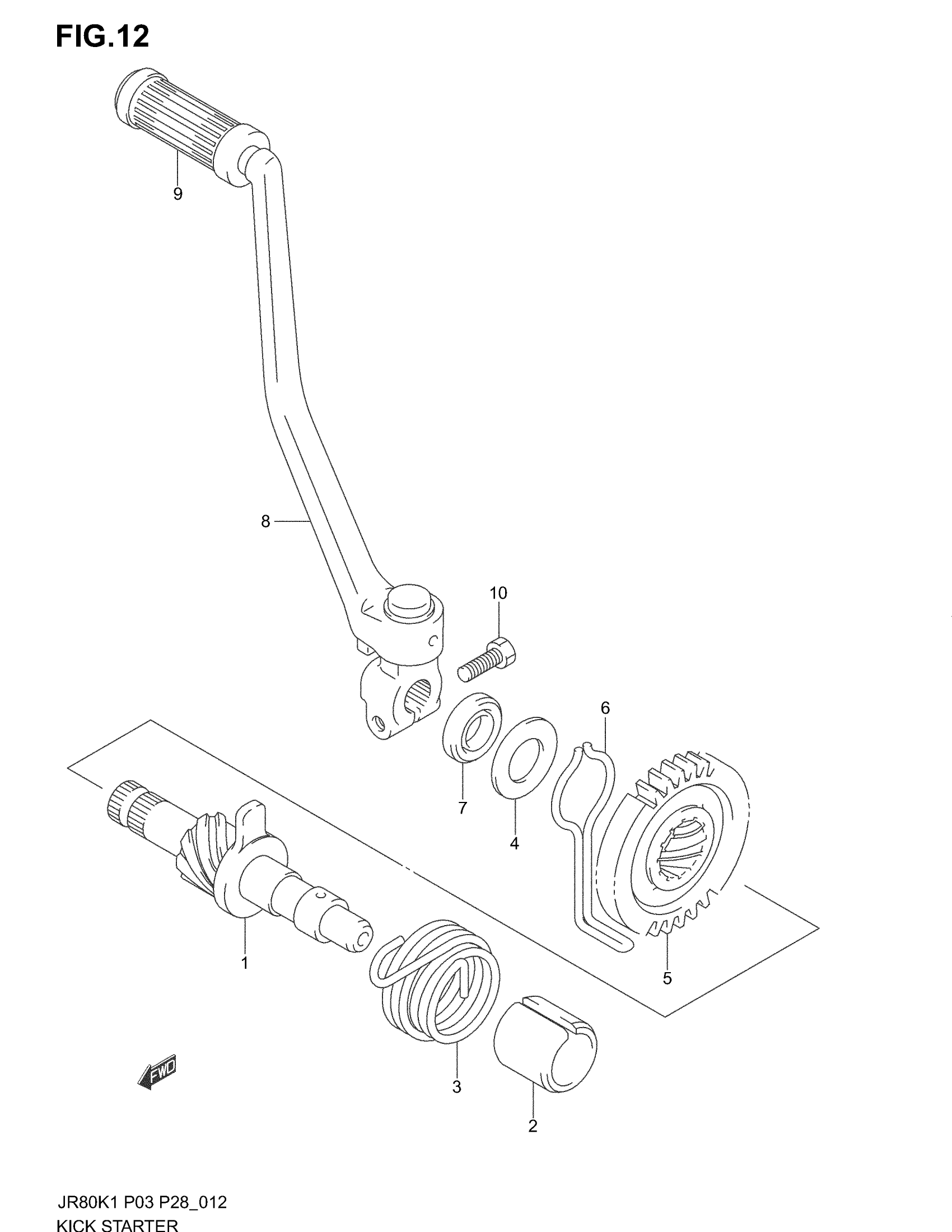

Suzuki JR80 (2004) KICK STARTER Diagram

#

Description

Price

1

SHAFT, KICK STARTER

26210-46001

$64.18

2

GUIDE, SPRING

26221-46000

$9.17

3

SPRING

09448-40001

$6.87

4

WASHER (14X29X1.5) This part replaces 09160-14046.

09160-14046-XC0

$5.18

5

GEAR, KICK DRIVE (NT:30)

26241-46000

$79.35

6

SPRING

09384-28001

$2.67

7

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$15.68

8

LEVER ASSY,KICK | Includes Item(s) 9 This part replaces 26300-26420.

26300-26421

$73.74

9

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.11

10

BOLT

09103-06185

$3.12
