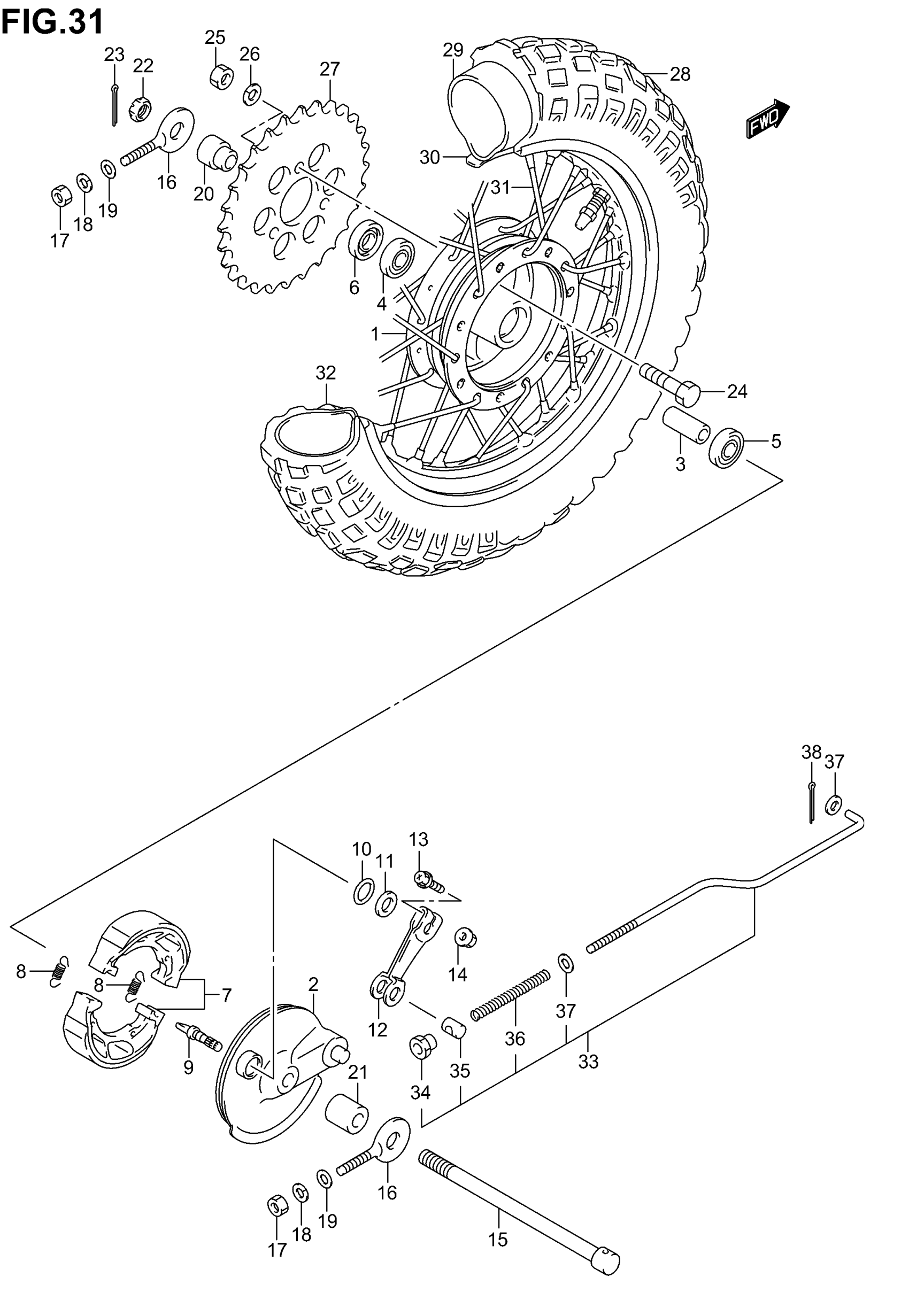

Suzuki JR50 (2006) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-04400

$187.67

2

PANEL, REAR BRAKE ANCHOR

64210-04400

Unavailable

3

SPACER (10.2X16X55)

09180-10149

$7.28

4

BEARING, LH

09262-10015

$18.50

5

BEARING, RH

08143-60007

$21.52

6

OIL SEAL (15X27X6)

09284-15004

$4.35

7

SHOE SET, BRAKE | Includes Item(s) 8

64400-04811

$24.22

8

SPRING

09443-07025

$1.68

9

CAM, BRAKE

54441-04001

$14.34

10

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

$3.33

11

WASHER (10.5X18X1)

09160-10121

$2.06

12

LEVER, BRAKE CAM

64451-04000

$8.74

13

BOLT, BRAKE CAM LEVER This part replaces 02162-05303.

01550-0525A

$2.58

14

NUT This part replaces 08316-10053.

08316-1005A

$2.19

15

AXLE, REAR

54711-04410

$23.07

16

ADJUSTER, CHAIN

61411-04000

$5.46

17

NUT This part replaces 08310-00063.

08310-0006A

$1.83

18

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.83

19

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

20

SPACER, LH (L:22)

64751-04410

$6.65

21

SPACER, RH (10X20X21)

64741-04410

$5.28

22

NUT

09141-10006

$3.23

23

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

24

BOLT (8X36)

09105-08011

$2.46

25

NUT This part replaces 08310-00083.

08310-0008A

$1.86

26

LOCK WASHER

09162-08008

$2.07

27

SPROCKET, REAR (NT:28)

64511-04411

$32.33

28

TIRE, REAR (2.50-10)

55100-04410

Unavailable

29

TUBE ASSY, WHEEL INNER

55200-04410

$25.53

30

PROTECTOR, INNER TUBE

55261-04410

$6.69

31

SPOKE SET, REAR WHEEL

55300-04820

$40.19

32

RIM, WHEEL (1.40X10)

55311-04410

$234.18

33

ROD ASSY, REAR BRAKE | Includes Item(s) 34 - 38

43300-04410

$6.51

34

NUT

09150-05003

$3.96

35

PIN

09209-10001

$1.33

36

SPRING

09440-09004

$2.06

37

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.83

38

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22
