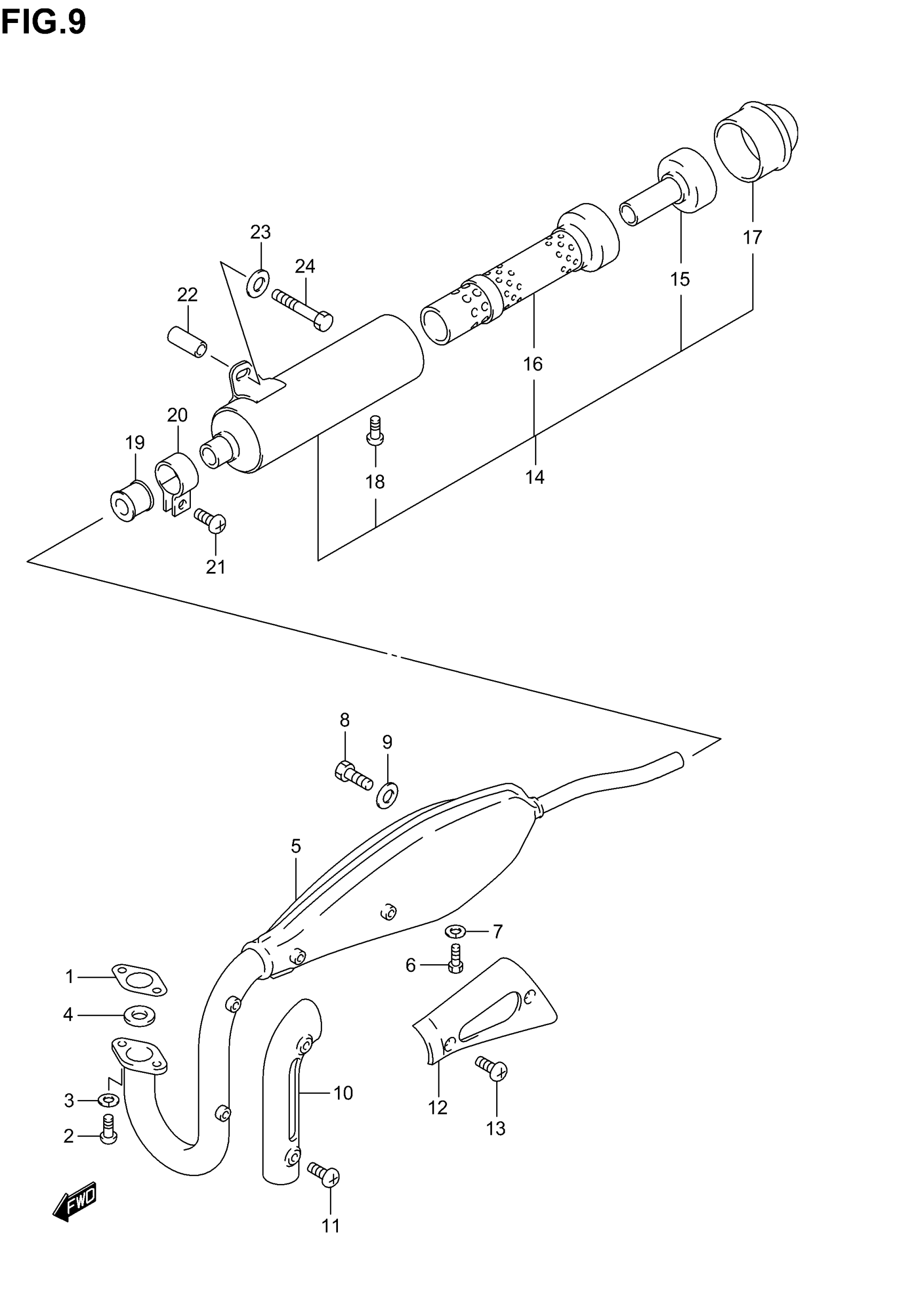

Suzuki JR50 (2006) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-04200

$7.98

2

BOLT This part replaces 07130-06163.

07130-0616B

$2.44

3

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.89

4

PLATE, EXHAUST PIPE

14159-04410

$1.92

5

MUFFLER ASSY | Includes Item(s) 6 - 7

14301-04420-H01

$450.13

6

BOLT This part replaces 01500-06103.

01500-0610B

$1.89

7

.WASHER This part replaces 08322-01063.

08322-0106B

$2.31

8

BOLT This part replaces 01570-08163.

01570-0816A

$3.30

9

WASHER (8.5X20X1.6) This part replaces 09160-08125.

09160-08054

$1.46

10

COVER, EXHAUST PIPE

14186-04410

$7.81

11

SCREW This part replaces 09125-05121.

02112-0506B

$1.94

12

COVER, MUFFLER

14781-04410

$9.66

13

SCREW This part replaces 09125-05121.

02112-0506B

$1.94

14

MUFFLER ASSY, 2ND | Includes Item(s) 15 - 18

14303-04420-H01

$195.87

15

PIPE, BAFFLE

14510-04420

Unavailable

16

ARRESTER

14850-04420

$48.90

17

CUTTER, MUFFLER TAIL

14817-04420

Unavailable

18

SCREW This part replaces 02112-36123.

02112-3612A

$2.14

19

CONNECTOR, MUFFLER

14771-04410

$2.40

20

CLAMP

09402-22601

Unavailable

21

SCREW This part replaces 02112-06163.

02112-0616A

$1.46

22

SPACER, 2ND MUFFLER SUPPORT

14419-04420

$7.12

23

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

24

BOLT

01500-08453

$2.62
