Description

Price

1

SHAFT, KICK STARTER

26211-04000

$64.22

2

GEAR, DRIVE (NT:43)

26241-04002

$80.57

3

WASHER

08211-25321

$2.99

4

CIRCLIP

09380-25009

$3.00

5

RETAINER SPRING

09384-30001

$5.53

6

WASHER

08211-12261

$2.72

7

WASHER (16X30.5X1)

09160-16003

$3.67

8

SPRING

09448-41001

$8.08

9

STOPPER, KICK STARTER

26232-04401

Unavailable

10

GUIDE, KICK RETURN SPRING

26221-04400

Unavailable

11

BOLT

09135-10003

$3.30

12

GASKET (9.9X14X0.3)

09168-10002

$1.96

13

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$15.23

14

LEVER ASSY,KICK | Includes Item(s) 15 This part replaces 26300-04410.

26300-04411

$114.37

15

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$2.97

16

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

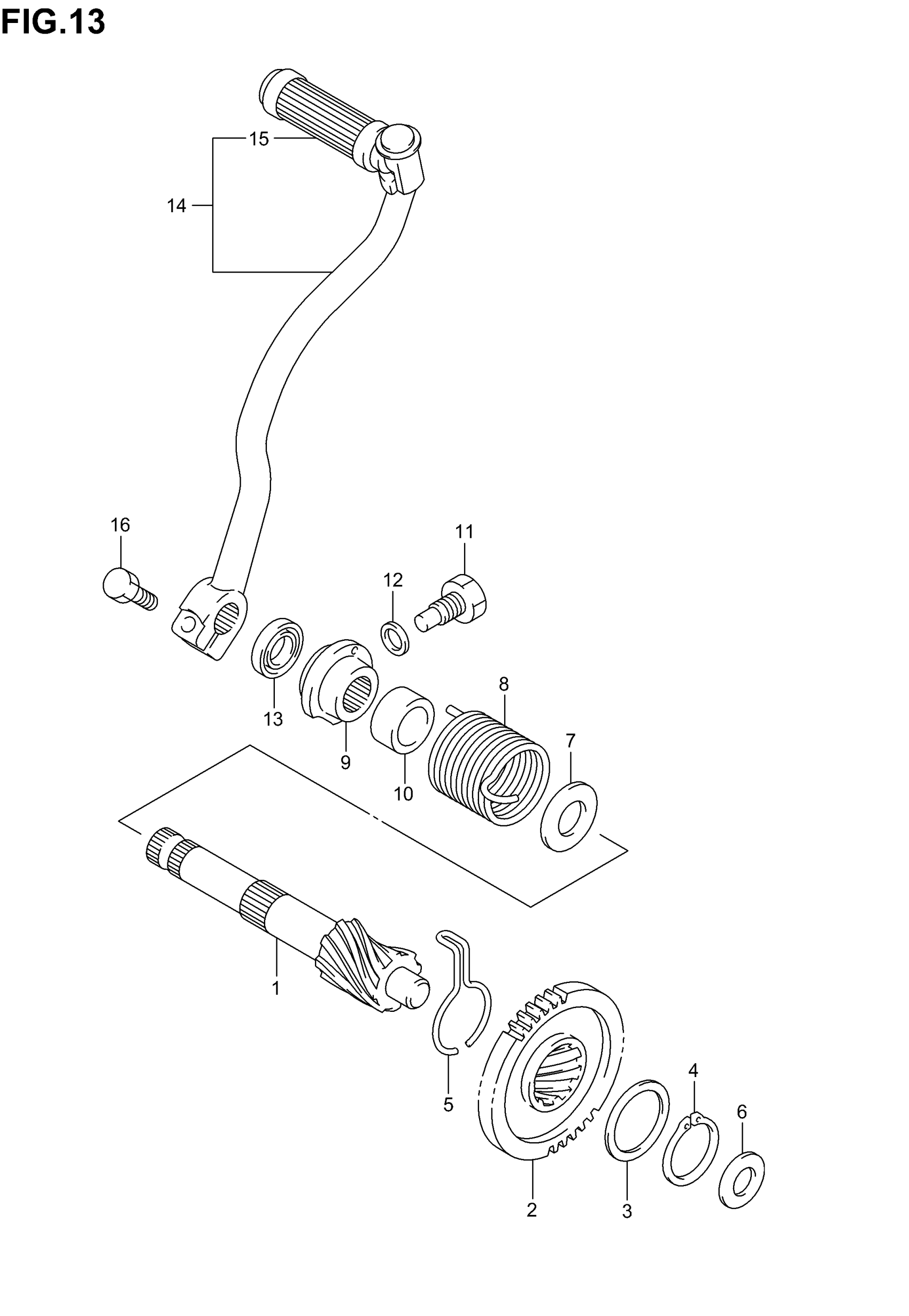

Suzuki JR50 (2006) KICK STARTER Diagram

SHAFT, KICK STARTER

GEAR, DRIVE (NT:43)

WASHER

CIRCLIP

RETAINER SPRING

WASHER

WASHER (16X30.5X1)

SPRING

STOPPER, KICK STARTER

GUIDE, KICK RETURN SPRING

BOLT

GASKET (9.9X14X0.3)

OIL SEAL (14X24X6) This part replaces 09285-14001.

LEVER ASSY,KICK | Includes Item(s) 15 This part replaces 26300-04410.

RUBBER,KICK STA This part replaces 26352-01000.

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.
