2006 Suzuki JR50 Gear Shifting Diagram

← All diagrams

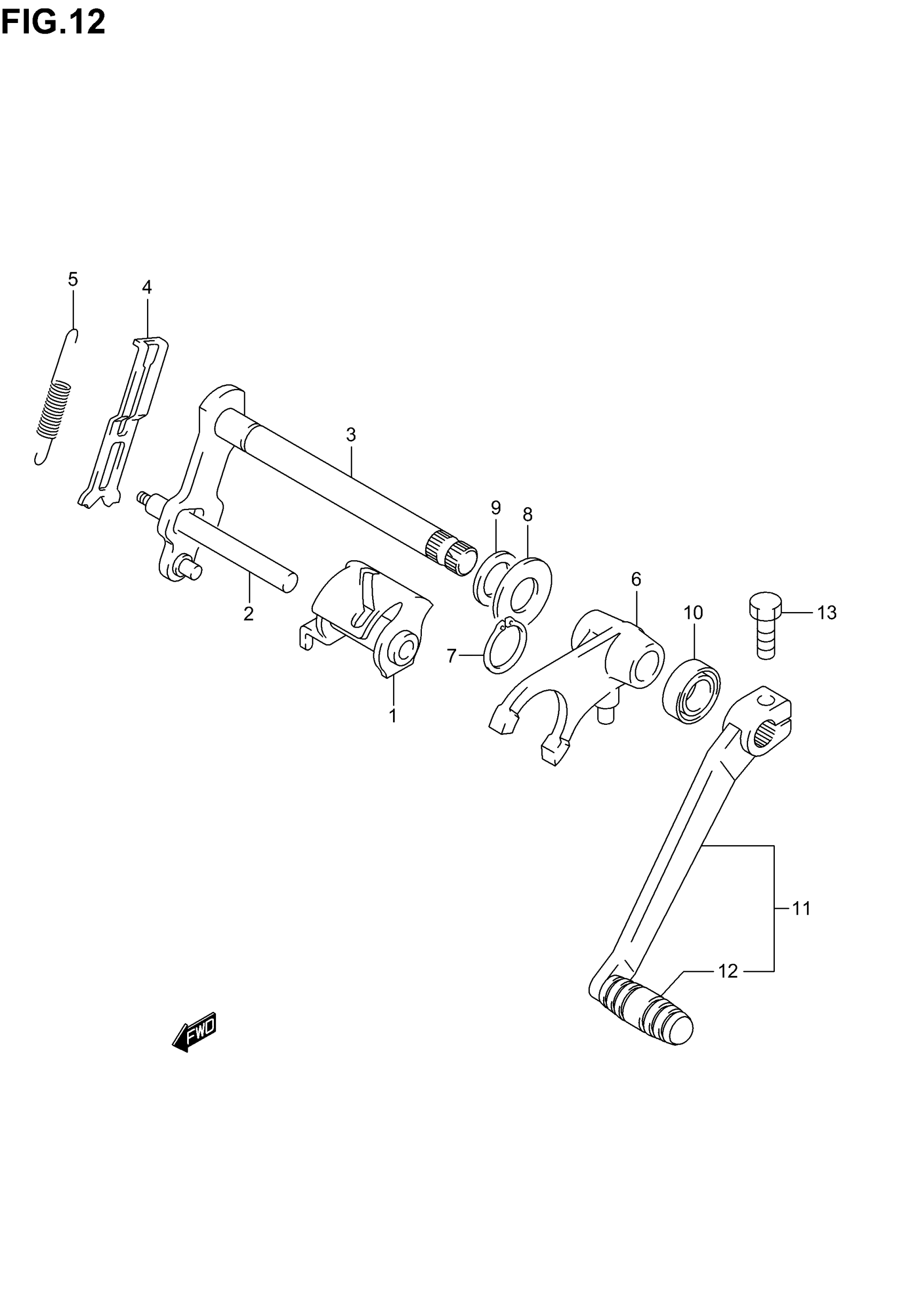

Find the part on the Gear Shifting diagram for your 2006 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki JR50 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, GEAR SHIFTING

25310-04001

1

$71.43

In stock

2

SHAFT, CAM

25411-04000

1
Out of stock

3

SHAFT, GEAR SHIFTING

25510-04401

1
Out of stock

4

ARM, CAM STOPPER

25352-04000

1
Out of stock

5

SPRING

09443-08008

1

$2.72

In stock

6

FORK, GEAR SHIFTING

25211-04010

1
Out of stock

7

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

8

WASHER

08211-12261

1

$2.72

In stock

9

WASHER

08211-12205

1
Out of stock

10

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

13

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock
