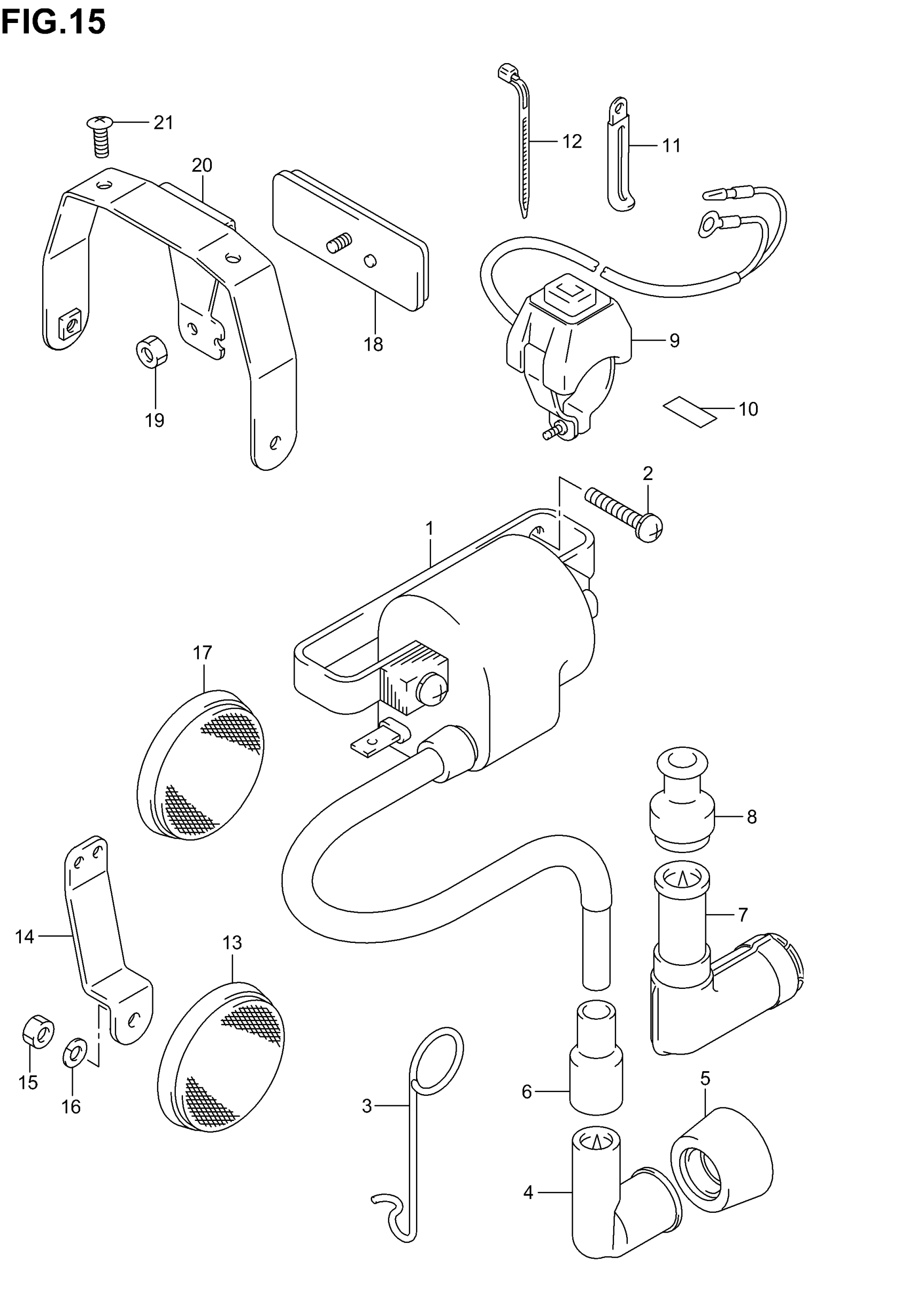

Suzuki JR50 (2006) ELECTRICAL Diagram

#

Description
Price

1

UNIT & COIL ASSY, IGNITION

33410-35340

$180.65

2

SCREW

02112-06207

$1.77

3

GUIDE, HIGH TENSION CORD

58626-04410

$3.58

4

CAP, SPARK PLUG

33510-35411

$31.90

5

SEAL, SPARK PLUG

33541-69010

$4.11

6

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

7

CAP, SPARK PLUG | E28

33510-19G00

Unavailable

8

SEAL,HIGH TENSION CORD (SIDE) | E28

33542-38B00

$3.97

9

SWITCH ASSY, ENGINE STOP

37820-14X50

$44.43

10

LABEL

37238-46401

Unavailable

10

LABEL | E28

37238-46411

Unavailable

11

CLAMP (L:45)

09404-06429

$1.82

12

CLAMP (L:165)

09407-18402

$2.21

13

REFLEX REFLECTOR ASSY, FR SIDE | E28

35950-14A00

$15.95

14

BRACKET, FR SIDE RR | E28

35975-09AA0

Unavailable

15

NUT | E28 This part replaces 08310-00053.

08310-0005A

$1.83

16

LOCK WASHER | E28 This part replaces 08321-01053.

08321-0105A

$1.83

17

REFLEX REFLECTOR ASSY, RR SIDE

35970-14A10

$21.23

18

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

$19.11

19

NUT | E28 This part replaces 08310-00053.

08310-0005A

$1.83

20

BRACKET, SIDE & REAR | E28

35976-04450

Unavailable

21

SCREW, REAR RR BRACKET | E28

02142-06127

$1.38
