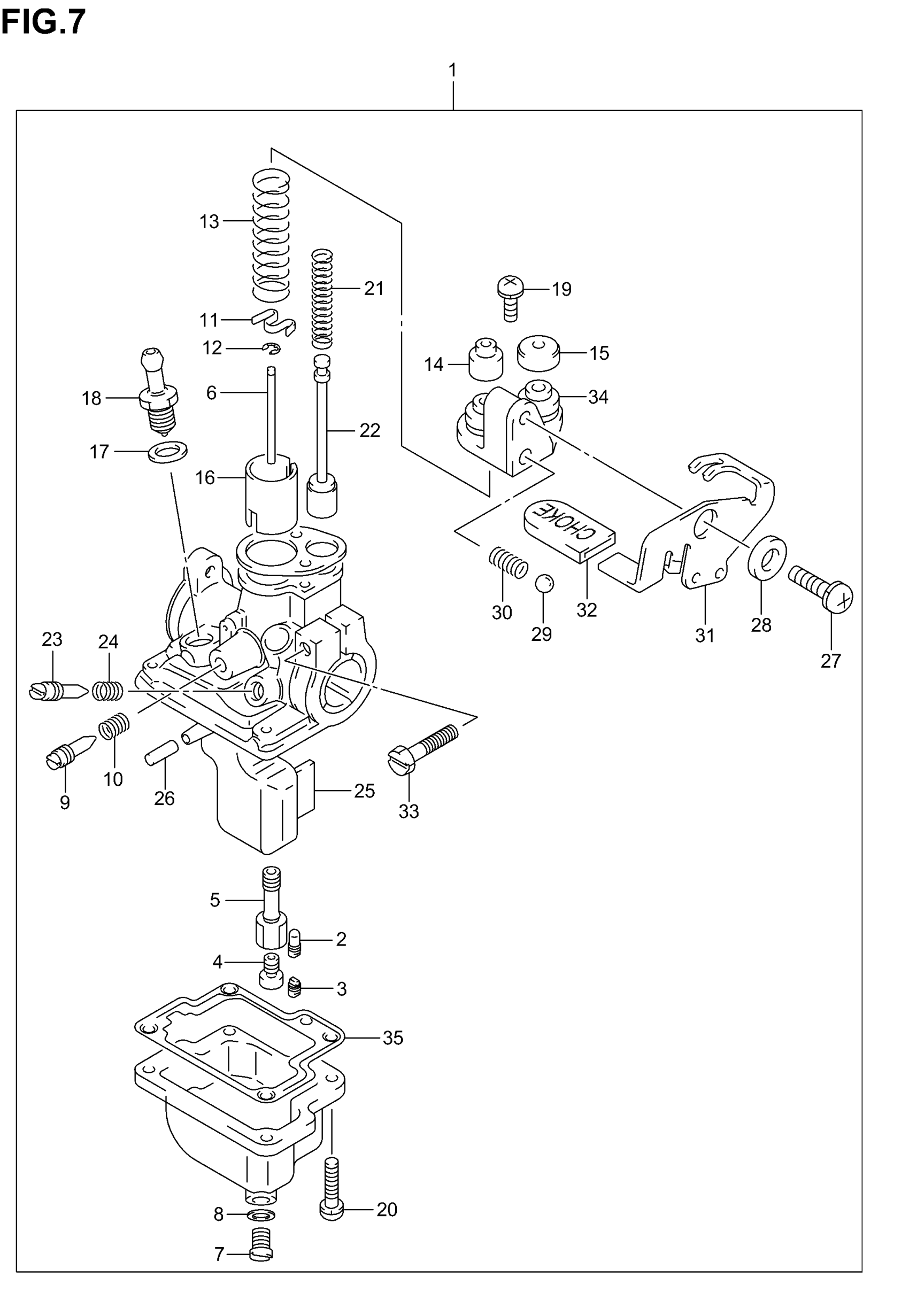

Suzuki JR50 (2006) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 2 - 35

13200-04450

$143.17

2

JET, PILOT NO.1 (15)

09492-15015

$18.23

3

JET, PILOT NO.2

09492-15009

$10.70

4

JET, MAIN (56.3)

09491-56002

Unavailable

5

JET, NEEDLE (E-6)

09494-00933

$25.07

6

NEEDLE, JET (3D23-3)

13383-13670

Unavailable

7

PLUG, DRAIN

13247-05010

$4.81

8

GASKET, DRAIN PLUG

13249-05010

$1.93

9

SCREW, THROTTLE STOP

13267-01010

$8.48

10

SPRING, STOP SCREW

13268-01010

$4.11

11

SEAT, THROTTLE VALVE SPRING

13581-04010

$8.80

12

CLIP, NEEDLE

13394-40D00

$5.97

13

SPRING, THROTTLE VALVE

13573-01010

$6.38

14

.CAP This part replaces 13681-04010.

13681-04011

$4.51

15

CAP, STARTER

13682-98010

$4.05

16

VALVE, THROTTLE (CA:3.0)

13551-04110

Unavailable

17

GASKET, VALVE SEAT

13663-31010

$2.80

18

VALVE ASSY, NEEDLE

13370-04450

$43.22

19

SCREW This part replaces 02112-34103.

02112-3410A

$2.04

20

SCREW This part replaces 02112-34123.

02112-3412B

$2.50

21

SPRING, STARTER VALVE

13417-43010

$3.97

22

VALVE, STARTER

13411-04410

$19.03

23

SCREW, PILOT AIR

13269-04010

$15.43

24

SPRING

13268-01010

$4.11

25

FLOAT

13252-04011

$21.81

26

PIN, FLOAT

13254-04010

$4.92

27

SCREW

13601-06128

$3.98

28

RING

13424-30650

$5.01

29

BALL

13435-33110

$2.21

30

SPRING

13434-30650

$3.38

31

LEVER, STARTER

13413-04450

$22.25

32

CAP, LEVER

13416-28700

$6.77

33

BOLT

13323-04010

$2.97

34

TOP ASSY

13261-04410

Unavailable

35

GASKET, FLOAT CHAMBER

13251-04110

$5.04
