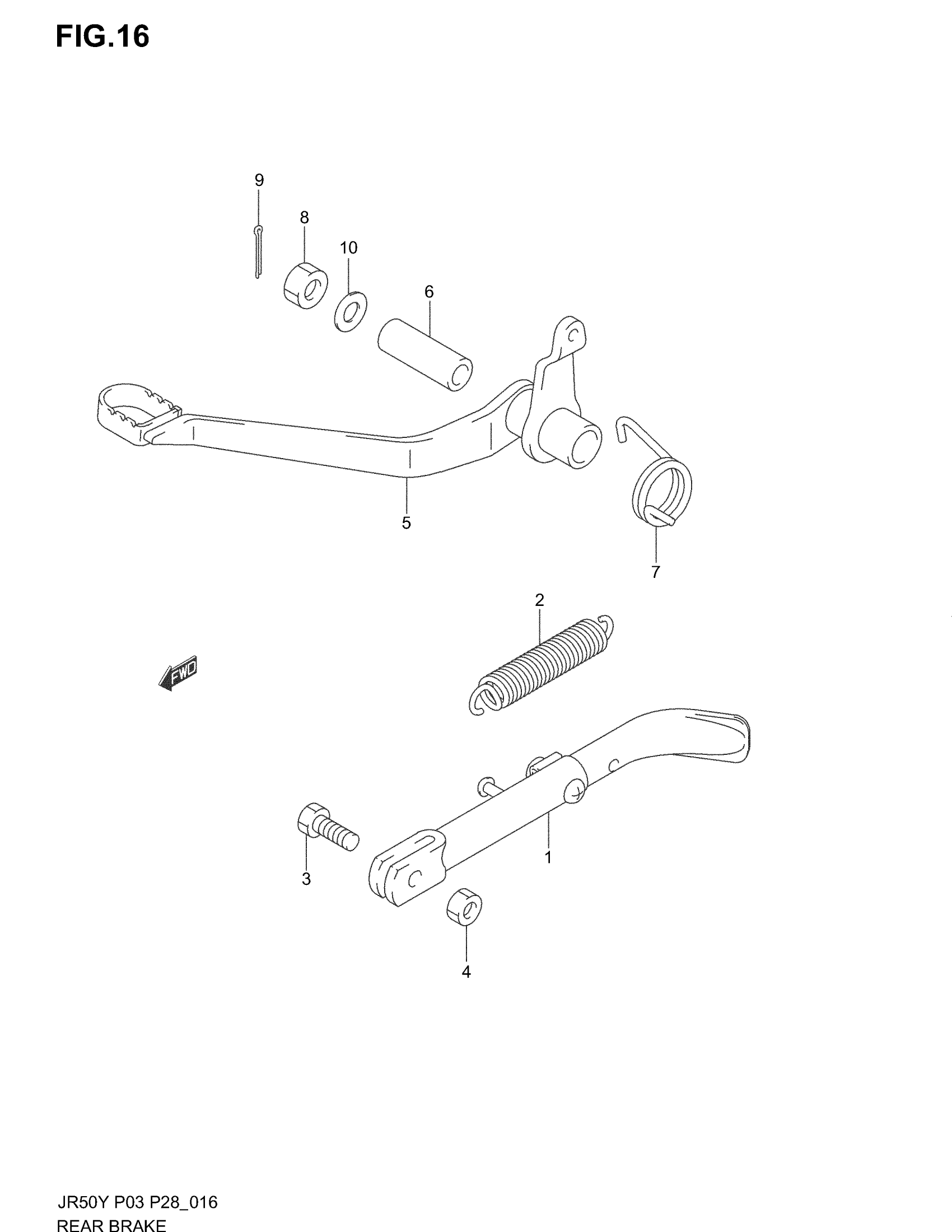

Suzuki JR50 (2004) REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP

42300-04420-019

$309.57

2

SPRING

09443-14017

$2.80

3

BOLT (8X22) | MODEL Y/K1 This part replaces 09100-08145.

09100-08274

$4.12

3

BOLT (8X22) | MODEL K2/K3/K4

09100-08274

$4.12

4

NUT This part replaces 08310-00083.

08310-0008A

$1.86

5

PEDAL, BRAKE

43110-04410

Unavailable

6

SPACER

43181-04411

$5.43

7

SPRING

43182-04410

$6.75

8

NUT

09159-10093

Unavailable

9

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.22

10

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.37
