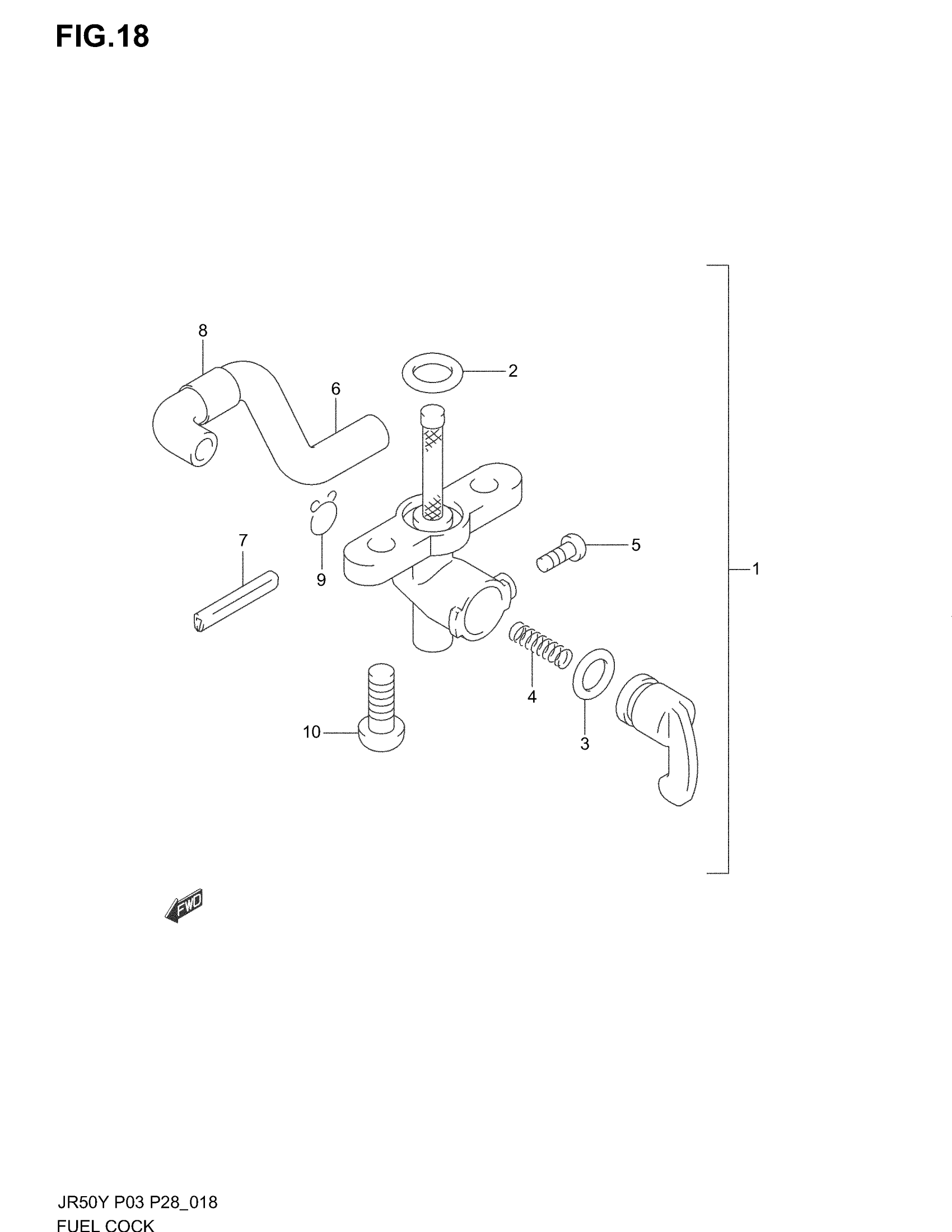

Suzuki JR50 (2004) FUEL COCK Diagram

COCK ASSY, FUEL | Includes Item(s) 2 - 5

44300-04420

$62.53

O RING, JOINT

44348-41370

$1.86

O RING, LEVER

44353-41370

$4.11

SPRING

44357-32470

$2.12

SCREW

44343-41370

$2.50

HOSE, FUEL This part replaces 44421-09AA0.

44421-09AR0

Unavailable

PROTECTOR, NO.1

44461-09AA0

Unavailable

PROTECTOR, NO.2 (L:600!90)

09351-14152-600

$9.73

CLIP (ID:9.4,H:8)

09401-09403

$2.01

BOLT This part replaces 01547-06163.

01547-0616B

$2.43
