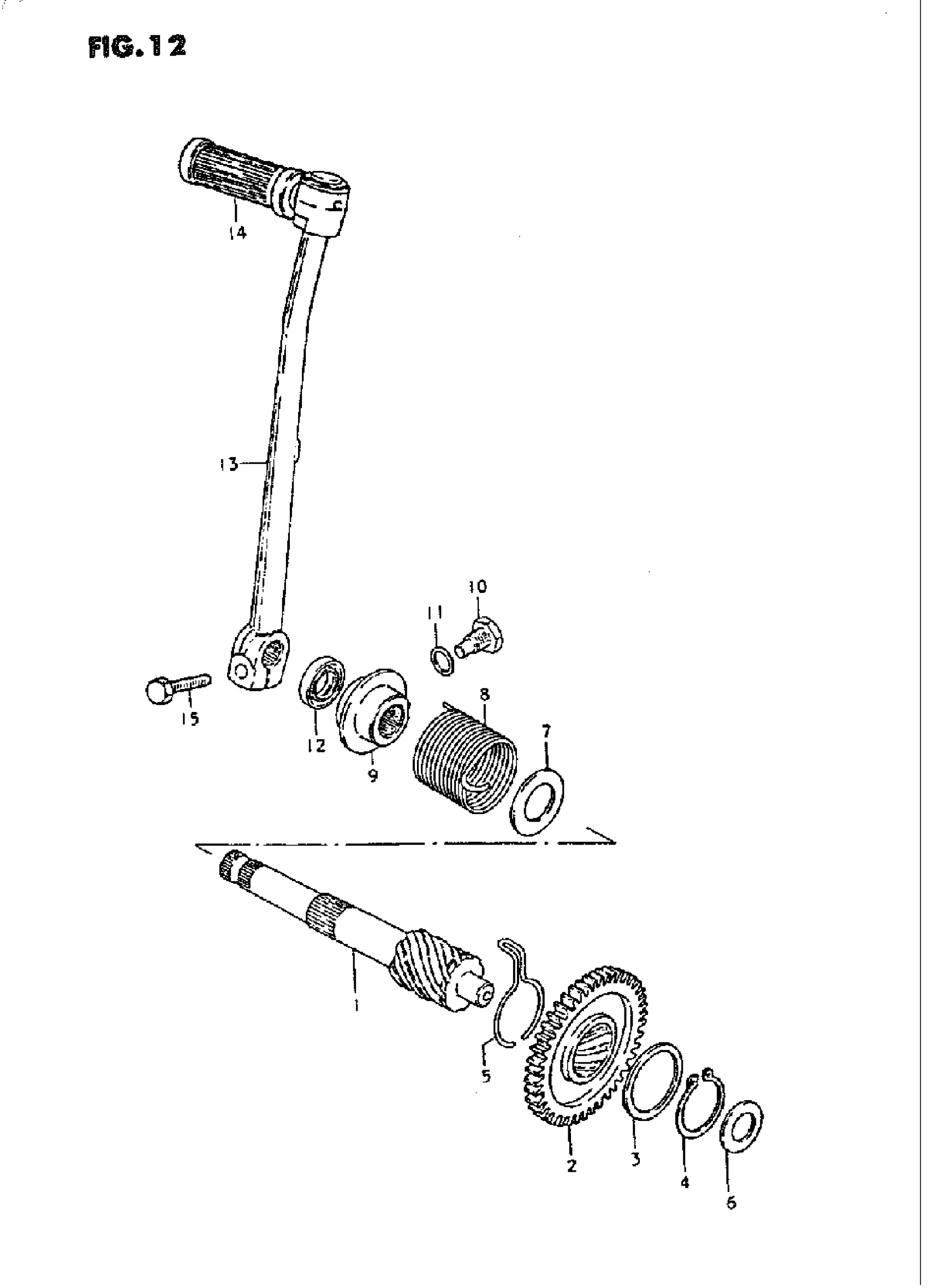

Suzuki JR50 (1995) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-04000

$64.22

2

GEAR, DRIVE (NT:43) This part replaces 26241-04001.

26241-04002

$80.57

3

WASHER (25X32XL)

08211-25321

$2.99

4

CIRCLIP

09380-25009

$3.00

5

RETAINER SPRING

09384-30001

$5.53

6

WASHER

08211-12261

$2.72

7

WASHER (16X30.5XI)

09160-16003

$3.67

8

SPRING

09448-41001

$8.08

9

STOPPER, KICK STARTER This part replaces 26232-04400.

26232-04401

Unavailable

10

BOLT

09135-10003

$3.30

11

GASKET

09168-10002

$1.96

12

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$15.23

13

LEVER ASSY. KICK STARTER | MODEL N/P This part replaces 26300-04401.

26300-04402

Unavailable

13

LEVER ASSY. KICK STARTER | MODEL R/S

26300-04402

Unavailable

14

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$2.97

15

BOLT | MODEL N/P This part replaces 01107-06207.

01500-06207

$1.99

15

BOLT, GEAR SHIFT LINK | MODEL R/S This part replaces 01500-06203.

01500-0620A

$1.77
