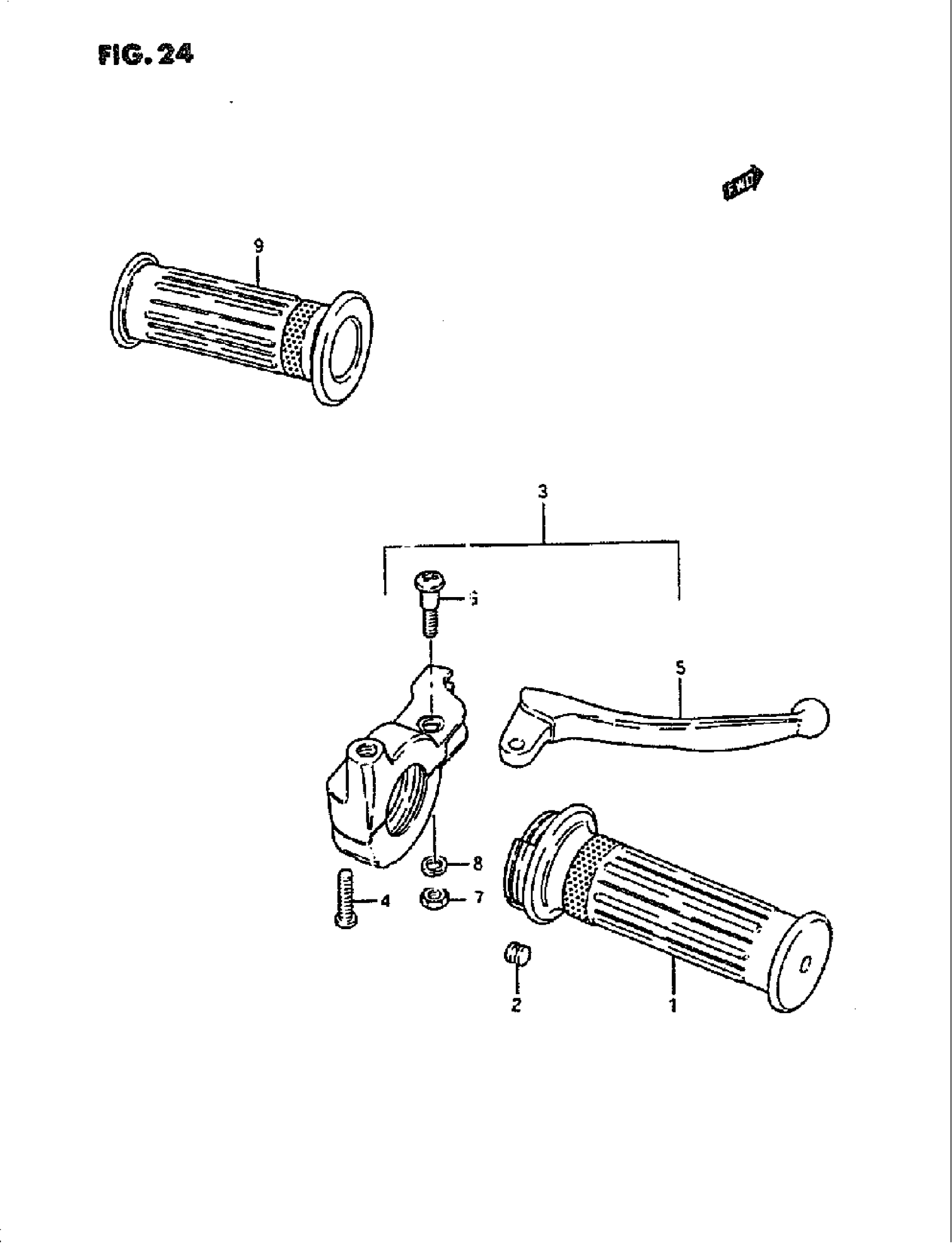

Suzuki JR50 (1995) HANDLE GRIP Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-04410.

57110-04411

$9.29

2

PIECE, END

58631-07010

$3.41

3

BRAKE LEVER ASSY

57300-04420

$18.07

4

SCREW

09125-05065

$5.00

5

LEVER. BRAKE (BLACK)

57421-04420

$13.16

6

BOLT This part replaces 57431-04420.

09139-05068

$2.82

7

NUT | model N/P/R This part replaces 08310-12055.

08310-0005A

$1.90

7

NUT | MODEL S This part replaces 08310-00053.

08310-0005A

$1.90

8

LOCK WASHER | model N/P/R This part replaces 08321-21055.

08321-0105A

$1.89

8

LOCK WASHER | MODEL S This part replaces 08321-01053.

08321-0105A

$1.89

9

GRIP. LH

57211-04410

$4.46
