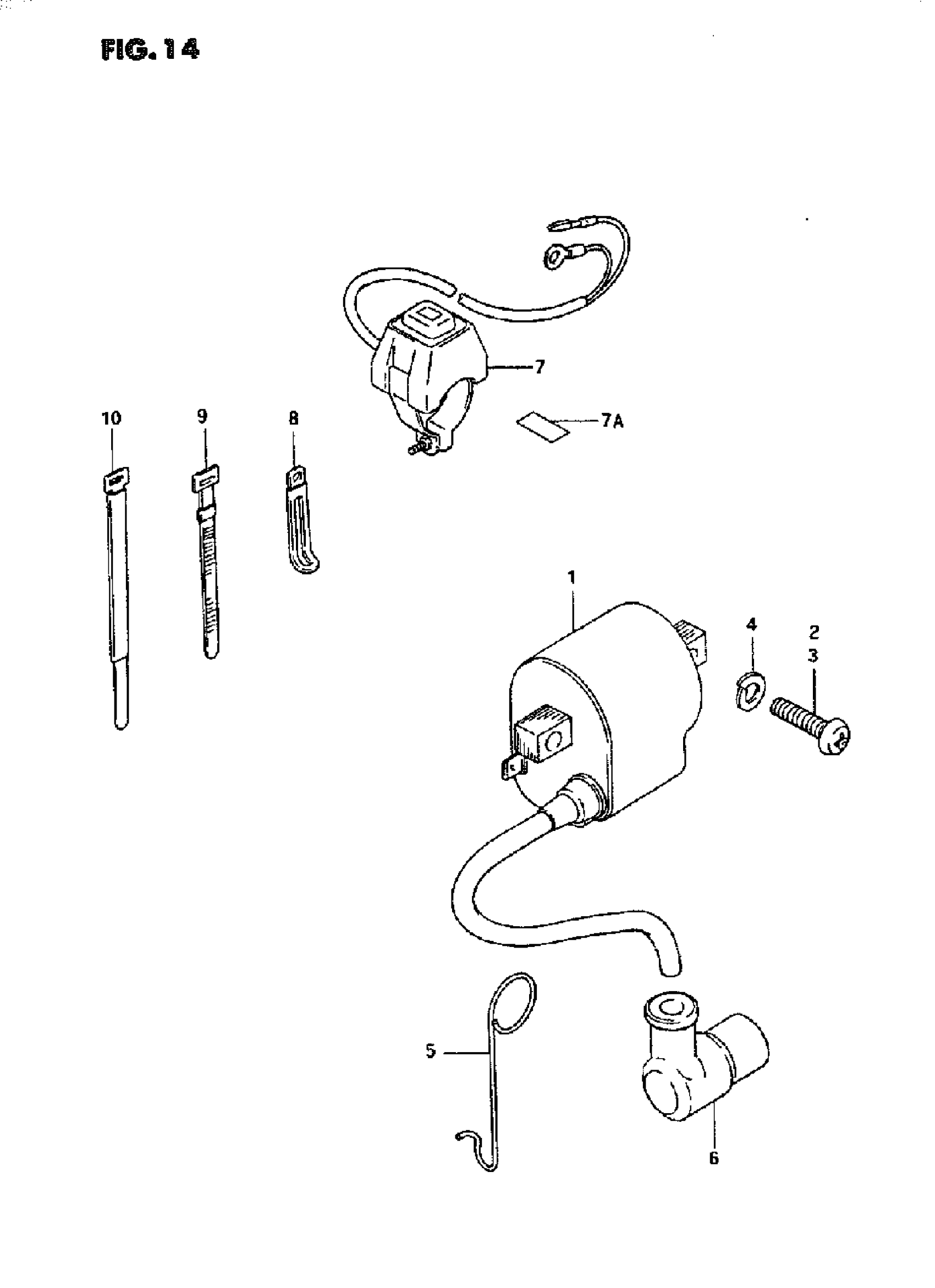

Find the part on the Electrical diagram for your 1995 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki JR50 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNIT & COIL ASSY, IGNITION This part replaces 33410-17310.

33410-35340

1
Out of stock

2

SCREW

02112-06207

1
Out of stock

3

SCREW

02112-06257

1
Out of stock

4

2

$2.28

In stock

5

GUIDE, HIGH TENSION CORD

58626-04410

1
Out of stock

6

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

1
Out of stock

7

SWITCH ASSY, ENGINE STOP This part replaces 37820-27C00.

37820-14X50

1
Out of stock

7

LABEL, ENGINE STOP This part replaces 37238-46400.

37238-46401

1
Out of stock

8

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock

9

BAND (L:120)

09407-12402

1
Out of stock

10

CLAMP This part replaces 09407-18301.

09407-18302

1
Out of stock
