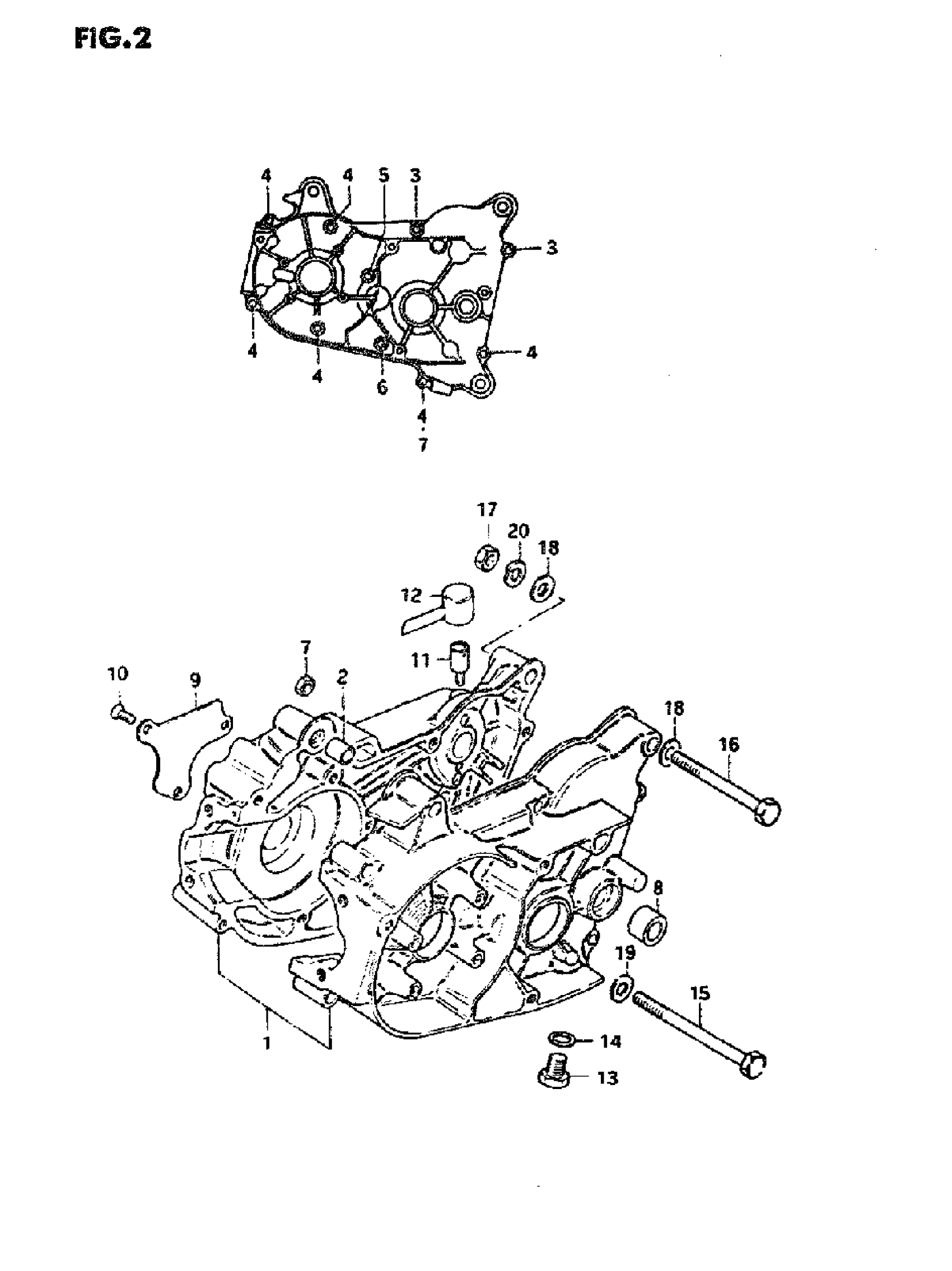

Suzuki JR50 (1995) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11300-04840.

11300-04844

Unavailable

2

PIN

04211-11129

$1.77

3

SCREW | MODEL N/P This part replaces 02112-06308.

02112-06307

$1.99

3

SCREW, SEAT SUPPORT BRK | MODEL R/S This part replaces 02112-06303.

02112-0630A

$1.80

4

SCREW | MODEL N/P

02112-06357

$1.77

4

SCREW | MODEL R/S This part replaces 02112-06353.

02112-0635B

$2.21

5

SCREW | MODEL N/P

02112-06407

$1.80

5

SCREW | MODEL R/S This part replaces 02112-06403.

02112-0640A

$1.98

6

SCREW | MODEL NIP This part replaces 02112-06558.

02112-06557

$2.55

6

SCREW | MODEL R/S This part replaces 02112-06553.

02112-0655B

$2.55

7

.NUT | MODEL N/P This part replaces 08310-12068.

08310-00067

$1.83

7

NUT | MODEL R/S This part replaces 08310-00063.

08310-0006A

$1.83

8

BUSH, COUNTER SHAFT

09304-10005

$6.15

9

PLATE. OIL RESERVOIR

12521-04000

Unavailable

10

SCREW | MODEL N/P This part replaces 02122-04108.

02122-0410A

$1.22

10

SCREW | MODEL R/S This part replaces 02122-04103.

02122-0410A

$1.22

11

PLUG. BREATHER

24821-09001

$10.25

12

BREATHER PLUG C This part replaces 24822-20000.

24822-20001

$4.18

13

PLUG, OIL DRAIN

09247-10001

$2.06

14

GASKET

09168-10002

$1.96

15

BOLT | MODEL N/P This part replaces 01107-08858.

01500-0885B

$4.62

15

BOLT | MODEL R This part replaces 01500-08853.

01500-0885B

$4.62

15

BOLT | MODEL S This part replaces 01500-08903.

01500-0890B

$4.22

16

BOLT | MODEL N/P This part replaces 01107-08708.

01500-0870B

$4.45

16

BOLT | MODEL R/S This part replaces 01500-08703.

01500-0870B

$4.45

17

NUT | MODEL N/P This part replaces 08310-12088.

08310-00087

$1.83

17

NUT | MODEL R/S This part replaces 08310-00083.

08310-0008A

$1.86

18

WASHER | MODEL NIP This part replaces 08322-11088.

08322-01087

$1.86

18

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$2.18

19

WASHER | MODEL N/P This part replaces 09160-08030.

09160-08128

$3.05

19

WASHER | MODEL R/S This part replaces 09160-08080.

09160-08128

$3.05

20

.LOCK WASHER | MODEL N/P This part replaces 08321-21088.

08321-01087

$1.83

20

LOCK WASHER | MODEL R/S This part replaces 08321-01083.

08321-0108A

$1.83
