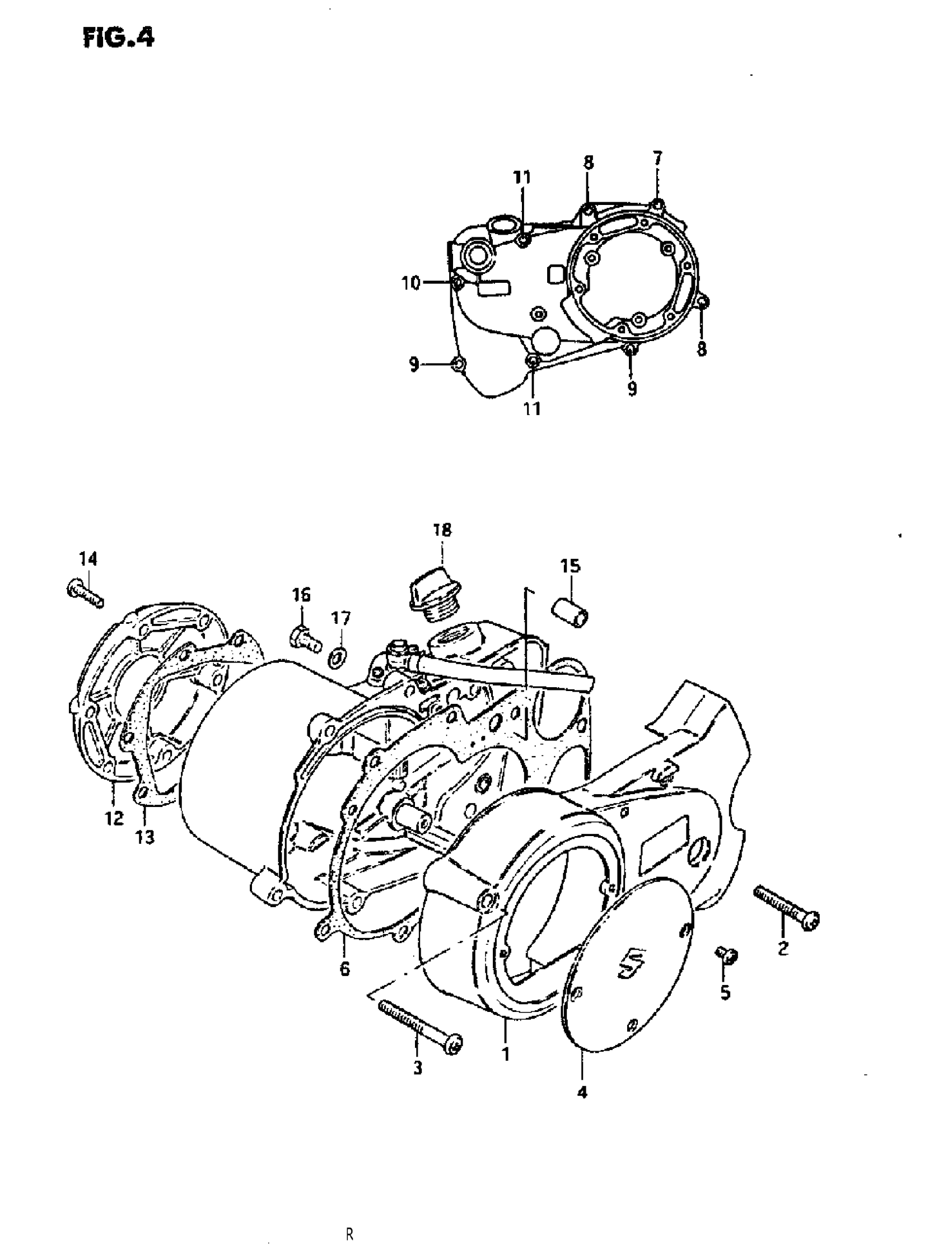

Suzuki JR50 (1995) CRANKCASE COVER Diagram

#

Description
Price

1

COVER. MAGNETO

11351-04400

$130.07

2

SCREW | MODEL N/P This part replaces 02112-06355.

02112-0635B

$2.29

2

SCREW | MODEL R/S This part replaces 02112-06353.

02112-0635B

$2.29

3

SCREW | MODEL N/P This part replaces 02112-06455.

02112-0645B

$2.29

3

SCREW | MODEL R/S This part replaces 02112-06453.

02112-0645B

$2.29

4

CAP, MAGNETO INSPECTION This part replaces 11381-04400.

11381-04401

Unavailable

5

SCREW | MODEL N/P This part replaces 02112-04065.

02112-0406B

$1.61

5

SCREW | MODEL R/S This part replaces 02112-04063.

02112-0406B

$1.61

6

GASKET, CLUTCH COVER

11482-04010

$17.23

7

SCREW | MODEL N/P This part replaces 02112-06205.

02112-0620A

$1.49

7

SCREW | MODEL R/S This part replaces 02112-06203.

02112-0620A

$1.49

8

SCREW | MODEL N/P This part replaces 02112-06255.

02112-0625A

$1.85

8

SCREW | MODEL R/S This part replaces 02112-06253.

02112-0625A

$1.85

9

SCREW, SEAT SUPPORT BRK | MODEL N/P This part replaces 02112-06305.

02112-0630A

$1.86

9

SCREW, SEAT SUPPORT BRK | MODEL R/S This part replaces 02112-06303.

02112-0630A

$1.86

10

SCREW | MODEL N/P This part replaces 02112-06455.

02112-0645B

$2.29

10

SCREW | MODEL R/S This part replaces 02112-06453.

02112-0645B

$2.29

11

SCREW | MODEL N/P This part replaces 02112-06504.

02112-0650B

$2.53

11

SCREW | MODEL R/S This part replaces 02112-06503.

02112-0650B

$2.53

12

CAP, CLUTCH RELEASE This part replaces 11387-04400.

11387-04401

Unavailable

13

GASKET, RELEASE CAP | MODEL N This part replaces 11495-04400.

11495-04410

$5.82

13

GASKET, RELEASE CAP | MODEL P/R/S

11495-04410

$5.82

14

SCREW | MODEL N/P This part replaces 02112-06205.

02112-0620A

$1.49

14

SCREW | MODEL R/S This part replaces 02112-06203.

02112-0620A

$1.49

15

PIN

04211-09129

$1.70

16

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.43

17

GASKET

09168-06001

$1.33

18

PLUG SET This part replaces 09200-20810.

09200-20811

$3.74
