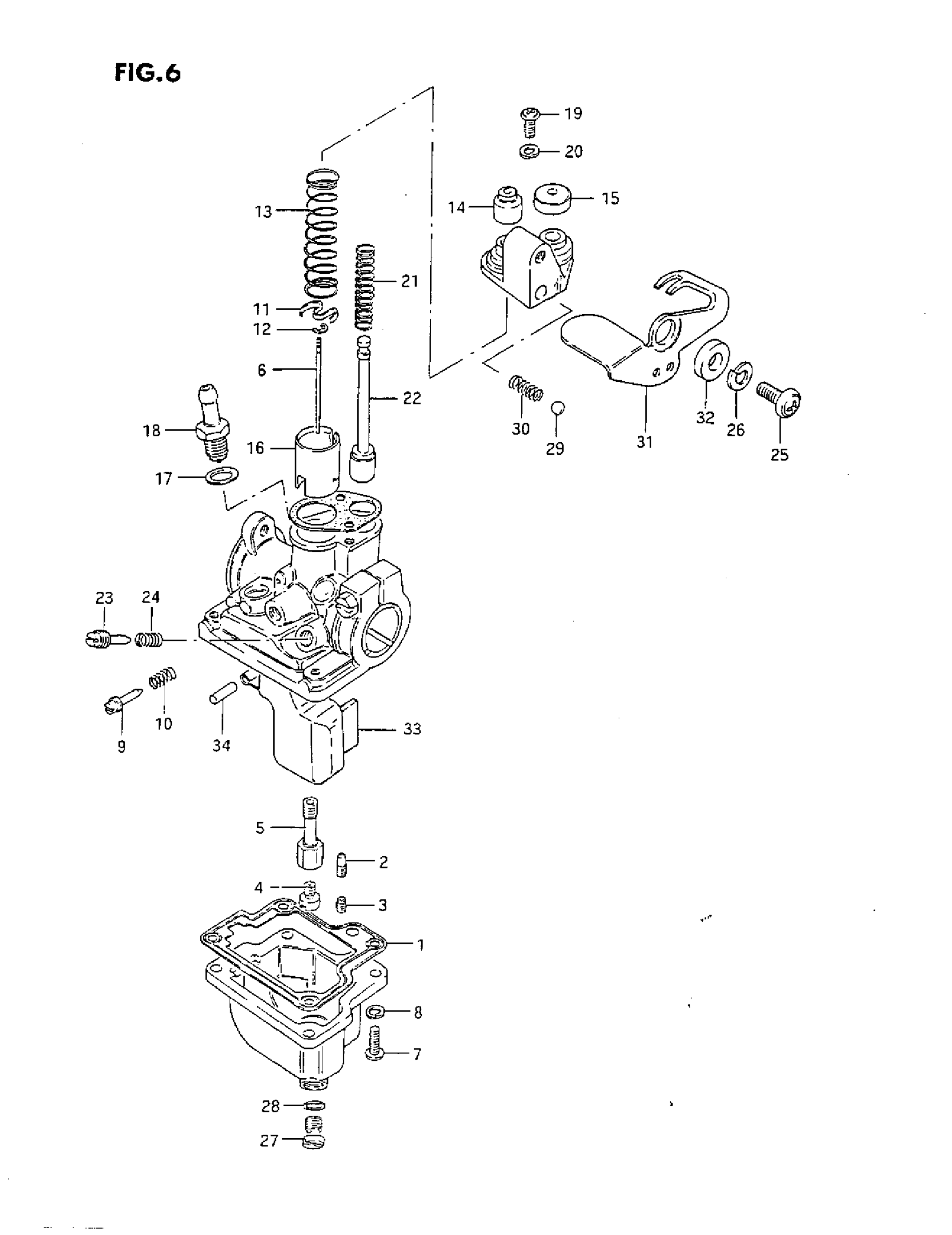

Suzuki JR50 (1993) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-04410

Unavailable

1

GASKET, FLOAT CHAMBER

13251-04110

$5.04

2

JET, PILOT NO.1 (15) This part replaces 09492-15002.

09492-15015

$18.23

3

JET, PILOT NO.2

09492-15009

$10.70

4

JET, MAIN (52.5)

09491-52002

Unavailable

5

JET, NEEDLE (E-4)

09494-00210

Unavailable

6

NEEDLE, JET (3E3-3)

13383-19010

$11.68

7

SCREW This part replaces 02112-04126.

02112-0412A

$1.24

8

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.86

9

SCREW, THROTTLE STOP

13267-01010

$8.48

10

SPRING, STOP SCREW

13268-01010

$4.11

11

SEAT, THROTTLE VALVE SPRING

13581-04010

$8.80

12

E RING | MODEL N/P This part replaces 13394-12110.

13394-40D00

$5.97

12

CLIP, NEEDLE | MODEL R

13394-40D00

$5.97

13

SPRING, THROTTLE VALVE

13573-01010

$6.38

14

.CAP This part replaces 13681-04010.

13681-04011

$4.51

15

CAP, STARTER

13682-98010

$4.05

16

VALVE, THROTTLE (CA:3.0)

13551-04110

Unavailable

17

GASKET, VALVE SEAT

13663-31010

$2.80

18

VALVE, NEEDLE

13370-04110

$21.81

19

SCREW This part replaces 02112-04106.

02112-0410A

$1.30

20

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.86

21

SPRING, STARTER VALVE

13417-18630

$6.77

22

VALVE, STARTER

13411-04410

$19.03

23

SCREW, PILOT AIR

13269-04010

$15.43

24

SPRING

13268-01010

$4.11

25

SCREW This part replaces 02112-06126.

02112-0612A

$1.43

26

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

27

PLUG, DRAIN

13247-05010

$4.81

28

GASKET, DRAIN PLUG

13249-05010

$1.93

29

BALL

13435-33110

$2.21

30

SPRING

13434-30650

$3.38

31

LEVER, STARTER

13413-04410

Unavailable

32

RING

13424-30650

$5.01

33

FLOAT

13252-04011

$21.81

34

PIN, FLOAT

13254-04010

$4.92
