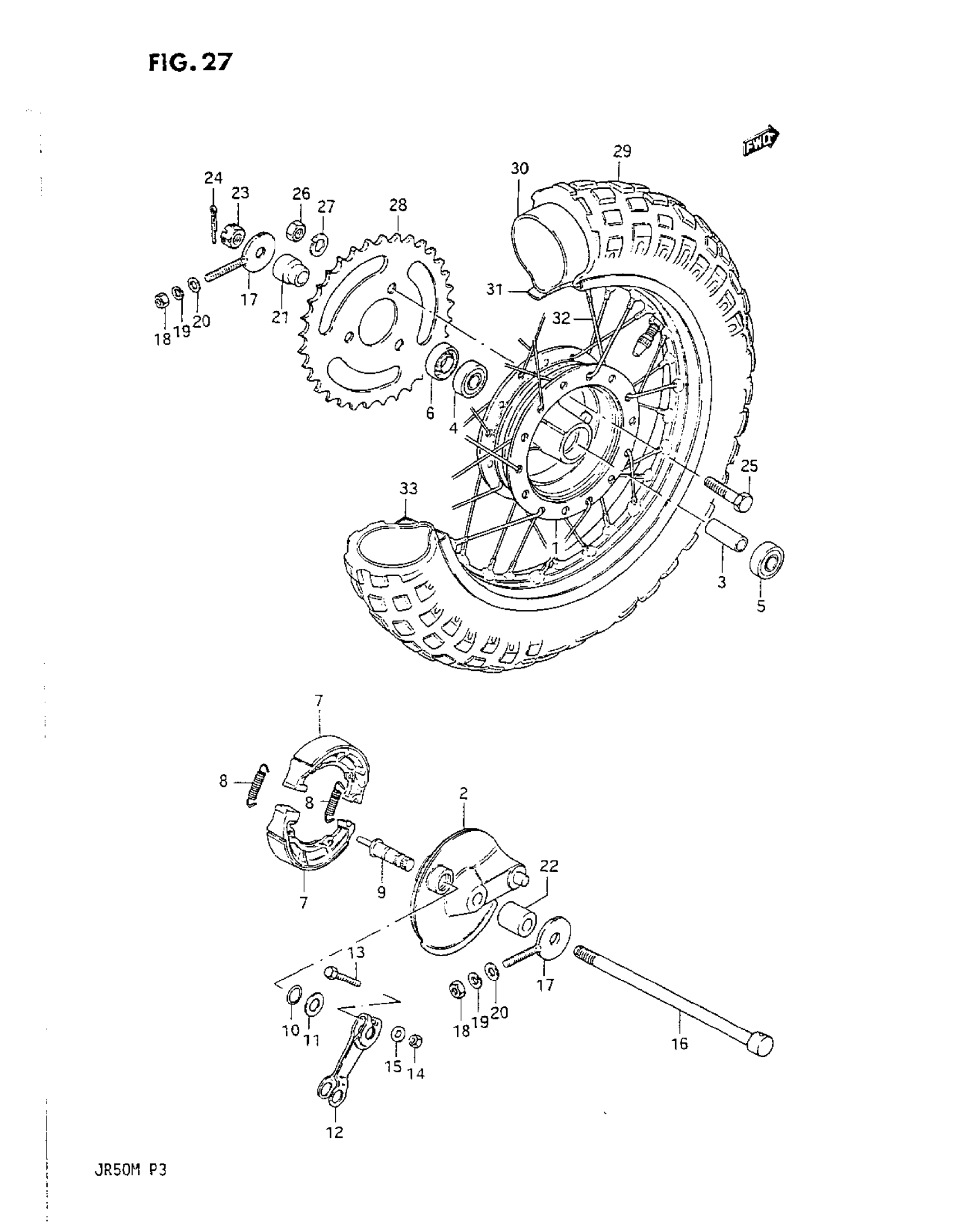

Suzuki JR50 (1987) REAR WHEEL Diagram

HUB, REAR WHEEL

64110-04400

$187.67

PANEL, BRAKE ANCHOR

64210-04400

Unavailable

SPACER (10.2X16X55) This part replaces 09180-10013.

09180-10149

$7.28

BEARING (10X26X8) This part replaces 08113-60000.

09262-10015

$18.50

BEARING, RH

08143-60007

$21.52

OIL SEAL

09284-15004

$4.35

SHOE SET, BRAKE | MODEL F TO 54410-04002 WITH 09443-07025 This part replaces 54410-04001.

64400-04811

$24.22

SHOE SET, BRAKE | MODEL G/H/J/K/L/M This part replaces 54410-04002.

64400-04811

$24.22

SPRING | MODEL F FOR 54410-04001 This part replaces 09443-07001.

09443-07025

$1.68

SPRING (L:33) | MODEL G/H/J/K/L/M FOR 54410-04002

09443-07025

$1.68

CAM, BRAKE This part replaces 54441-04000.

54441-04001

$14.34

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

$3.33

WASHER This part replaces 09160-10026.

09160-10121

$2.06

LEVER, BRAKE CAM

64451-04000

$8.74

BOLT This part replaces 01107-05258.

01500-0525A

$1.93

NUT This part replaces 08310-11058.

08310-00057

$1.83

WASHER This part replaces 08322-21057.

08322-01057

$1.86

AXLE, REAR

54711-04410

$23.07

ADJUSTER, CHAIN

61411-04000

$5.46

.NUT This part replaces 08310-11067.

08310-00067

$1.83

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83

WASHER This part replaces 08322-21067.

08322-01067

$1.86

SPACER, LH (L:22)

64751-04410

$6.65

SPACER, RH (10X20X21)

64741-04410

$5.28

NUT This part replaces 08314-31108.

08314-3110A

$2.50

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

BOLT This part replaces 09105-08008.

09105-08011

$2.46

NUT This part replaces 08310-12088.

08310-00087

$1.83

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

SPROCKET, REAR (NT:28)

64511-04411

$32.33

TIRE, REAR (2.50-10)

55100-04410

Unavailable

TUBE, INNER

55200-04410

$25.53

PROTECTOR

55261-04410

$6.69

SPOKE SET

55300-04820

$40.19

RIM, WHEEL (1.4X10)

55311-04410

$234.18
