1987 Suzuki JR50 Gear Shifting Diagram

← All diagrams

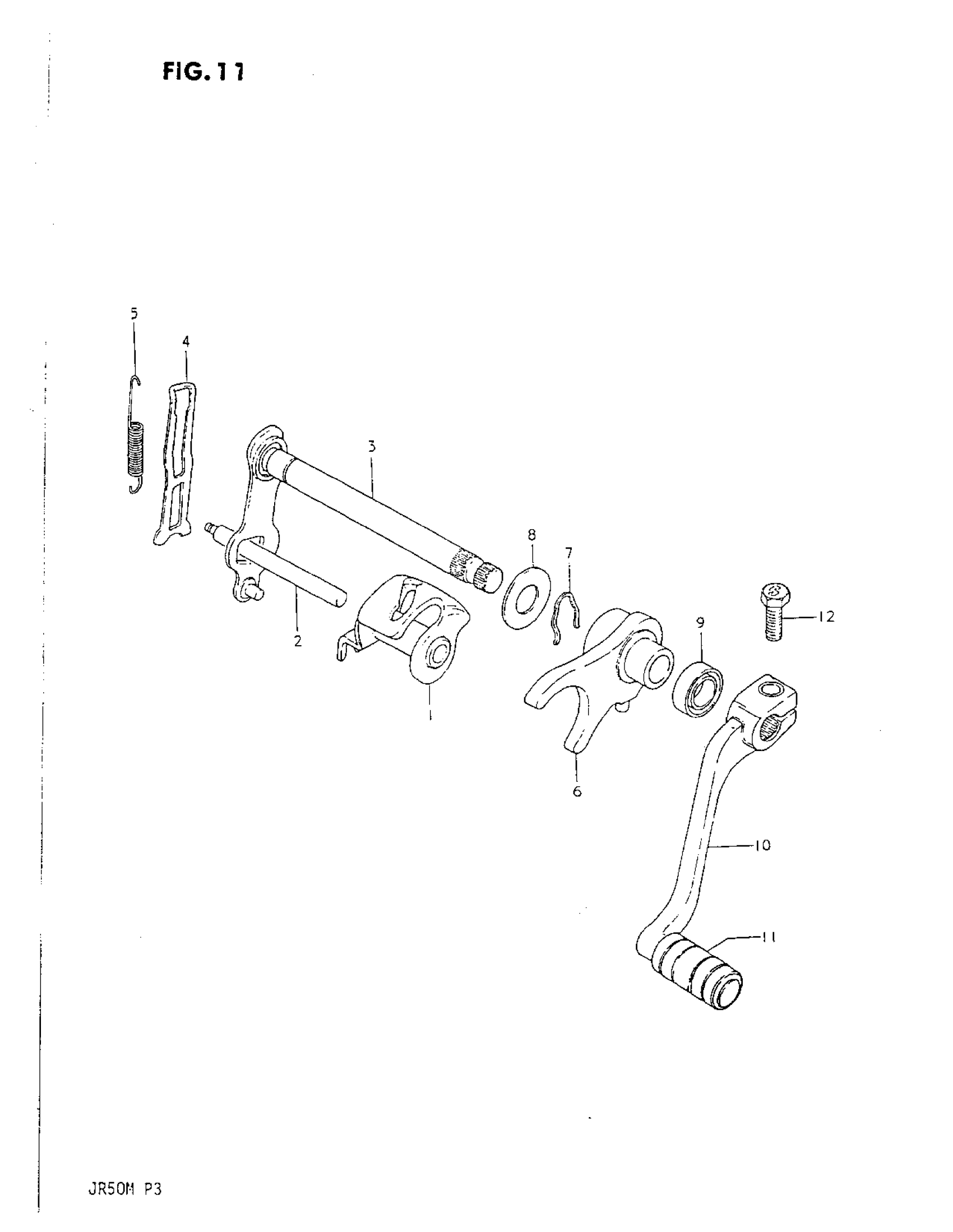

Find the part on the Gear Shifting diagram for your 1987 Suzuki JR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki JR50 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, GEAR SHIFTING This part replaces 25310-04000.

25310-04001

1
Out of stock

2

SHAFT, CAM

25411-04000

1
Out of stock

3

SHAFT, GEAR SHIFTING This part replaces 25510-04400.

25510-04401

1
Out of stock

4

ARM, CAM STOPPER

25352-04000

1
Out of stock

5

SPRING

09443-08008

1
Out of stock

6

FORK, GEAR SHIFTING This part replaces 25210-04001.

25211-04010

1
Out of stock

7

CIRCLIP This part replaces 09384-12001.

08331-3112A

1
Out of stock

8

WASHER

08211-12261

1
Out of stock

9

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

10

LEVER ASSY. GEAR SHIFTING This part replaces 25600-29300.

25600-29310

1
Out of stock

11

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

12

BOLT This part replaces 09100-06091.

01500-06207

1
Out of stock
