2018 Kawasaki Jet Ski® Ultra® 310X Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2018 Kawasaki Jet Ski® Ultra® 310X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

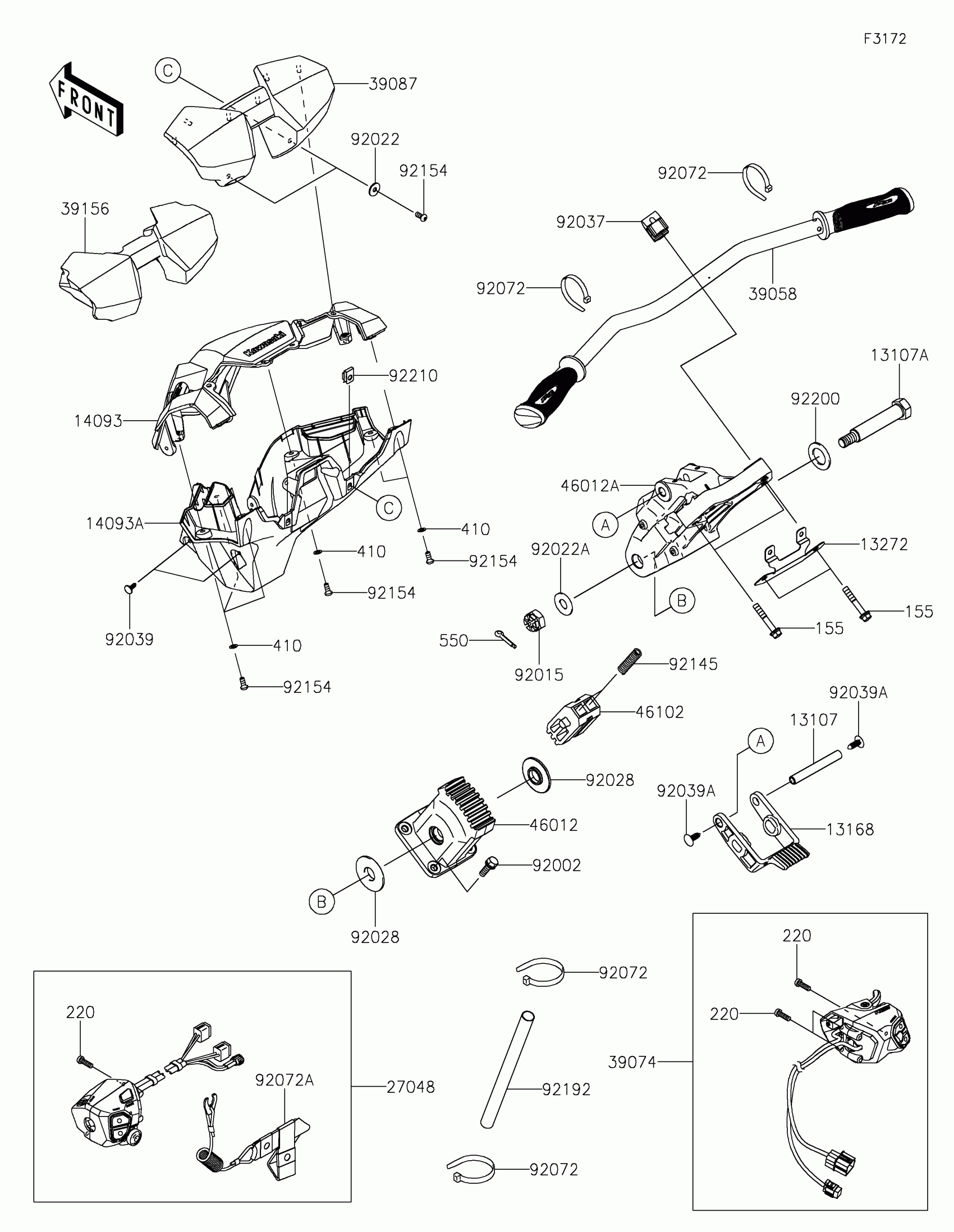

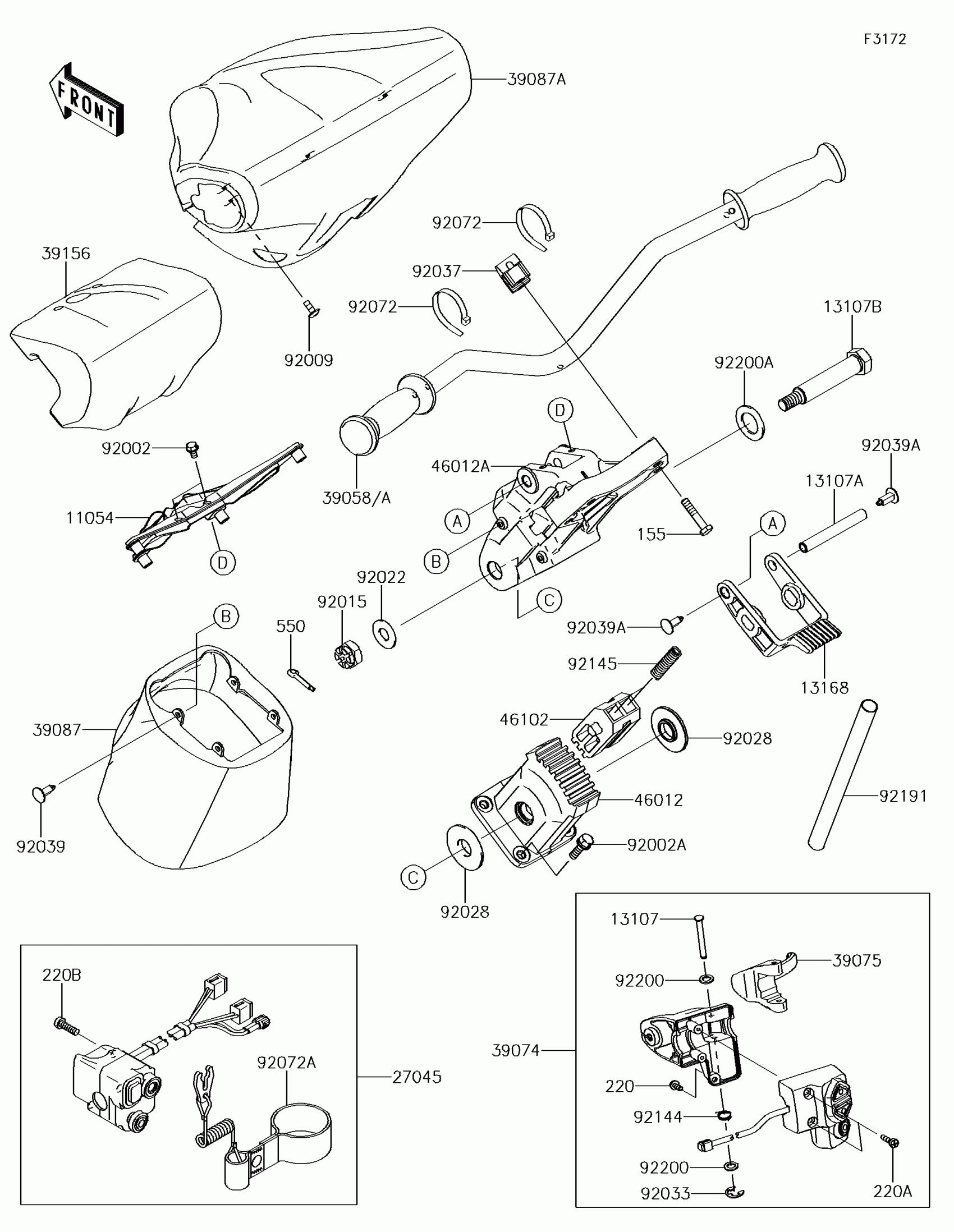

2018 Kawasaki Jet Ski® Ultra® 310X Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,HANDLE PAD

11054-3710

1
Out of stock

13107

SHAFT

13107-3766

1
Out of stock

13107A

SHAFT

13107-3795

1
Out of stock

13107B

SHAFT,HANDLE HOLDER PIVOT

13107-3803

1
Out of stock

13168

LEVER

13168-3754

1
Out of stock

155

BOLT-WSP-SMALL,8X50

155R0850

1
Out of stock

220

SCREW-PAN-CROS,5X14

220R0514

1
Out of stock

220A

SCREW-PAN-CROS,5X25

220R0525

1
Out of stock

220B

SCREW-PAN-CROS,5X30

220R0530

1
Out of stock

27045

SWITCH-ASSY,STOP&START

27045-3767

1
Out of stock

39058

HANDLE-COMP,F.BLACK

39058-0022-6Z

1
Out of stock

39074

LEVER-ASSY-THROTTLE

39074-3729

1
Out of stock

39075

LEVER-THROTTLE

39075-3715

1
Out of stock

39087

PAD-HANDLE,F.BLACK

39087-0007-6Z

1
Out of stock

39087A

PAD-HANDLE,F.BLACK

39087-3735-6Z

1
Out of stock

39156

PAD

39156-1752

1
Out of stock

46012

HOLDER-HANDLE,LWR

46012-3730

1
Out of stock

46012A

HOLDER-HANDLE,UPP

46012-3733

1
Out of stock

46102

ROD,HANDLE POSITION

46102-3733

1
Out of stock

550

PIN-COTTER,3X35

550S3035

1
Out of stock

92002

BOLT,6X12

92002-3763

1
Out of stock

92002A

BOLT,8X25

92002-3774

1
Out of stock

92009

SCREW,6X20

92009-3781

1
Out of stock

92015

NUT,CASTLE,14MM

92015-3805

1
Out of stock

92022

WASHER,15X34X2.0

92022-3738

1
Out of stock

92028

BUSHING

92028-3743

1
Out of stock

92033

RING-SNAP

92033-3723

1
Out of stock

92037

CLAMP,HANDLEBAR

92037-503

1
Out of stock

92039

RIVET

92039-3787

1
Out of stock

92039A

RIVET

92039-3788

1
Out of stock

92072

BAND,L=188.85

92072-0105

1
Out of stock

92072A

BAND,TETHER SWITCH

92072-3809

1
Out of stock

92144

SPRING

92144-3749

1
Out of stock

92145

SPRING

92145-3723

1
Out of stock

92191

TUBE,22X24X200

92191-3792

1
Out of stock

92200

WASHER

92200-3738

1
Out of stock

92200A

WASHER,21X34X2

92200-3802

1
Out of stock
