2023 Kawasaki Jet Ski® Ultra® 310LX-S Control Diagram

← All diagrams

Find the part on the Control diagram for your 2023 Kawasaki Jet Ski® Ultra® 310LX-S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

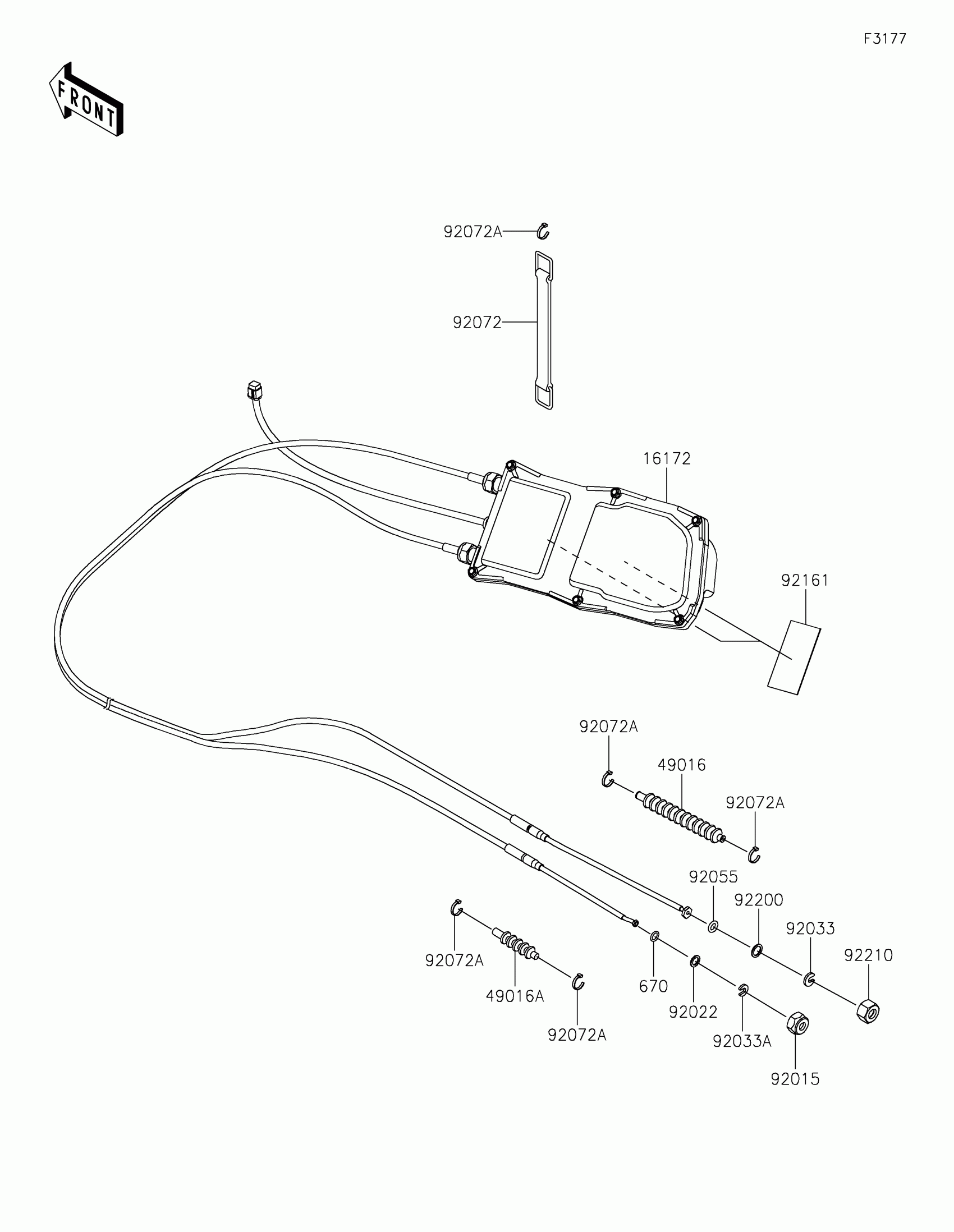

2023 Kawasaki Jet Ski® Ultra® 310LX-S Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16172

ACTUATOR,JET PUMP

16172-0046

1

$1,476.85

In stock

49016

COVER-SEAL

49016-0695

1

$5.68

In stock

49016A

1

$3.26

In stock

92015

NUT,20MM

92015-526

1

$30.30

In stock

92022

WASHER

92022-535

1
Out of stock

92033

RING-SNAP

92033-3735

1

$6.12

In stock

92033A

1

$5.45

In stock

92055

RING-O

92055-3778

1

$1.20

In stock

92072

BAND,BATTERY

92072-3879

1

$36.42

In stock

92072A

BAND,L=100.08

92072-3882

1

$1.71

In stock

92161

DAMPER

92161-3728

1

$4.92

In stock

92200

WASHER,14.5X20X1.5

92200-3793

1
Out of stock

92210

NUT,22MM

92210-3772

1
Out of stock

670

O RING,11MM

670B2011

1
Out of stock
