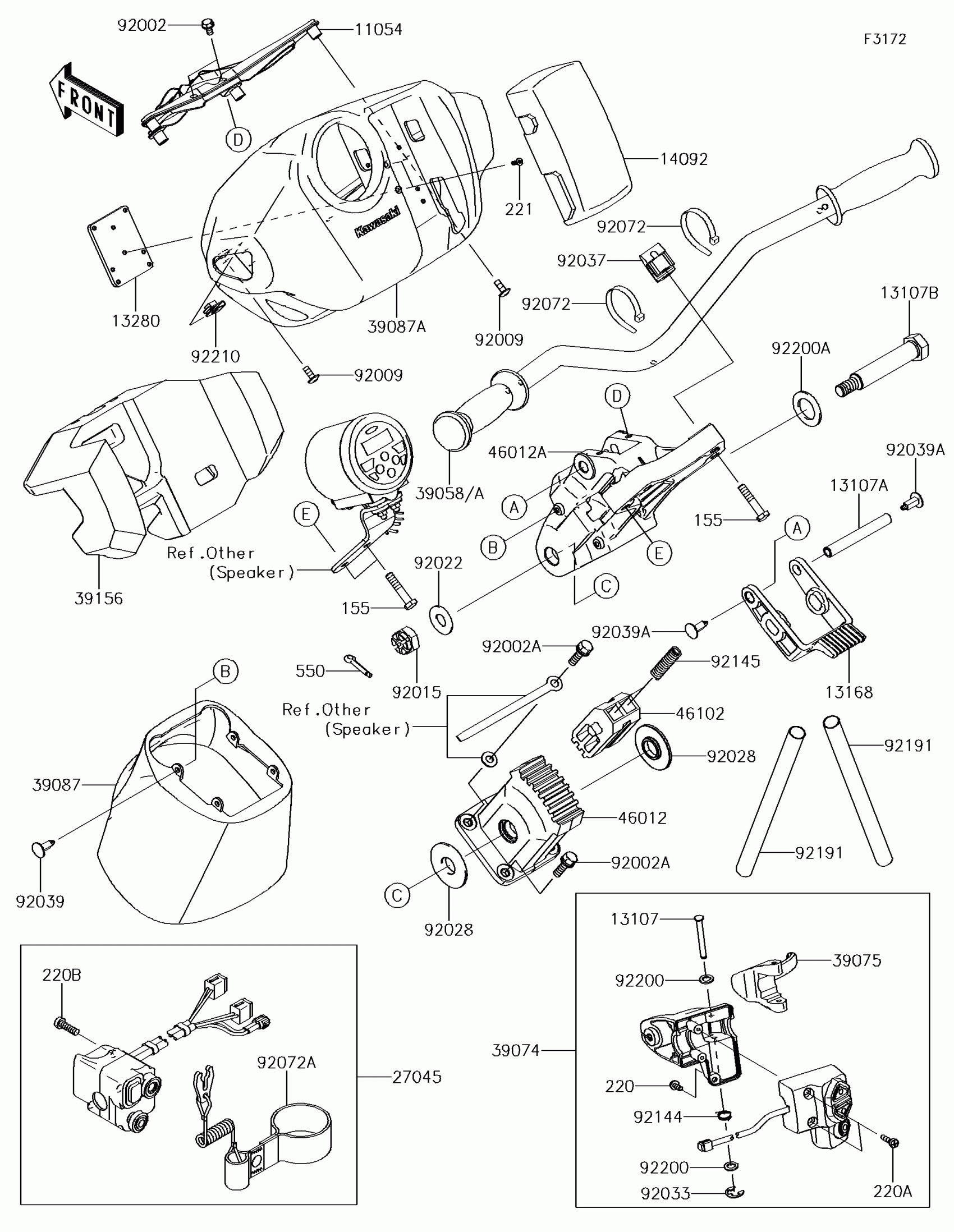

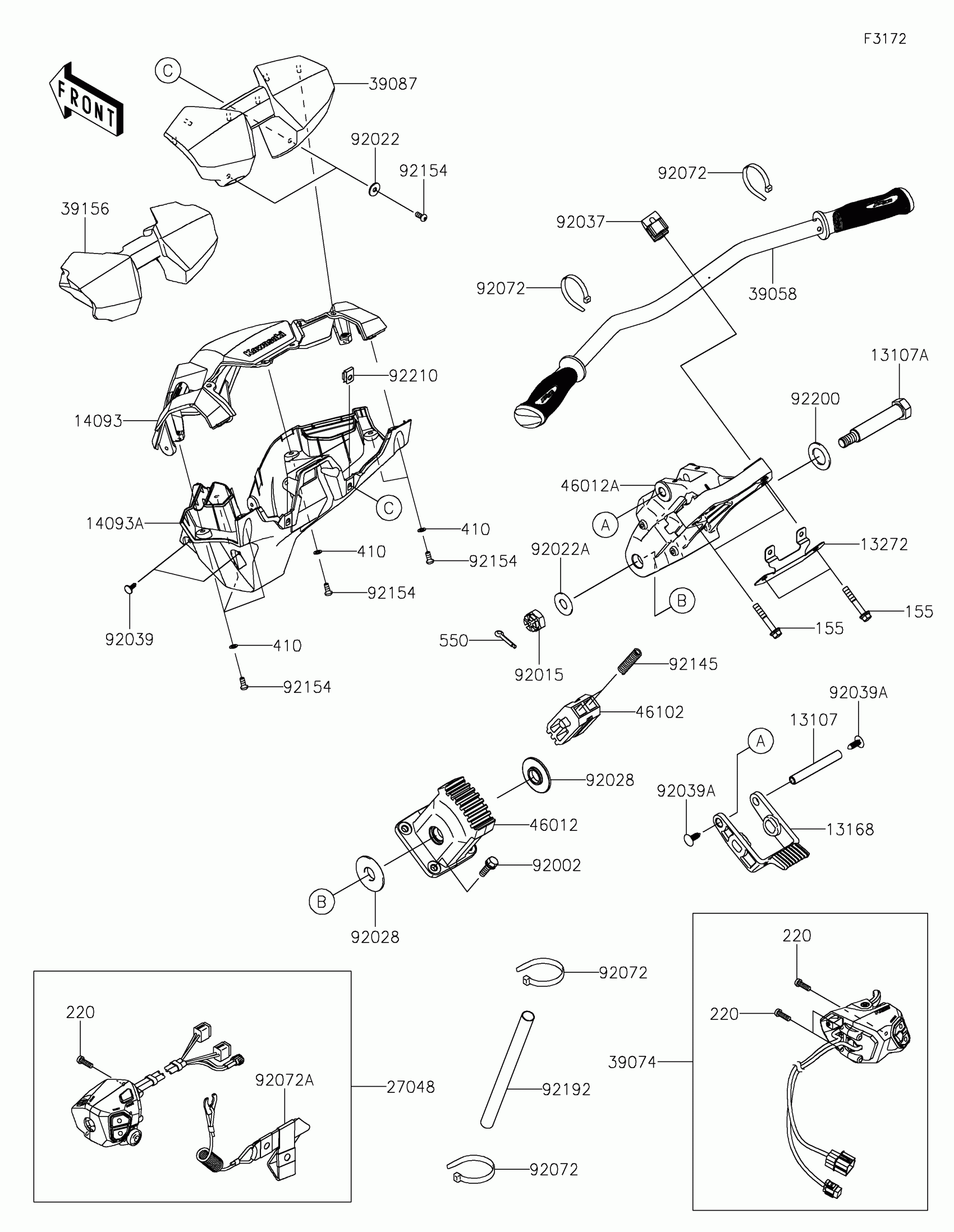

Kawasaki JET SKI® ULTRA® 310LX Handlebar Diagram

#

Description
Price

11054

BRACKET,HANDLE PAD

11054-3710

$20.25

13107

SHAFT

13107-3766

$9.24

13107A

SHAFT

13107-3795

$32.46

13107B

SHAFT,HANDLE HOLDER PIVOT

13107-3803

$74.62

13168

LEVER

13168-3754

$12.07

13280

HOLDER

13280-0734

$12.44

14092

COVER,GPS HOLDER,F.BLACK

14092-1144-6Z

$32.84

155

BOLT-WSP-SMALL,8X50

155R0850

$4.27

220

SCREW-PAN-CROS,5X14

220R0514

$3.29

220A

SCREW-PAN-CROS,5X25

220R0525

$4.23

220B

SCREW-PAN-CROS,5X30

220R0530

$4.32

27045

SWITCH-ASSY,STOP&START

27045-3767

$436.76

39058

HANDLE-COMP,F.BLACK

39058-0022-6Z

$164.17

39074

LEVER-ASSY-THROTTLE

39074-3729

$474.60

39075

LEVER-THROTTLE

39075-3715

$41.65

39087

PAD-HANDLE,F.BLACK

39087-0007-6Z

$33.69

39087A

PAD-HANDLE,F.BLACK

39087-0009-6Z

$174.93

39156

PAD,HANDLE,INNER

39156-1738

$33.15

46012

HOLDER-HANDLE,LWR

46012-3730

$104.90

46012A

HOLDER-HANDLE,UPP

46012-3733

$70.52

46102

ROD,HANDLE POSITION

46102-3733

$50.60

92002

BOLT,6X12

92002-3763

$3.57

92002A

BOLT,8X25

92002-3774

$7.76

92009

SCREW,6X20

92009-3781

$4.93

92015

NUT,CASTLE,14MM

92015-3805

$36.18

92022

WASHER,15X34X2.0

92022-3738

$4.93

92028

BUSHING

92028-3743

$8.04

92033

RING-SNAP

92033-3723

$2.64

92037

CLAMP,HANDLEBAR

92037-503

$15.14

92039

RIVET

92039-3787

$2.98

92039A

RIVET

92039-3788

$2.34

92072

BAND,L=188.85

92072-0105

$1.30

92072A

BAND,TETHER SWITCH

92072-3809

$58.43

92144

SPRING

92144-3749

$3.81

92145

SPRING

92145-3723

$4.92

92191

TUBE,22X24X200

92191-3792

$31.05

92200

WASHER

92200-3738

$2.66

92200A

WASHER,21X34X2

92200-3802

$5.42

92210

NUT,6MM

92210-3768

$4.39

221

SCREW-CSK-CROSS

221R0412

Unavailable

550

PIN-COTTER,3X35

550S3035

$4.02
