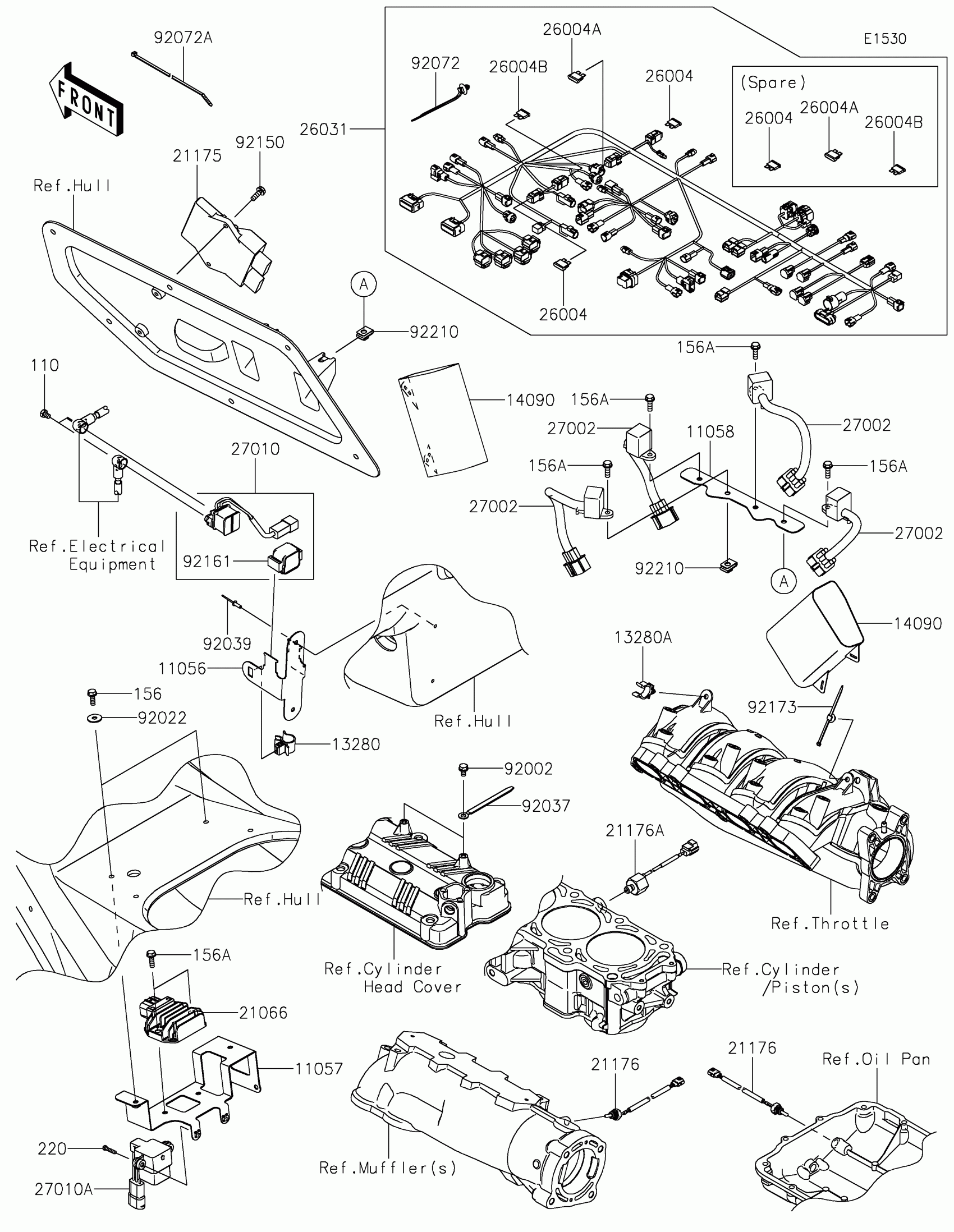

Kawasaki JET SKI® ULTRA® 310LX Fuel Injection Diagram

Description

Price

110

BOLT,6X8

110R0608

$2.15

11054

BRACKET,ECU&RELAY

11054-3743

$12.75

11056

BRACKET,RELAY

11056-2820

$13.64

11056A

BRACKET,REGULATOR&VDS

11056-3702

$113.83

11056B

BRACKET,SWITCH

11056-3855

$19.15

13280

HOLDER

13280-0789

$1.47

13280A

HOLDER,HARNESS

13280-3760

$3.25

156

BOLT-WP,6X20

156R0620

$2.92

21066

REGULATOR-VOLTAGE

21066-3718

Unavailable

21175

CONTROL UNIT-ELECTRONIC

21175-0954

$994.66

21176

SENSOR,TEMP

21176-0741

$85.48

21176A

SENSOR,KNOCK

21176-0770

$125.33

220

SCREW-PAN-CROS,4X20

220R0420

$2.00

26006

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$4.16

26031

HARNESS,MAIN

26031-1699

$684.61

27002

RELAY-ASSY

27002-3703

$46.49

27002A

RELAY-ASSY

27002-3704

$138.81

27010

SWITCH

27010-0710

$152.82

27010A

SWITCH,VDS

27010-3785

$264.90

92002

BOLT,6X16

92002-3728

$3.38

92002A

BOLT,6X12

92002-3763

$3.72

92022

WASHER,6.5X20X1.5

92022-3710

$2.92

92037

CLAMP,L=100

92037-3736

$4.85

92039

RIVET

92039-3714

$0.92

92039A

RIVET

92039-3788

$2.71

92072

BAND,L=188.85

92072-0105

$1.51

92072A

BAND,L=372.24

92072-3883

$1.39

92150

BOLT,6X18

92150-3729

$3.72

92161

DAMPER,SWITCH

92161-1625

$5.86
