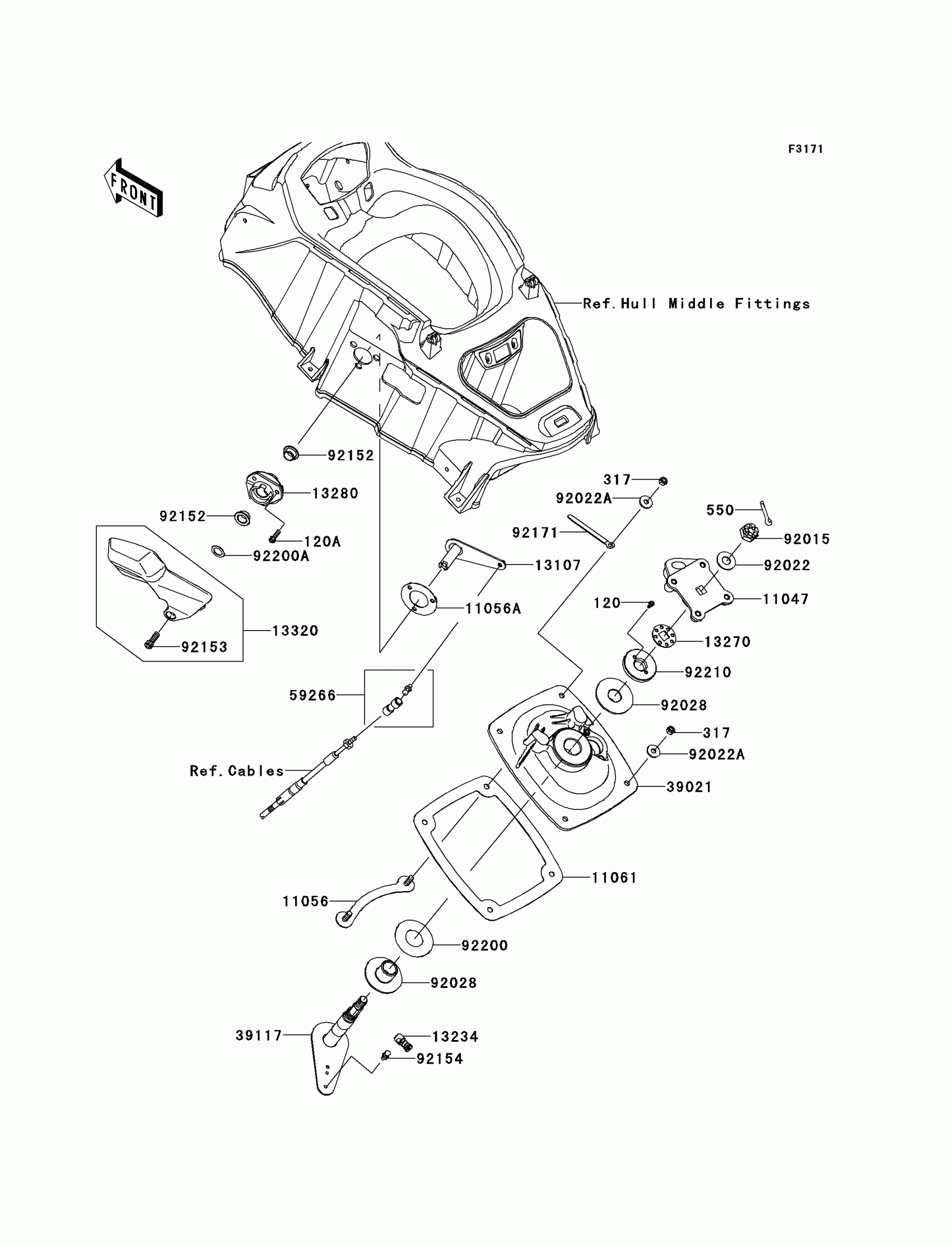

Kawasaki JET SKI® Ultra® 300X Handle Pole Diagram

#

Description
Price

120

BOLT-SOCKET,5X10

120R0510

$3.14

120A

BOLT-SOCKET,6X20

120R0620

$2.85

317

NUT

317R0800

$1.64

550

PIN-COTTER,3X35

550S3035

$4.02

11047

BRACKET,HANDLE HOLDER

11047-3759

$110.16

11056

BRACKET,HANDLE POLE BRACKET

11056-3712

$16.15

11056A

BRACKET

11056-3713

$9.98

11061

GASKET,HANDLE POLE BRACKET

11061-3739

$31.07

13107

SHAFT

13107-3799

$60.56

13234

SHAFT-COMP

13234-3713

$82.19

13270

PLATE,STEERING NUT

13270-3808

$6.13

13280

HOLDER

13280-3752

Unavailable

13320

LEVER-ASSY,REVERSE

13320-3720

Unavailable

39021

BRACKET-HANDLE POLE

39021-3716

$331.57

39117

SHAFT-STRG

39117-3715

$339.45

59266

JOINT-BALL

59266-3710

$40.38

92015

NUT,CASTLE,14MM

92015-3805

$36.18

92022

WASHER,15X34X2.0

92022-3738

$5.21

92022A

WASHER,8.4X23X2.5

92022-3744

$3.33

92028

BUSHING,STEERING

92028-3748

$24.03

92152

COLLAR

92152-3748

$1.56

92153

BOLT,SOCKET,8X25

92153-3739

$3.50

92154

BOLT,BALL,6MM

92154-3710

$22.58

92171

CLAMP,L=150

92171-3717

$7.61

92200

WASHER,32.5X70X2

92200-3718

$15.76

92200A

WASHER,16.5X25X1

92200-3800

$2.15

92210

NUT,STEERING SHAFT,22MM

92210-3800

$98.23
