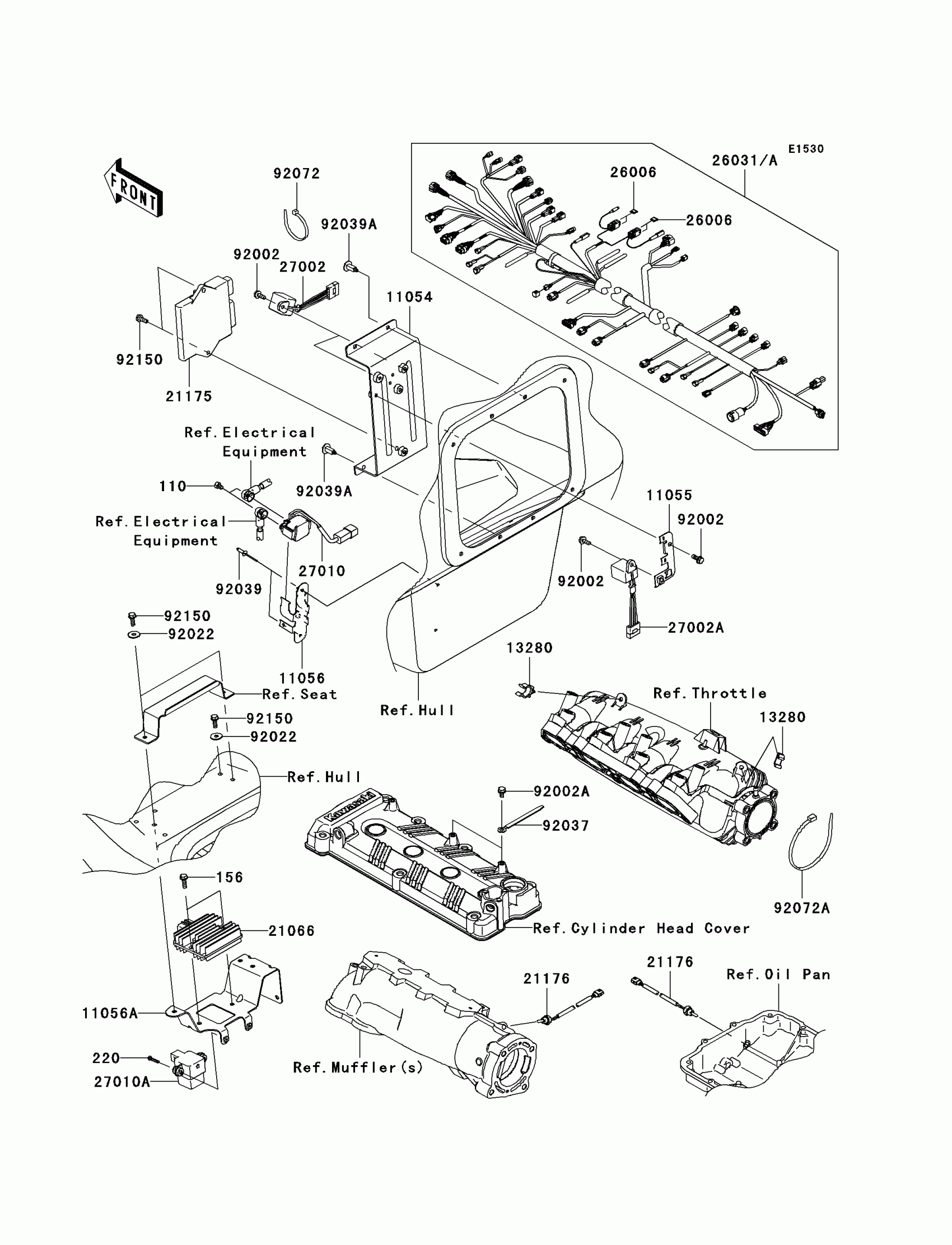

Kawasaki JET SKI® Ultra® 300X Fuel Injection Diagram

Description

Price

110

BOLT,6X8

110R0608

$2.15

156

BOLT-WP,6X20

156R0620

$2.92

220

SCREW-PAN-CROS,4X20

220R0420

$2.00

11054

BRACKET,ECU&RELAY

11054-3743

$12.75

11055

BRACKET,FUSE

11055-3713

$11.37

11056

BRACKET,SWITCH

11056-1114

$14.22

11056A

BRACKET,REGULATOR&VDS

11056-3702

$113.83

13280

HOLDER,HARNESS

13280-3760

$3.25

21066

REGULATOR-VOLTAGE

21066-3718

Unavailable

21175

CONTROL UNIT-ELECTRONIC

21175-3744

$1,098.41

21176

SENSOR,TEMP

21176-3774

Unavailable

26006

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$4.16

26031A

HARNESS

26031-1292

Unavailable

27002

RELAY-ASSY

27002-3703

$46.49

27002A

RELAY-ASSY

27002-3704

$138.81

27010

SWITCH

27010-0710

$152.82

27010A

SWITCH,VDS

27010-3785

$264.90

92002

BOLT,6X16

92002-3728

$3.38

92002A

BOLT,6X12

92002-3763

$3.72

92022

WASHER,6.5X20X1.5

92022-3710

$2.92

92037

CLAMP,L=100

92037-3736

$4.85

92039

RIVET

92039-3714

$0.92

92039A

RIVET

92039-3788

$2.71

92072

BAND,L=188.85

92072-0105

$1.51

92072A

BAND,L=372.24

92072-3883

$1.39

92150

BOLT,6X18

92150-3729

$3.72
