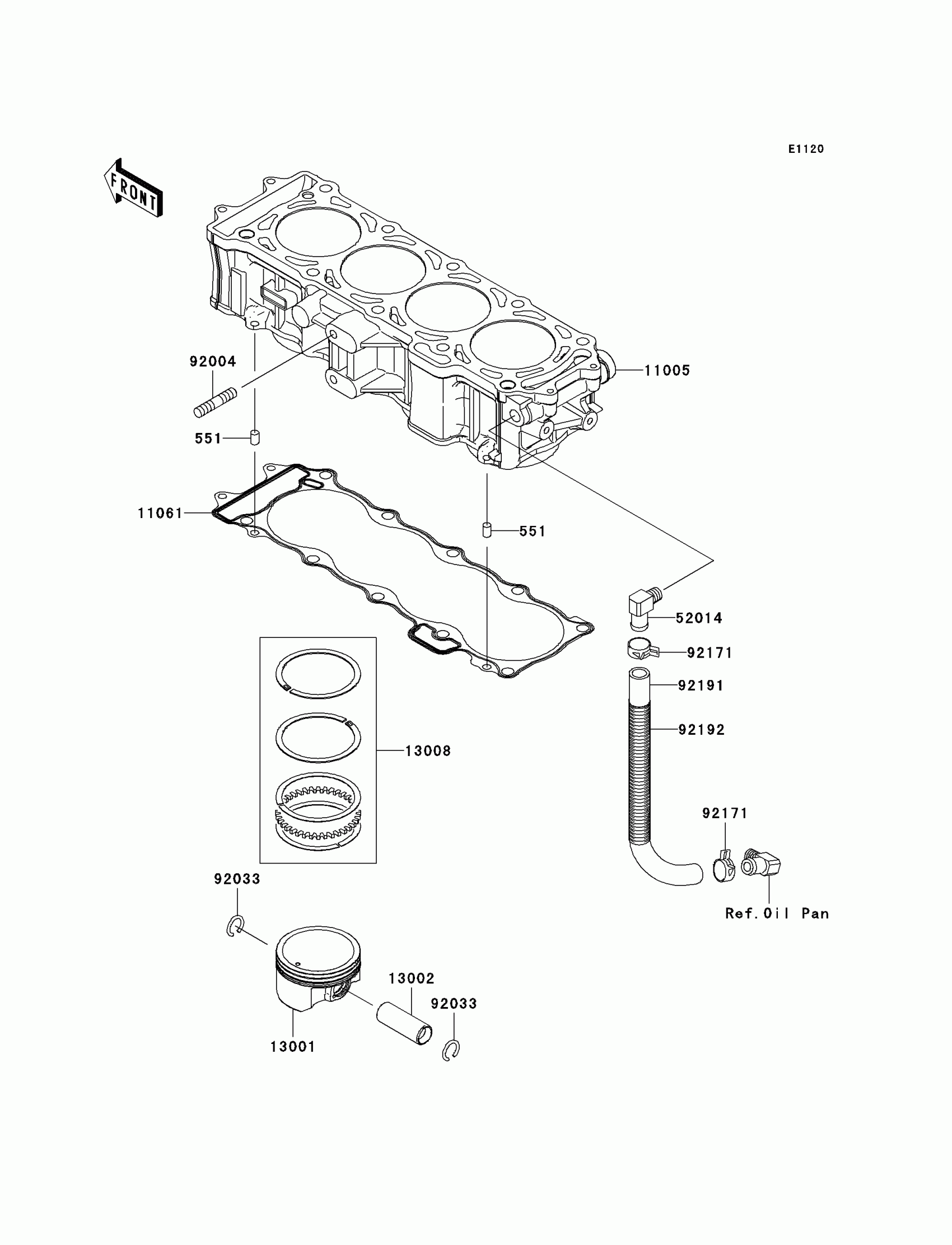

Kawasaki JET SKI® Ultra® 300X Cylinder/Piston(s) Diagram

Description

Price

551

PIN-DOWEL

551R0812

$6.30

11005

CYLINDER-ENGINE

11005-3770

$1,502.28

11061

GASKET,CYLINDER BASE

11061-3770

$59.61

13001

PISTON-ENGINE

13001-3741

$97.73

13002

PIN-PISTON

13002-1131

$29.80

13008

RING-SET-PISTON

13008-1196

$60.93

52014

ELBOW

52014-3717

$33.70

92004

STUD,10X32

92004-3759

$7.76

92033

RING-SNAP

92033-1188

$2.83

92171

CLAMP,TUBE

92171-3710

Unavailable

92191

TUBE,BREATHER

92191-3983

$15.36

92192

TUBE,CORRUGATED,L=265

92192-1083

$16.63
