2013 Kawasaki JET SKI® Ultra® 300LX Generator Diagram

← All diagrams

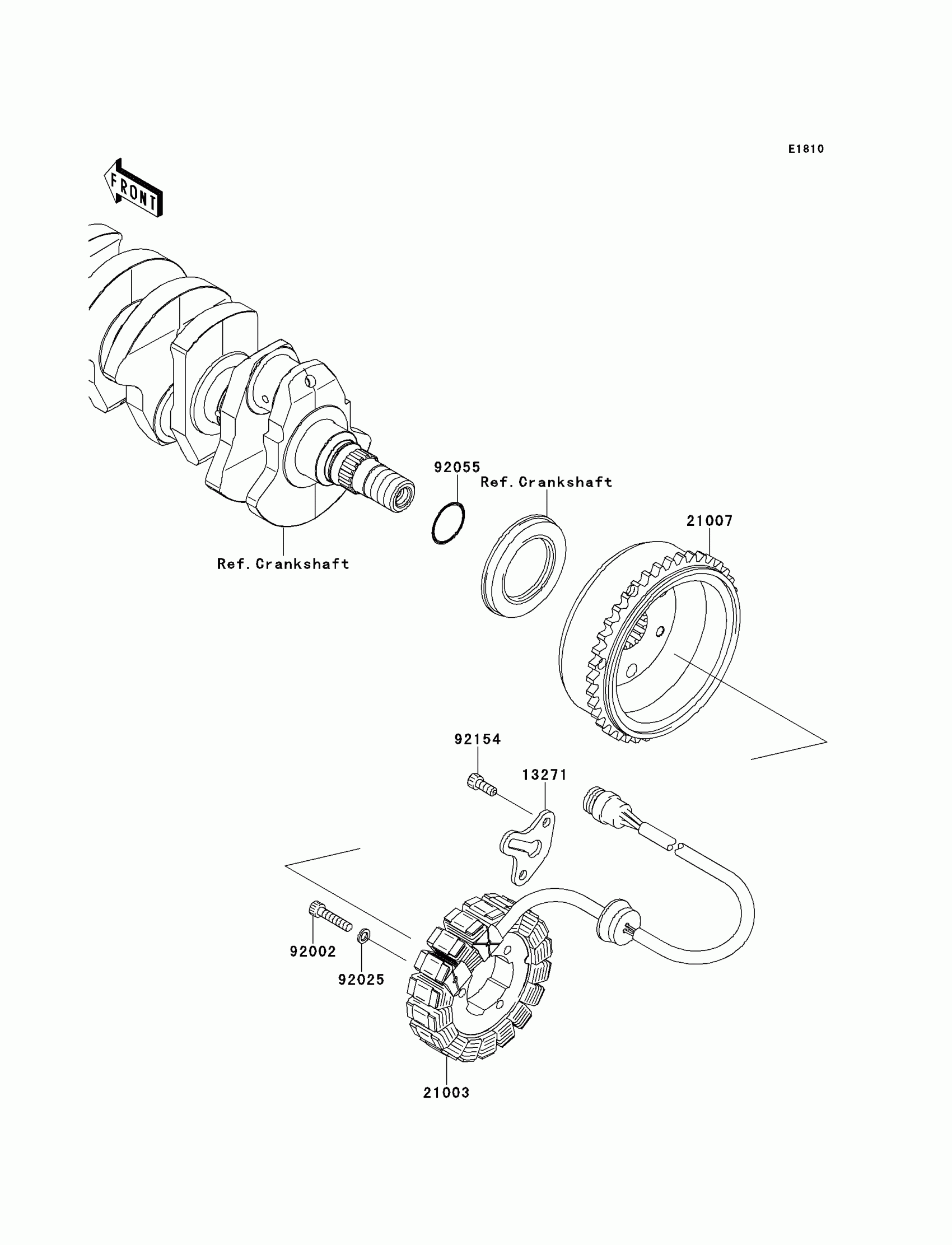

Find the part on the Generator diagram for your 2013 Kawasaki JET SKI® Ultra® 300LX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki JET SKI® Ultra® 300LX Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13271

PLATE

13271-3847

1

$7.51

In stock

21003

STATOR

21003-3747

1
Out of stock

21007

ROTOR

21007-3748

1
Out of stock

92002

BOLT,6X28

92002-1537

1
Out of stock

92025

SHIM,T=1.4

92025-1502

1
Out of stock

92055

RING-O,27.7X2.4

92055-1619

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-3714

1
Out of stock
