2013 Kawasaki JET SKI® Ultra® 300LX Control Diagram

← All diagrams

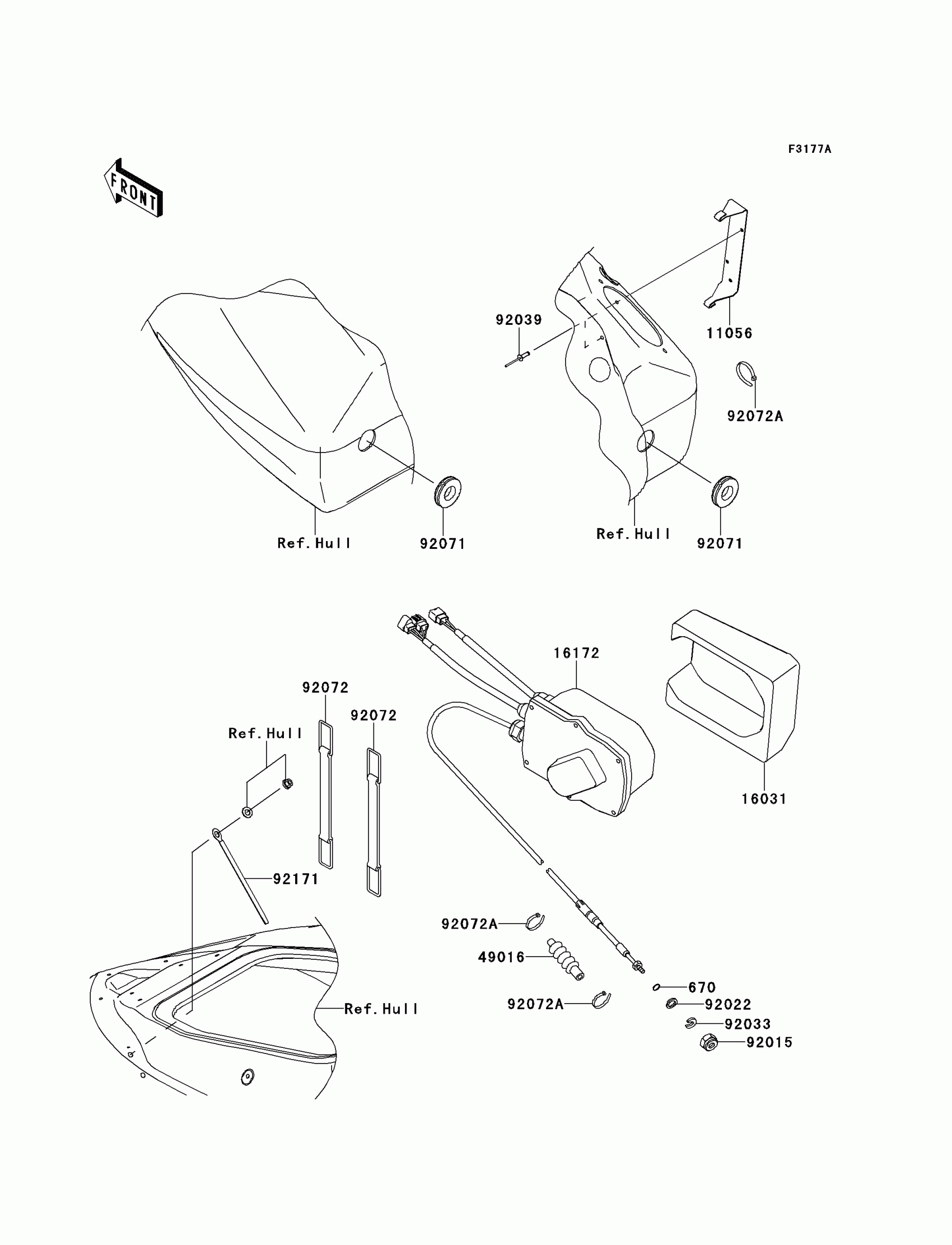

Find the part on the Control diagram for your 2013 Kawasaki JET SKI® Ultra® 300LX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki JET SKI® Ultra® 300LX Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,11MM

670B2011

1
Out of stock

11056

BRACKET

11056-0711

1

$16.00

In stock

16031

FLOAT

16031-3993

1
Out of stock

16172

ACTUATOR,JET PUMP

16172-0027

1
Out of stock

49016

1

$3.26

In stock

92015

NUT,20MM

92015-526

1

$30.30

In stock

92022

WASHER

92022-535

1
Out of stock

92033

1

$5.45

In stock

92039

RIVET

92039-3714

1

$0.92

In stock

92071

GROMMET

92071-3840

1

$5.03

In stock

92072

BAND,BATTERY

92072-3841

1

$35.95

In stock

92072A

BAND,L=100.08

92072-3882

1

$1.71

In stock

92171

CLAMP,L=150

92171-3717

1

$7.61

In stock
