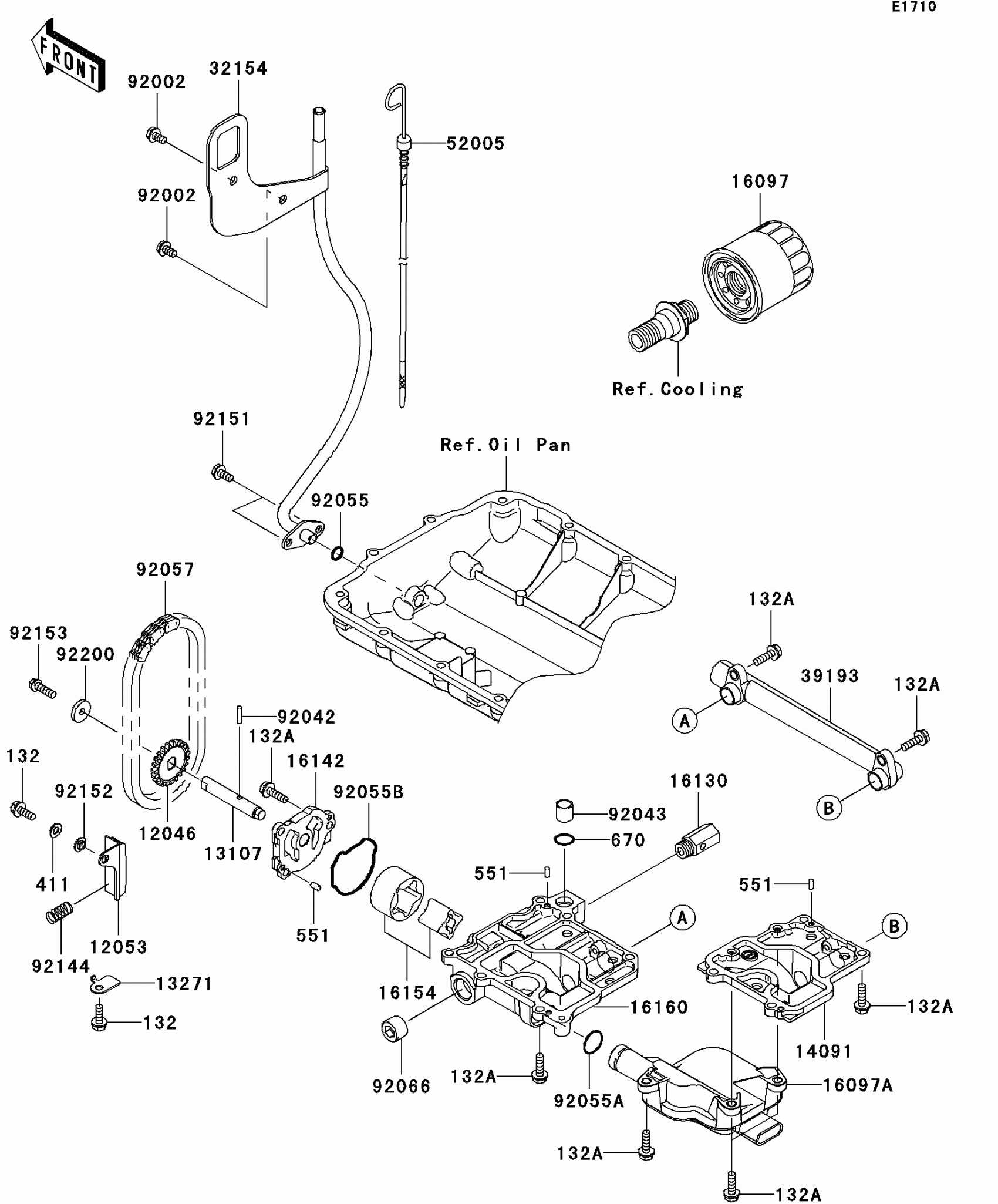

Kawasaki Jet Ski® Ultra® 260X Oil Pump Diagram

#

Description
Price

12046

SPROCKET,23T

12046-3703

$14.56

12053

GUIDE-CHAIN

12053-3704

$17.49

13107

SHAFT

13107-3801

$27.72

13271

PLATE

13271-3850

$4.22

14091

COVER

14091-3767

$78.59

16097

FILTER-ASSY-OIL

16097-0003

Unavailable

16097A

FILTER-ASSY-OIL

16097-3702

$45.51

16130

VALVE-ASSY-RELIEF

16130-3701

$47.89

16142

COVER-PUMP

16142-3703

$33.53

16154

ROTOR-PUMP

16154-1124

$62.69

16160

BODY,OIL PUMP

16160-3748

Unavailable

32154

PIPE,OIL LEVEL

32154-3721

$185.83

39193

PIPE-OIL

39193-3702

$45.14

52005

GAUGE,OIL LEVEL

52005-3710

$67.94

92002

BOLT,6X12

92002-3763

$3.57

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92043

PIN,11.5X14X14

92043-1279

$3.81

92055

RING-O,9.8X2.4

92055-1150

$6.18

92055A

RING-O,19.8X1.9

92055-1332

$3.57

92055B

RING-O

92055-3764

$4.93

92057

CHAIN,OIL PUMP,98XRH2010-52L

92057-3713

$22.81

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92144

SPRING

92144-1551

$3.76

92151

BOLT,6X14

92151-3788

$1.68

92152

COLLAR,GUIDE

92152-3737

$9.08

92153

BOLT,FLANGED-SMALL,6X20

92153-3734

$3.85

92200

WASHER,6X20X3.2

92200-0120

$1.78

132

BOLT-FLANGED-SMALL,6X16

132BD0616

$3.14

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.14

411

WASHER-PLAIN,6MM

411S0600

$1.49

551

PIN-DOWEL

551R0408

$4.09

670

O RING,14MM

670D2014

$4.18
