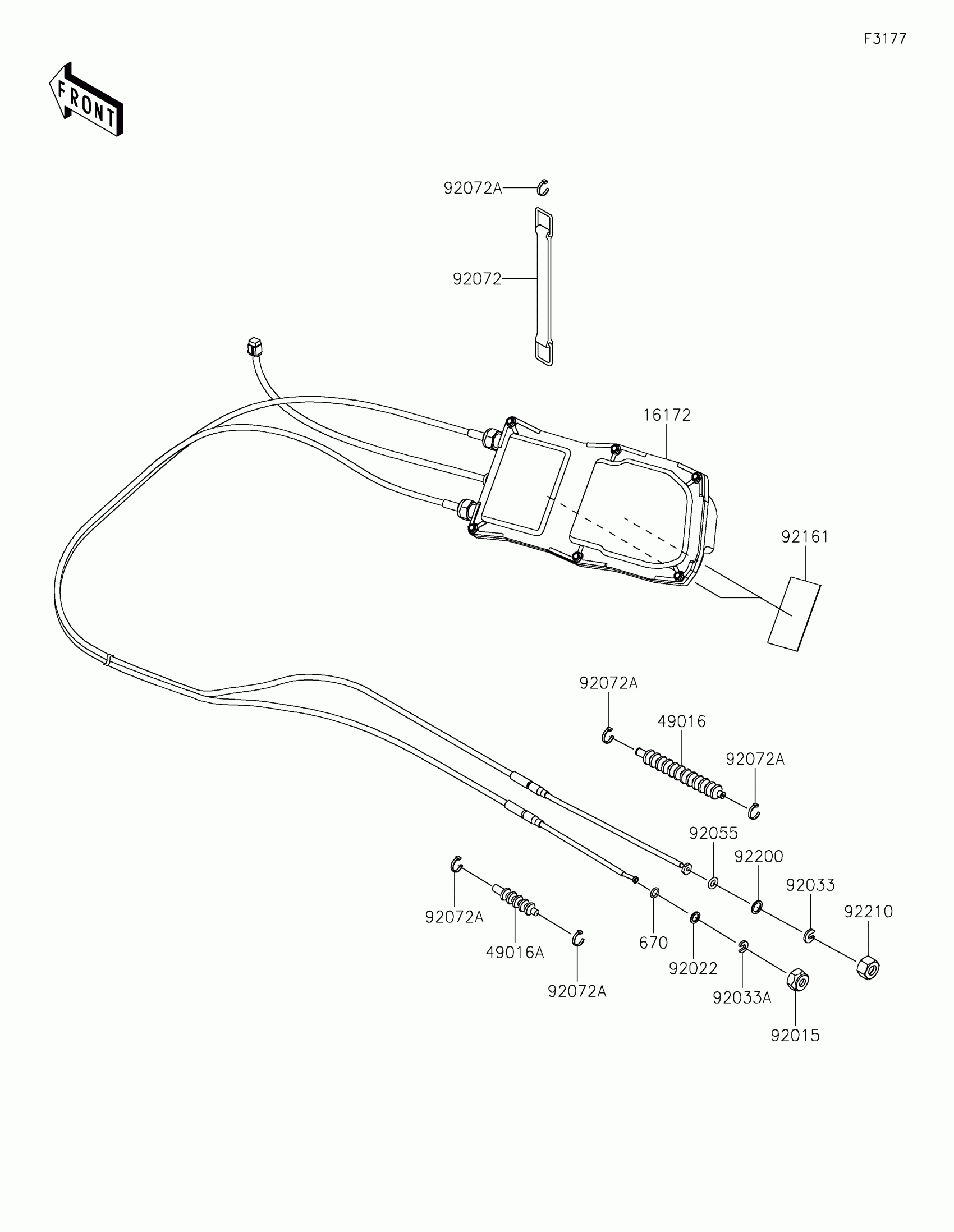

Kawasaki JET SKI® ULTRA® 160LX-S ANGLER Control Diagram

Description

Price

16172

ACTUATOR,JET PUMP

16172-0572

$1,476.85

49016

COVER-SEAL

49016-0695

$5.68

49016A

COVER-SEAL,TILT CABLE

49016-3702

$3.13

92015

NUT,20MM

92015-526

$30.30

92022

WASHER

92022-535

$7.25

92033

RING-SNAP

92033-3735

$5.87

92033A

RING-SNAP,7.7X17.5X3.0

92033-3737

$5.15

92055

RING-O

92055-3778

$1.04

92072

BAND,BATTERY

92072-3879

$36.42

92072A

BAND,L=100.08

92072-3882

$1.71

92161

DAMPER

92161-3728

$4.92

92200

WASHER,14.5X20X1.5

92200-3793

$1.85

92210

NUT,22MM

92210-3772

$10.34

670

O RING,11MM

670B2011

$0.98
