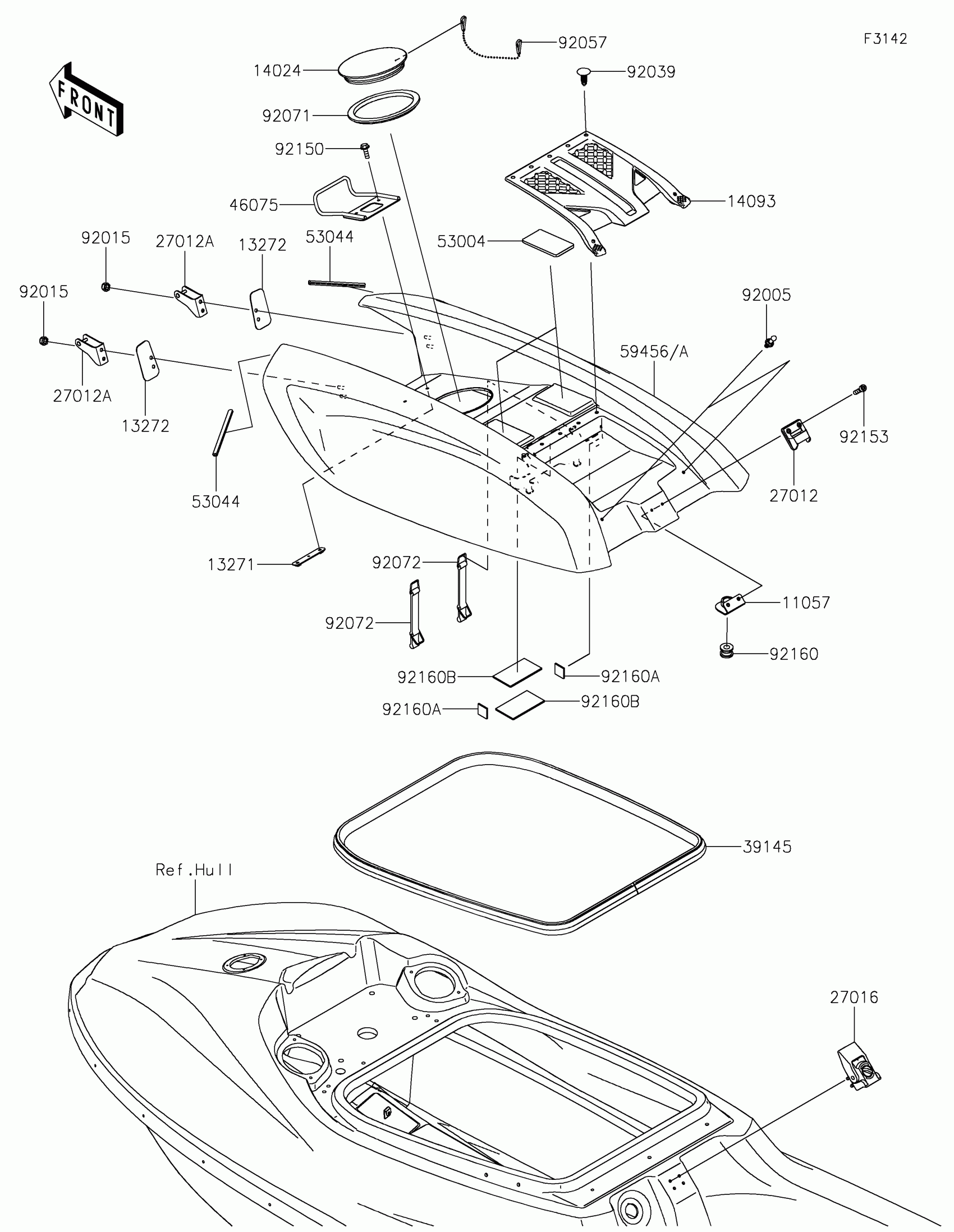

Kawasaki JET SKI® SX-R™ Engine Hood Diagram

Description

Price

11057

BRACKET

11057-0796

$30.34

13271

PLATE

13271-3886

$5.91

13272

PLATE

13272-2218

$2.59

14024

COVER

14024-3748

$5.92

14093

COVER,STORAGE

14093-0541

$39.20

27012

HOOK

27012-3711

$33.53

27012A

HOOK

27012-3842

$11.38

27016

LOCK-ASSY

27016-3703

$170.09

39145

TRIM-SEAL

39145-0050

$73.31

46075

GRIP

46075-0613

$36.11

53004

MAT

53004-0614

$1.76

53044

TRIM,L=120

53044-3767

$4.72

59456

HOOD-COMP-ENGINE,L.GREEN

59456-0001-777

$605.57

59456A

HOOD-COMP-ENGINE,J.WHITE

59456-0001-8C

$604.69

92005

FITTING

92005-0852

$5.51

92015

NUT,LOCK,6MM

92015-3766

Unavailable

92039

RIVET

92039-3788

$2.34

92057

CHAIN,COVER,L=100

92057-3704

$14.56

92071

GROMMET

92071-3742

$7.56

92072

BAND,TOOL CASE

92072-3859

$14.10

92150

BOLT,5X16

92150-3778

$3.54

92153

BOLT,SOCKET,5X20

92153-3716

$2.03

92160

DAMPER,MUFFLER MOUNT

92160-1116

$4.18

92160A

DAMPER,25X25

92160-3864

$2.66

92160B

DAMPER

92160-3913

$5.02
