2024 Kawasaki JET SKI® SX-R™ 160 Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2024 Kawasaki JET SKI® SX-R™ 160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

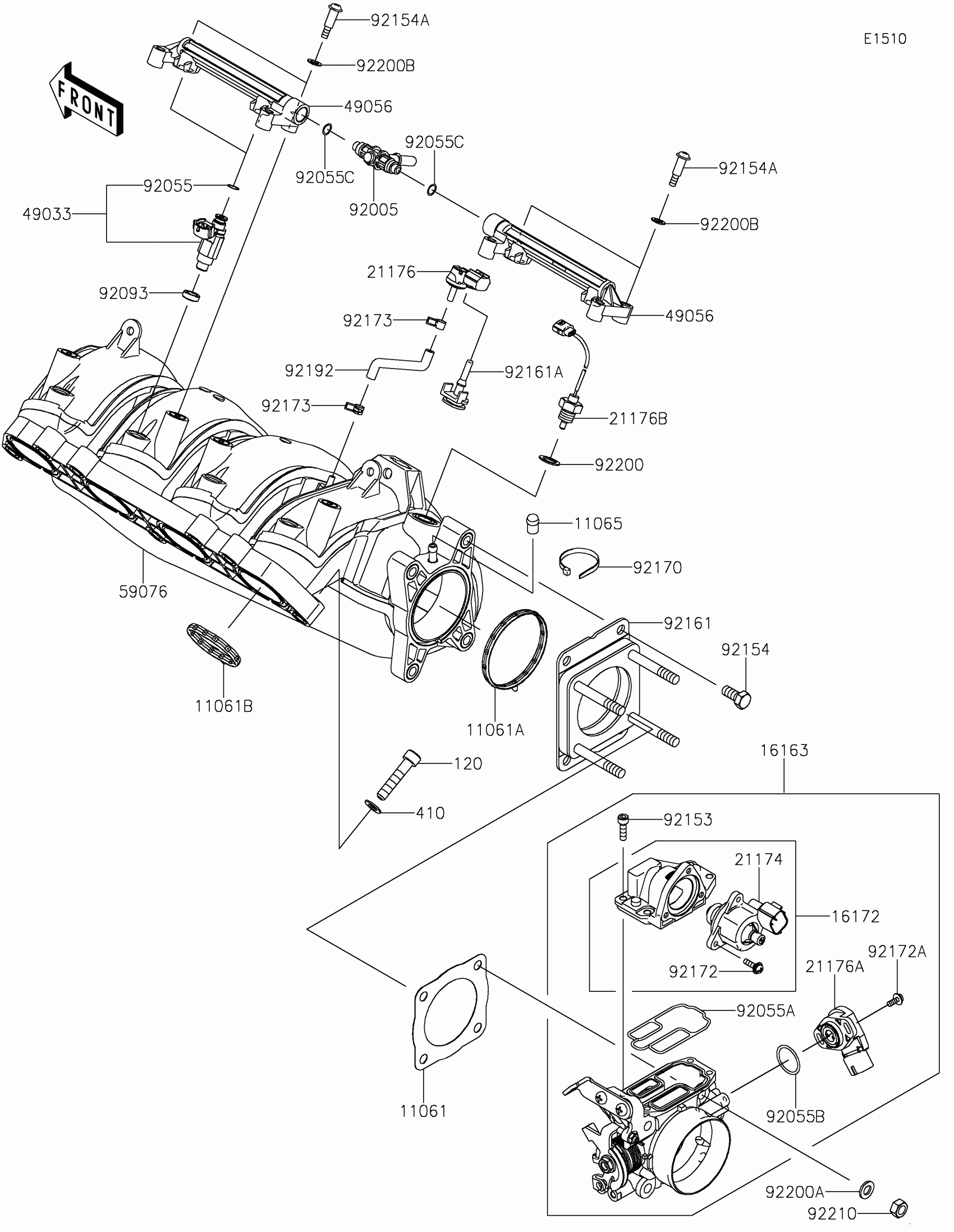

2024 Kawasaki JET SKI® SX-R™ 160 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,THROTTLE

11061-0824

1
Out of stock

11061A

GASKET,MANIFOLD

11061-3766

1
Out of stock

11061B

GASKET,THROTTLE

11061-3767

1
Out of stock

11065

CAP

11065-0764

1
Out of stock

16163

THROTTLE-ASSY

16163-0919

1
Out of stock

16172

ACTUATOR

16172-0561

1
Out of stock

21174

MOTOR-ELECTRIC,STM

21174-0555

1
Out of stock

21176

SENSOR,PRESSURE

21176-0906

1
Out of stock

21176A

SENSOR,TPS

21176-3762

1
Out of stock

21176B

SENSOR,AIR TEMPERATURE

21176-3767

1
Out of stock

49033

NOZZLE-INJECTION

49033-3707

1
Out of stock

49056

PIPE-INJECTION,FUEL

49056-3705

1
Out of stock

59076

MANIFOLD-INTAKE

59076-0006

1
Out of stock

92005

FITTING,FUEL PIPE

92005-3766

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-1622

1
Out of stock

92055A

RING-O

92055-3773

1
Out of stock

92055B

RING-O

92055-3774

1
Out of stock

92055C

RING-O

92055-3782

1
Out of stock

92093

SEAL

92093-0127

1
Out of stock

92153

BOLT

92153-3723

1
Out of stock

92154

BOLT

92154-1389

1
Out of stock

92154A

BOLT

92154-3713

1
Out of stock

92161

DAMPER

92161-1942

1

$123.12

In stock

92161A

DAMPER

92161-3796

1

$13.61

In stock

92170

CLAMP

92170-3749

1
Out of stock

92172

SCREW

92172-3710

1
Out of stock

92172A

SCREW

92172-3711

1
Out of stock

92173

CLAMP

92173-3702

1
Out of stock

92192

TUBE

92192-1361

1
Out of stock

92200

WASHER,12X18X1

92200-0712

1
Out of stock

92200A

WASHER

92200-3806

1
Out of stock

92200B

WASHER

92200-3807

1
Out of stock

92210

NUT

92210-0897

1
Out of stock

120

BOLT-SOCKET,8X40

120CC0840

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM

410S0800

1
Out of stock
