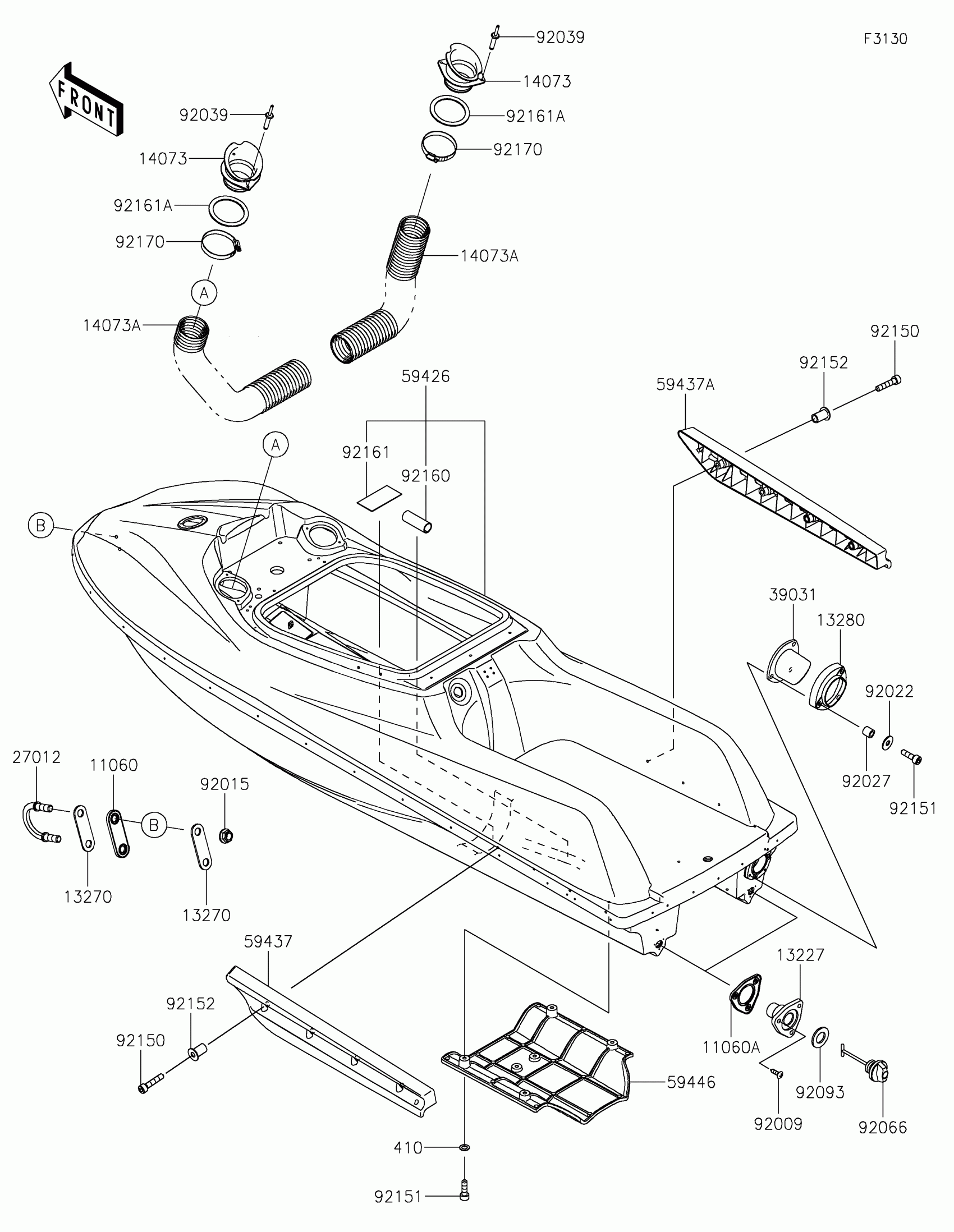

Kawasaki JET SKI® SX-R™ 160 Hull Diagram

#

Description
Price

11060

GASKET,U HOOK,FR

11060-3799

$5.47

11060A

GASKET,DRAIN PLUG

11060-3801

$4.96

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$6.08

13270

PLATE

13270-3896

$3.56

13280

HOLDER,TAIL PIPE CAP

13280-3742

$33.61

14073

DUCT

14073-0866

$9.22

14073A

DUCT

14073-0868

$15.81

27012

HOOK

27012-3797

$32.91

39031

CAP-END,TAIL PIPE

39031-3709

$71.61

59426

HULL-COMP,BLACK

59426-0010-650

$3,693.81

59437

STABILIZER,LH,F.BLACK

59437-3745-6Z

$63.63

59437A

STABILIZER,RH,F.BLACK

59437-3746-6Z

$63.63

59446

COVER-JET PUMP

59446-0002

$200.78

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92015

NUT,FLANGED,8MM

92015-1933

$2.99

92022

WASHER

92022-567

$1.89

92027

COLLAR,6.2X10X10

92027-3705

$8.63

92039

RIVET

92039-3775

$1.25

92066

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$13.20

92093

SEAL

92093-3720

$2.75

92150

BOLT,SOCKET,6X30

92150-3822

$3.29

92151

BOLT,SOCKET,6X20

92151-3774

$1.35

92152

COLLAR

92152-3715

$6.39

92160

DAMPER,22X26X72

92160-1008

Unavailable

92161

DAMPER

92161-3728

$4.92

92161A

DAMPER

92161-3769

$3.37

92170

CLAMP

92170-1679

$5.95

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68
