2024 Kawasaki Jet Ski® SX-R™ 160 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2024 Kawasaki Jet Ski® SX-R™ 160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

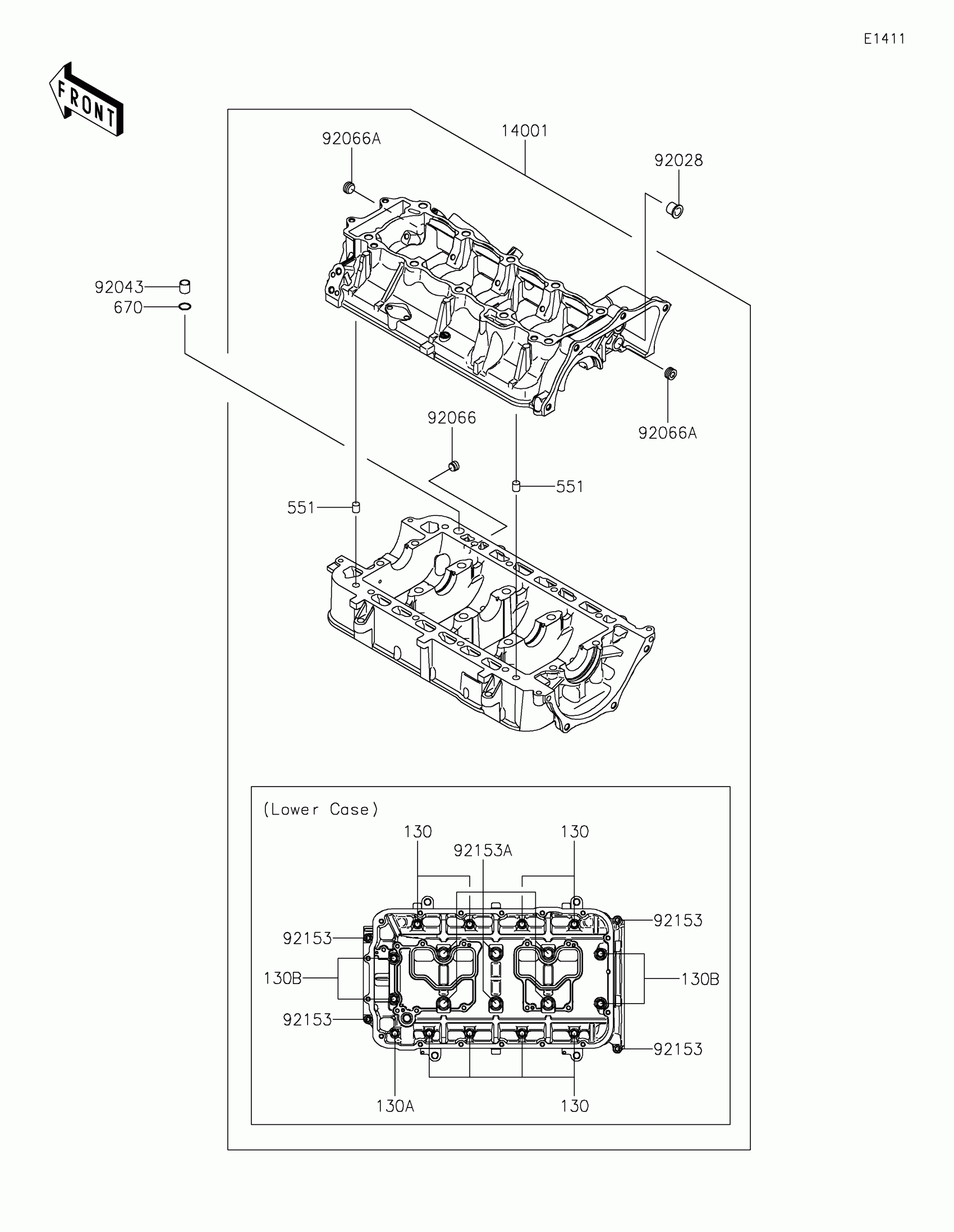

2024 Kawasaki Jet Ski® SX-R™ 160 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14001

SET-CRANKCASE

14001-0574

1
Out of stock

92028

BUSHING

92028-3718

1

$7.48

In stock

92043

PIN,11.5X14X14

92043-1279

1

$3.97

In stock

92066

PLUG

92066-3778

1

$10.63

In stock

92066A

PLUG

92066-3782

1

$10.63

In stock

92153

BOLT,6X30

92153-3707

1

$2.63

In stock

92153A

BOLT,10X85

92153-3711

1

$11.64

In stock

130

BOLT-FLANGED,8X45

130CD0845

1

$3.58

In stock

130A

BOLT-FLANGED,8X55

130CD0855

1

$4.90

In stock

130B

BOLT-FLANGED,8X85

130CD0885

1

$3.15

In stock

551

PIN-DOWEL

551R1012

1

$5.71

In stock

670

O RING,14MM

670D2014

1

$4.37

In stock
