2024 Kawasaki JET SKI® SX-R™ 160 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2024 Kawasaki JET SKI® SX-R™ 160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

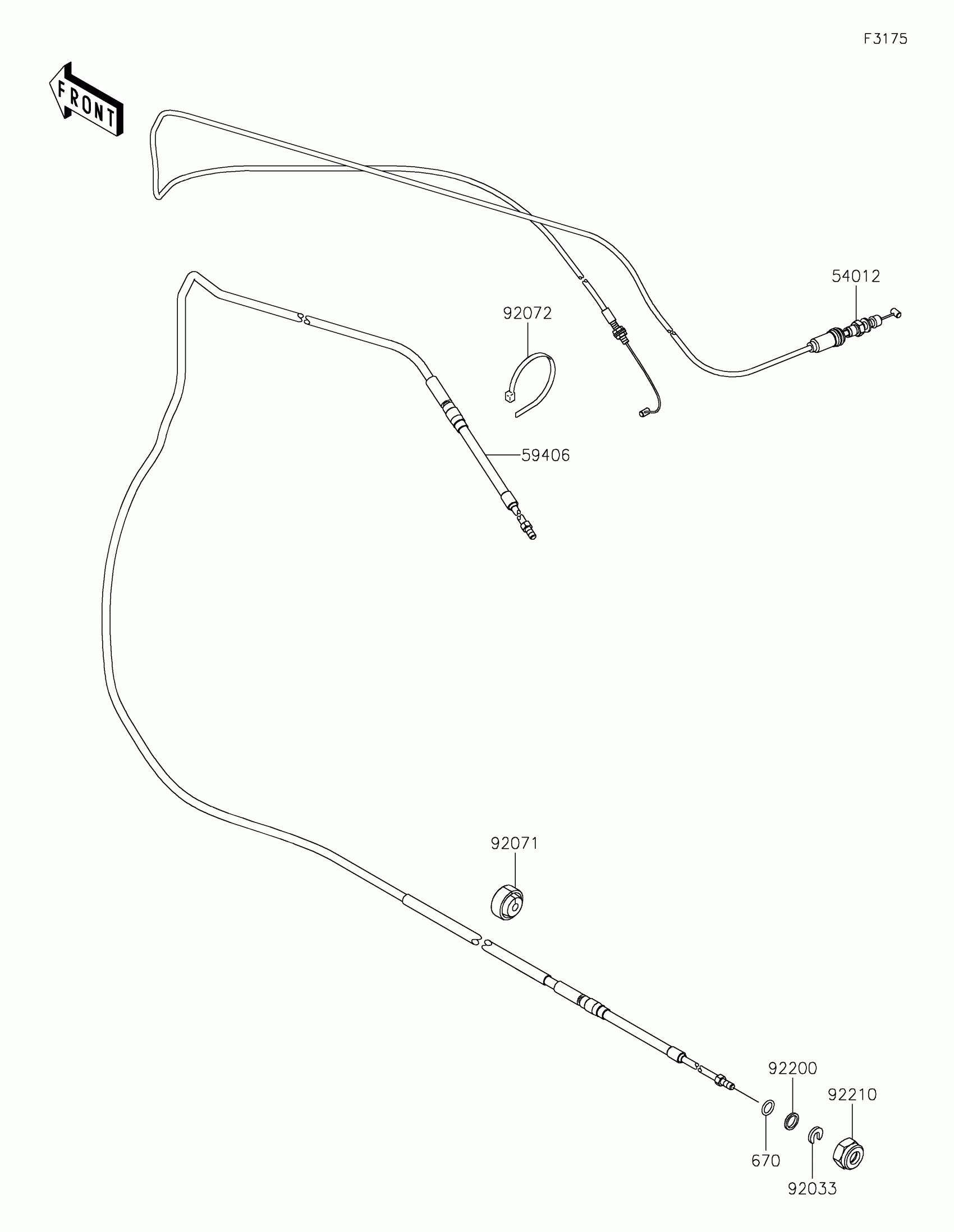

2024 Kawasaki JET SKI® SX-R™ 160 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54012

CABLE-THROTTLE

54012-0648

1

$107.15

In stock

59406

CABLE-STRG

59406-0006

1
Out of stock

92033

RING-SNAP,7.7X17.5X3.0

92033-3737

1
Out of stock

92071

GROMMET

92071-0765

1
Out of stock

92072

BAND,L=372.24

92072-3883

1
Out of stock

92200

WASHER,13.6X18X3

92200-1934

1
Out of stock

92210

NUT,20MM

92210-1554

1
Out of stock

670

O RING,12MM

670B2012

1
Out of stock
