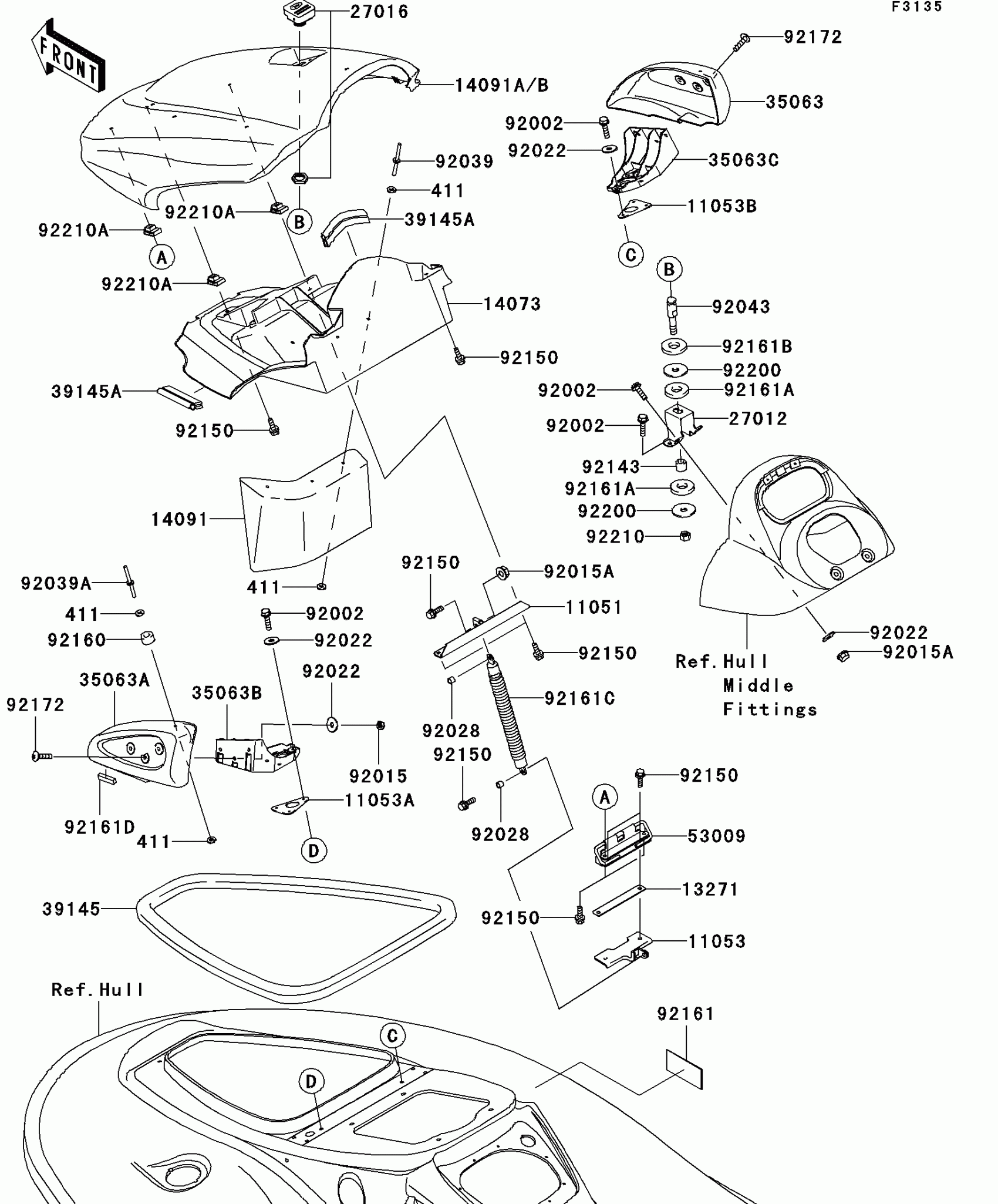

Kawasaki Jet Ski® STX Hull Front Fittings Diagram

#

Description
Price

11051

BRACKET

11051-3766

$31.14

11053

BRACKET

11053-3752

$48.60

11053A

BRACKET,LH

11053-3777

Unavailable

11053B

BRACKET,RH

11053-3778

Unavailable

13271

PLATE

13271-3897

$6.58

14073

DUCT,HATCH,INNER

14073-3800

$156.21

14091

COVER,FRONT DUCT

14091-3722

Unavailable

14091A

COVER,HATCH,F.RED

14091-3778-B1

$156.01

27012

HOOK

27012-3855

$24.42

27016

LOCK-ASSY

27016-3757

Unavailable

35063

STAY,MIRROR,RH,F.BLACK

35063-3709-6Z

$28.98

35063A

STAY,MIRROR,LH,F.BLACK

35063-3710-6Z

$28.98

35063B

STAY,MIRROR,LH

35063-3713

$17.59

35063C

STAY,MIRROR,RH

35063-3714

$17.59

39145

TRIM-SEAL,L=1380

39145-3773

$79.19

39145A

TRIM-SEAL,L=260

39145-3789

$15.29

53009

HINGE,HATCH COVER

53009-3725

$120.15

92002

BOLT,6X25

92002-3714

$3.81

92015

NUT,LOCK,6MM

92015-3766

$4.46

92015A

NUT,6MM

92015-3767

$3.57

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92028

BUSHING

92028-3765

$2.28

92039

RIVET

92039-3714

$0.79

92039A

RIVET

92039-3747

$1.11

92043

PIN

92043-3760

Unavailable

92143

COLLAR,8.2X14X11.2

92143-3724

$12.90

92150

BOLT,6X18

92150-3729

$3.57

92160

DAMPER

92160-3738

$13.64

92161

DAMPER

92161-3728

$4.92

92161A

DAMPER

92161-3739

$4.20

92161B

DAMPER

92161-3747

$3.52

92161C

DAMPER,HATCH

92161-3753

Unavailable

92161D

DAMPER

92161-3754

$2.49

92172

SCREW,6X25

92172-3715

$1.66

92200

WASHER,8.5X32X2

92200-3786

$4.39

92210

NUT,LOCK,8MM

92210-3742

$5.71

92210A

NUT,6MM

92210-3768

$4.39

411

WASHER-PLAIN,5MM

411S0500

$0.78
