Description

Price

11053

BRACKET,HANDLE PAD

11053-3762

$19.65

13107

SHAFT

13107-3740

$8.37

13151

SWITCH-COMP,STOP&START

13151-3722

$429.00

39058

HANDLE-COMP,F.BLACK

39058-3735-6Z

$198.83

39063

HOUSING-CONTROL

39063-3727

$29.36

39074

LEVER-ASSY-THROTTLE

39074-3726

$114.29

39075

LEVER-THROTTLE

39075-3714

$42.30

39087

PAD-HANDLE,F.BLACK

39087-3730-6Z

$156.82

39156

PAD,HANDLE

39156-3839

$64.42

46012

HOLDER-HANDLE,UPP

46012-3720

$15.76

46012A

HOLDER-HANDLE

46012-3728

$227.45

92002

BOLT,6X12

92002-3763

$3.57

92002A

BOLT,8X25

92002-3774

$7.76

92009

SCREW,6X20

92009-3781

$4.93

92009A

SCREW,5X30

92009-3836

$3.75

92009B

SCREW,6X30

92009-3837

$4.17

92033

RING-SNAP

92033-3723

$2.64

92072

BAND,L=286.69

92072-0104

$1.78

92072A

BAND,L=188.85

92072-0105

$1.30

92072B

BAND,TETHER SWITCH

92072-3816

Unavailable

92144

SPRING

92144-3749

$3.81

92191

TUBE,22X24X200

92191-3792

$31.05

92200

WASHER

92200-3738

$2.66

155

BOLT-WSP-SMALL,8X40

155R0840

$3.51

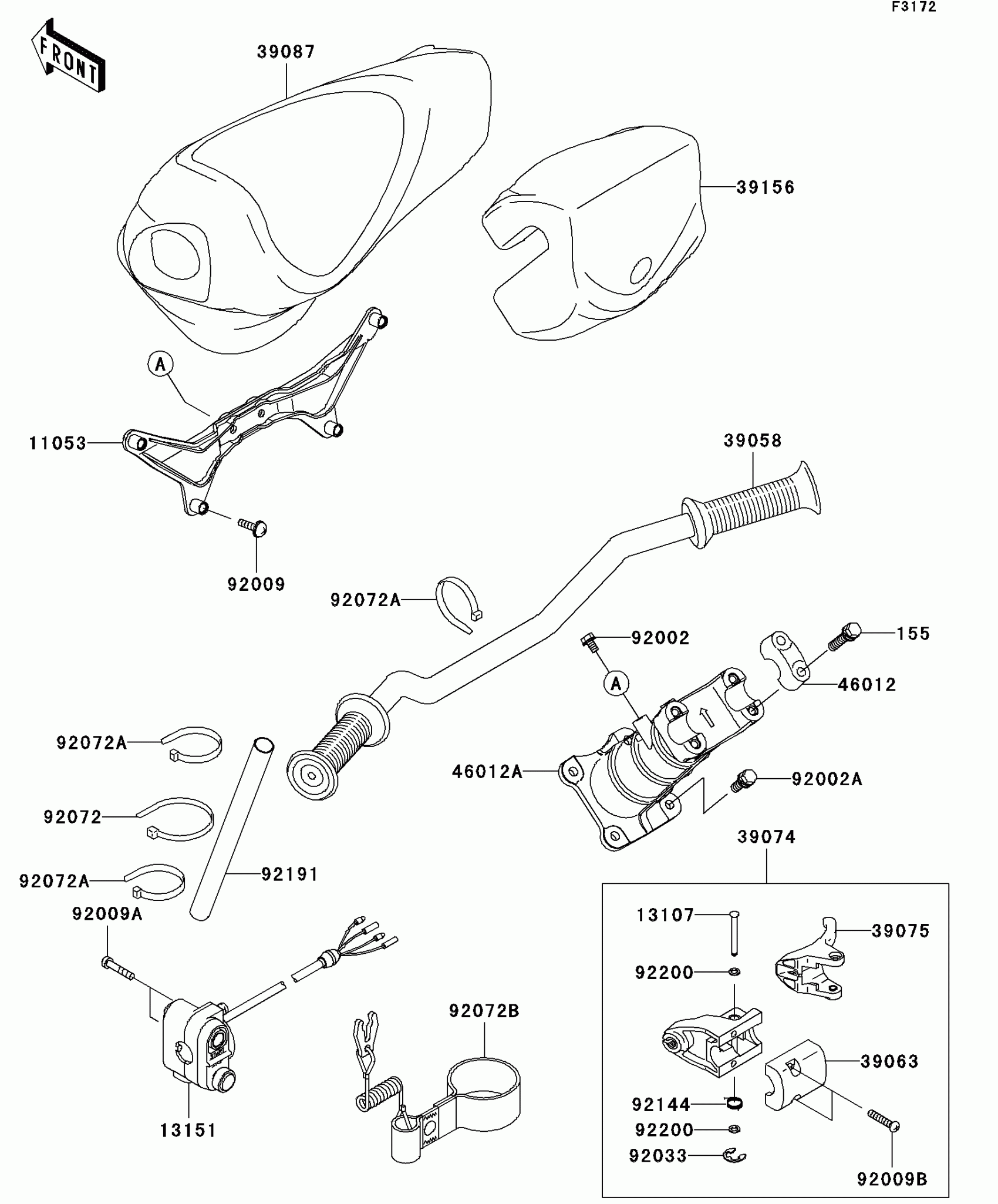

Kawasaki Jet Ski® STX Handlebar Diagram
