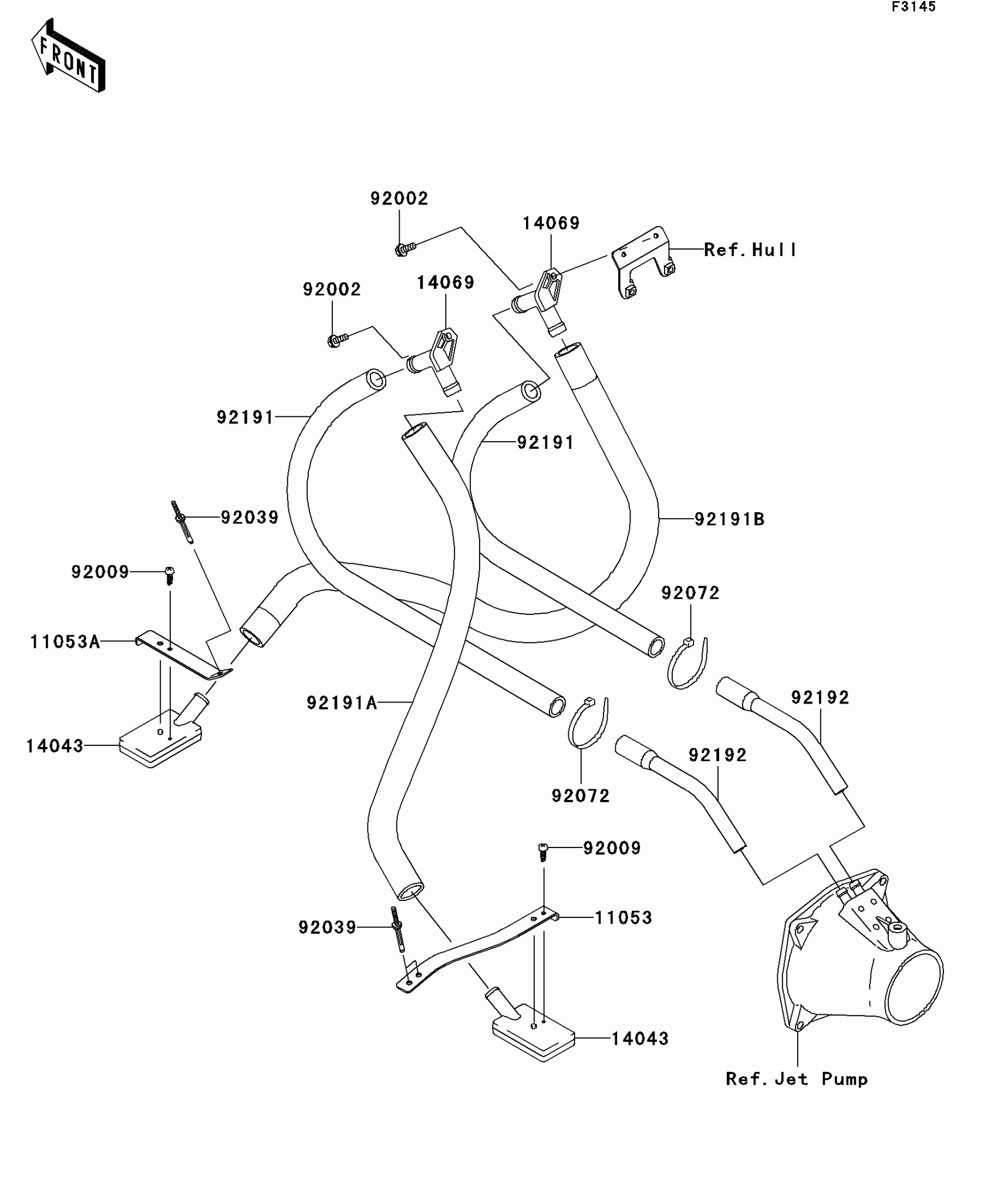

Kawasaki Jet Ski® STX Bilge System Diagram

Description

Price

11053

BRACKET,RR,LH

11053-3744

$15.36

11053A

BRACKET,FR,CNT

11053-3745

$7.73

14043

FILTER

14043-3711

$5.53

14069

BREATHER

14069-3708

$7.23

92002

BOLT,6X16

92002-3728

$3.24

92009

SCREW,TAPPING,4X14

92009-3762

$1.54

92039

RIVET

92039-3753

$1.42

92072

BAND,L=188.85

92072-0105

$1.30

92191

TUBE,BREATHER-HULL

92191-3988

$22.78

92191A

TUBE,FILTER-BREATHER

92191-3989

$42.67

92191B

TUBE,FILTER-BREATHER

92191-3990

$62.22

92192

TUBE,HULL-NOZZLE

92192-3843

$15.93
