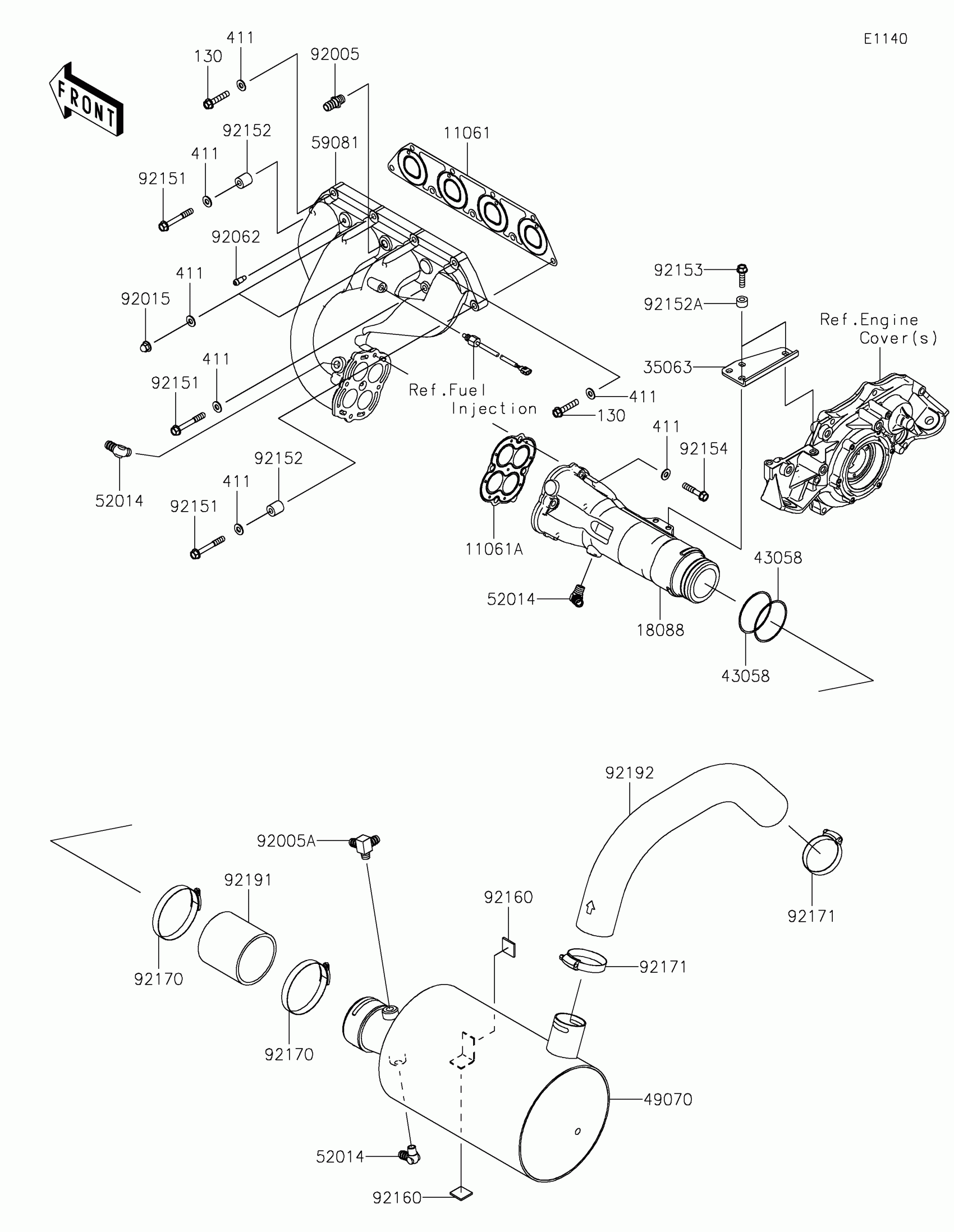

Kawasaki JET SKI® STX®160X Muffler(s) Diagram

Description

Price

11061

GASKET,MANIFOLD EXHAUST

11061-3713

$36.00

11061A

GASKET,PIPE EXHAUST

11061-3714

$13.73

130

BOLT-FLANGED,8X40

130CD0840

$3.21

18088

PIPE-EXHAUST

18088-3723

$361.45

35063

STAY

35063-3704

$29.42

411

WASHER-PLAIN,8MM

411S0800

$2.15

43058

RING,GASKET

43058-3733

$15.90

49070

MUFFLER-COMP

49070-0045

$868.95

52014

ELBOW

52014-3711

$26.63

59081

MANIFOLD-EXHAUST

59081-3741

$653.41

92005

FITTING

92005-3714

$14.12

92005A

FITTING

92005-3751

$53.31

92015

NUT,CAP,8MM

92015-1371

$3.81

92062

NOZZLE

92062-0562

$10.22

92151

BOLT,8X60

92151-3730

$5.55

92152

COLLAR

92152-3736

$5.82

92152A

COLLAR,8.2X17X10

92152-3740

$47.20

92153

BOLT,FLANGED,8X30

92153-3722

$1.81

92154

BOLT,FLANGED,8X40

92154-0992

$2.44

92160

DAMPER,25X25

92160-3864

$2.66

92170

CLAMP

92170-3764

$9.95

92171

CLAMP

92171-3723

$5.51

92191

TUBE,PIPE EX-MUFFLER

92191-3986

$17.36

92192

TUBE,W/M-TAIL PIPE

92192-1173

$52.27
