2020 Kawasaki JET SKI® STX®160X JET Pump Diagram

← All diagrams

Find the part on the JET Pump diagram for your 2020 Kawasaki JET SKI® STX®160X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

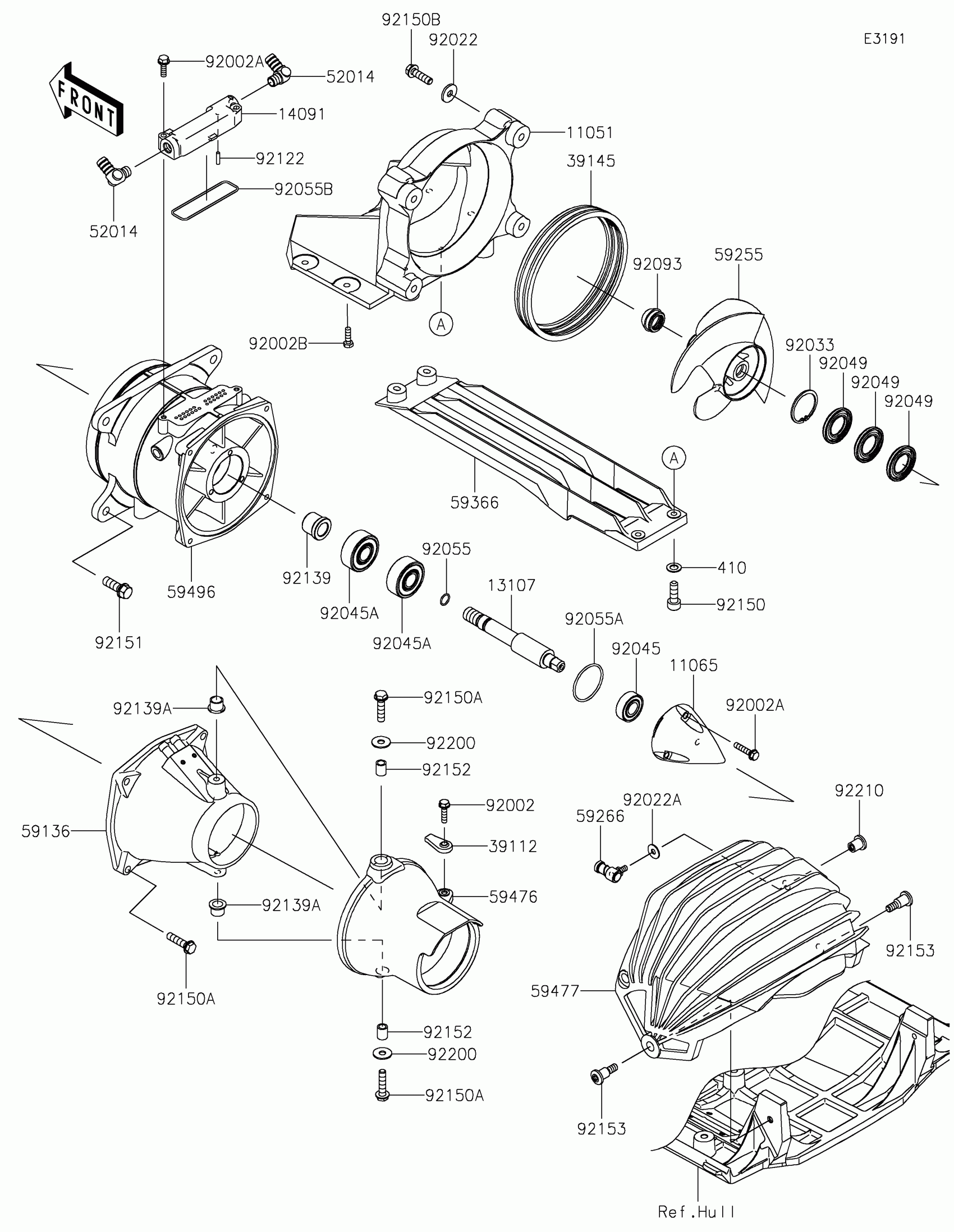

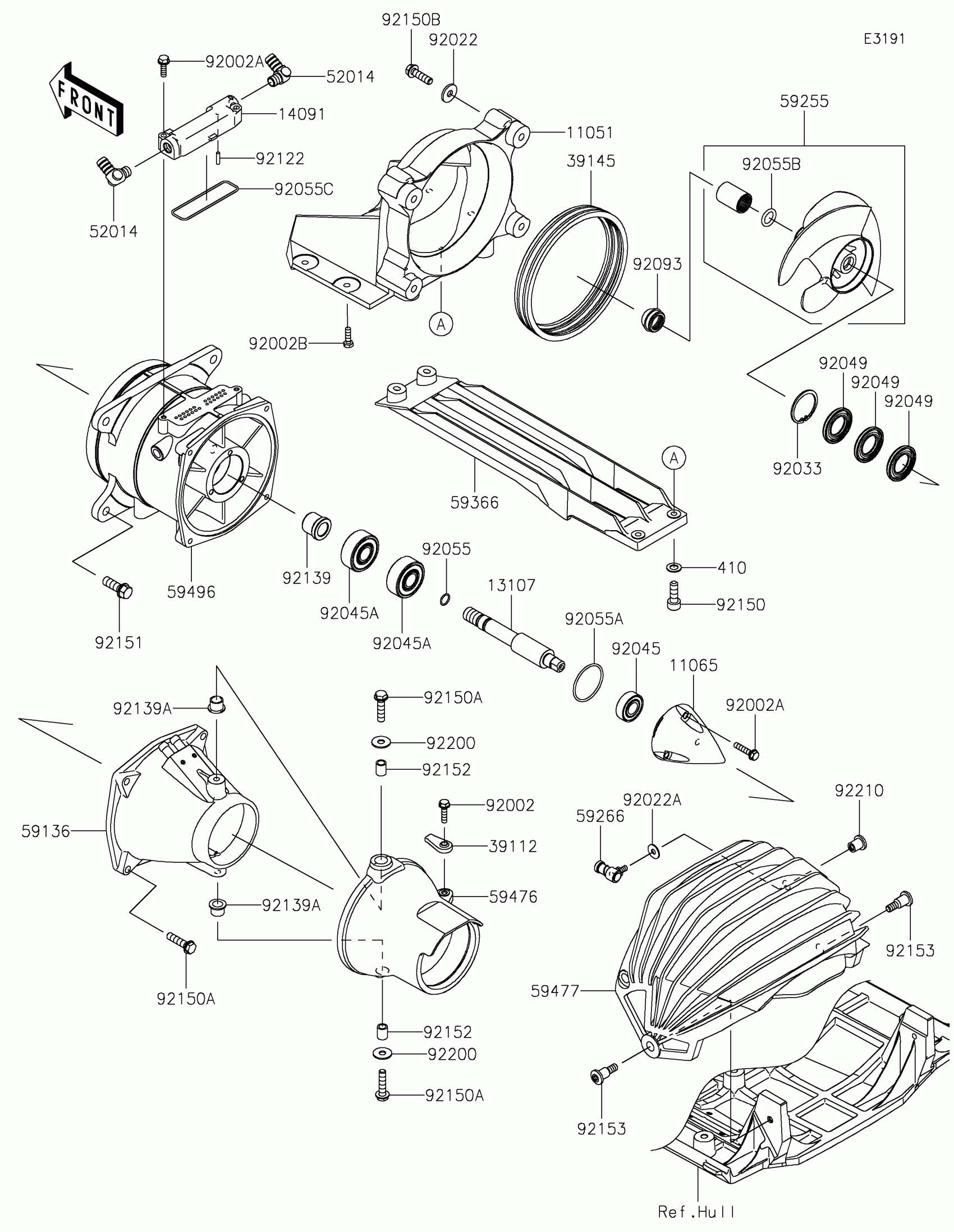

2020 Kawasaki JET SKI® STX®160X JET Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET

11051-3763

1
Out of stock

11065

CAP

11065-0828

1
Out of stock

13107

SHAFT

13107-0765

1
Out of stock

14091

COVER,VANE GUIDE

14091-3817

1
Out of stock

39112

RODEND-TIE

39112-3703

1

$20.69

In stock

39145

TRIM-SEAL

39145-3742

1

$41.39

In stock

410

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock

52014

ELBOW

52014-3711

1
Out of stock

59136

NOZZLE-PUMP

59136-3760

1
Out of stock

59255

IMPELLER-COMP

59255-3729

1
Out of stock

59266

JOINT-BALL

59266-3707

1
Out of stock

59366

GRATE

59366-3719

1
Out of stock

59476

NOZZLE-STRG

59476-3743

1
Out of stock

59477

BUCKET-REVERSE

59477-0001

1
Out of stock

59496

VANE-GUIDE

59496-0001

1
Out of stock

92002

BOLT,6X25

92002-3714

1
Out of stock

92002A

BOLT,6X30

92002-3726

1
Out of stock

92002B

BOLT,6X20

92002-3755

1
Out of stock

92022

WASHER,8.4X23X2.5

92022-3744

1
Out of stock

92022A

WASHER

92022-567

1
Out of stock

92033

RING-SNAP

92033-3730

1
Out of stock

92045

BEARING-BALL,62022RD

92045-3721

1
Out of stock

92045A

BEARING-BALL,6303R-6

92045-3740

1
Out of stock

92049

SEAL-OIL

92049-3739

1
Out of stock

92055

RING-O,12X1.5

92055-025

1
Out of stock

92055A

RING-O

92055-3741

1
Out of stock

92055B

RING-O,66.5X2.0

92055-3784

1
Out of stock

92093

SEAL

92093-3749

1
Out of stock

92122

ROLLER

92122-0044

1
Out of stock

92139

BUSHING

92139-0718

1
Out of stock

92139A

BUSHING

92139-3720

1
Out of stock

92150

BOLT,SOCKET,6X18

92150-3775

1
Out of stock

92150A

BOLT,8X35

92150-3792

1
Out of stock

92150B

BOLT,FLANGED,8X30

92150-3803

1
Out of stock

92151

BOLT,10X30

92151-3706

1
Out of stock

92152

COLLAR,8.2X11.8X15

92152-3703

1
Out of stock

92153

BOLT,SOCKET,8X30

92153-3745

1
Out of stock

92200

WASHER,8.0X22.0X1.5

92200-0174

1
Out of stock

92210

NUT,6MM

92210-3789

1
Out of stock
