2020 Kawasaki JET SKI® STX®160X Hull Diagram

← All diagrams

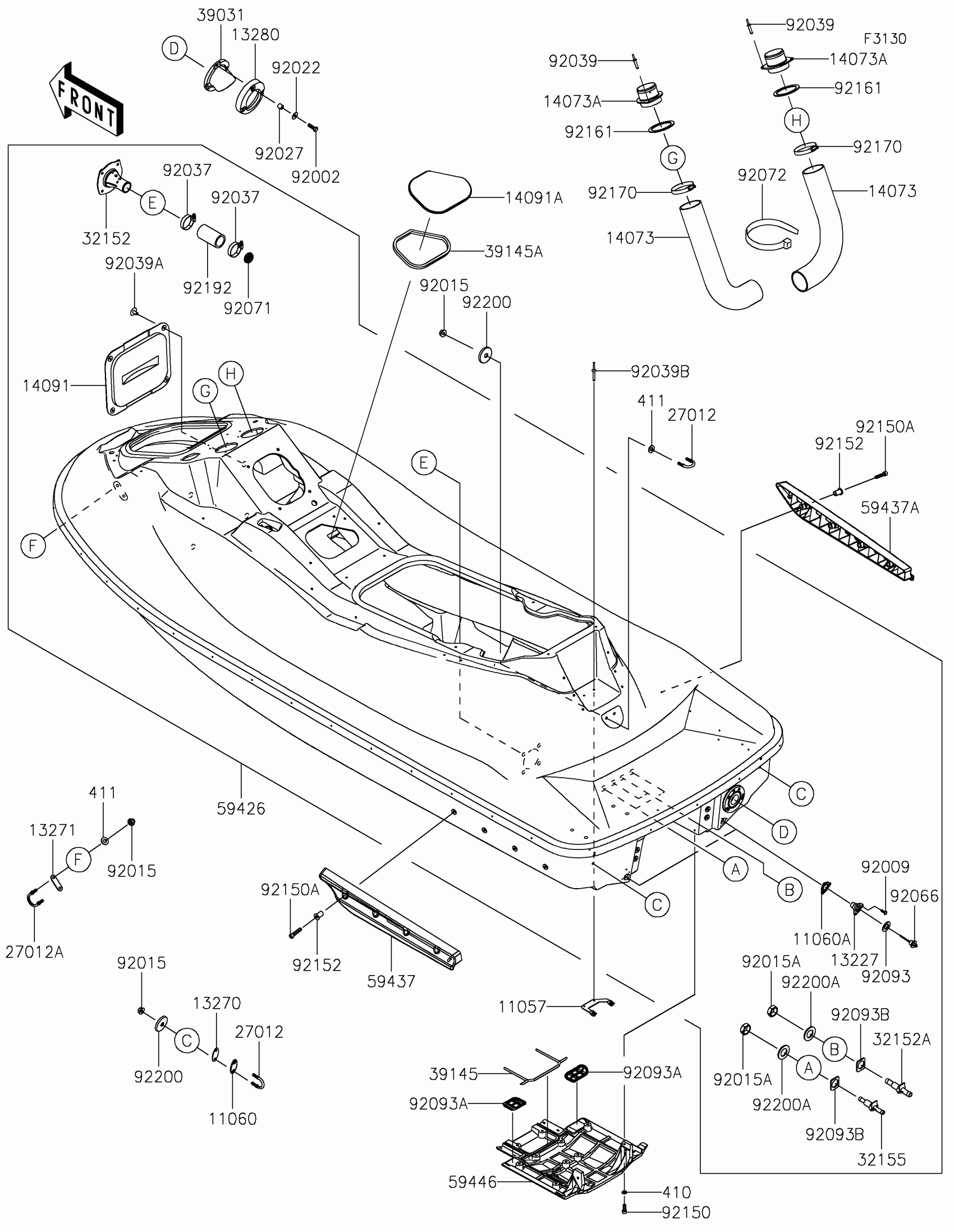

Find the part on the Hull diagram for your 2020 Kawasaki JET SKI® STX®160X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki JET SKI® STX®160X Hull Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET

11051-3731

1
Out of stock

11057

BRACKET,BREATHER

11057-2807

1
Out of stock

11060

GASKET

11060-3781

1
Out of stock

11060A

GASKET,U HOOK,RR

11060-3800

1
Out of stock

11060B

GASKET,DRAIN PLUG

11060-3801

1
Out of stock

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

1
Out of stock

13270

PLATE

13270-3860

1

$8.20

In stock

13271

PLATE

13271-3724

1

$3.85

In stock

13280

1

$25.92

In stock

14073

DUCT

14073-0868

1

$15.81

In stock

14073A

DUCT

14073-3805

1

$5.76

In stock

14091

COVER,ECU

14091-3786

1
Out of stock

14091A

COVER,CNT ACCESS

14091-3800

1
Out of stock

27012

HOOK

27012-3797

1
Out of stock

27012A

HOOK

27012-3821

1
Out of stock

32152

PIPE,DRIVE SHAFT

32152-3703

1
Out of stock

32152A

PIPE

32152-3749

1
Out of stock

32155

PIPE,COOLING

32155-1511

1
Out of stock

39031

CAP-END

39031-3704

1

$41.65

In stock

39145

1

$30.81

In stock

39145A

1

$15.46

In stock

59156

PIPE-TAIL

59156-3740

1
Out of stock

59426

HULL-COMP,BLACK

59426-0013-650

1
Out of stock

59437

STABILIZER,LH,F.BLACK

59437-3745-6Z

1
Out of stock

59437A

STABILIZER,RH,F.BLACK

59437-3746-6Z

1
Out of stock

59446

COVER-JET PUMP

59446-0078

1
Out of stock

92002

BOLT,6X20

92002-3755

1
Out of stock

92009

SCREW,TAPPING,4X16

92009-3849

1
Out of stock

92015

NUT,20MM

92015-1589

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1933

1
Out of stock

92022

WASHER,20.3X36X2.3

92022-1116

1
Out of stock

92022A

WASHER

92022-567

1
Out of stock

92027

COLLAR,6.2X10X10

92027-3705

1
Out of stock

92037

CLAMP

92037-3009

1
Out of stock

92039

RIVET

92039-3775

1
Out of stock

92039A

RIVET

92039-3785

1
Out of stock

92039B

RIVET

92039-3794

1
Out of stock

92066

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

1
Out of stock

92071

GROMMET

92071-1259

1
Out of stock

92072

BAND,L=608.22

92072-3884

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock

411

WASHER-PLAIN,8MM

411S0800

1
Out of stock

92093

SEAL

92093-3720

1
Out of stock

92093A

SEAL

92093-3765

1
Out of stock

92093B

SEAL

92093-3784

1
Out of stock

92150

BOLT,SOCKET,6X18

92150-3775

1
Out of stock

92150A

BOLT,SOCKET,6X30

92150-3822

1
Out of stock

92151

BOLT,SOCKET,6X20

92151-3774

1
Out of stock

92152

COLLAR

92152-3715

1
Out of stock

92161

DAMPER

92161-3769

1

$3.37

In stock

92170

CLAMP

92170-1679

1

$5.95

In stock

92192

TUBE,39X51X90

92192-1511

1
Out of stock

92200

WASHER

92200-3779

1
Out of stock
