2010 Kawasaki Jet Ski® STX-15F Intake Silencer Diagram

← All diagrams

Find the part on the Intake Silencer diagram for your 2010 Kawasaki Jet Ski® STX-15F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

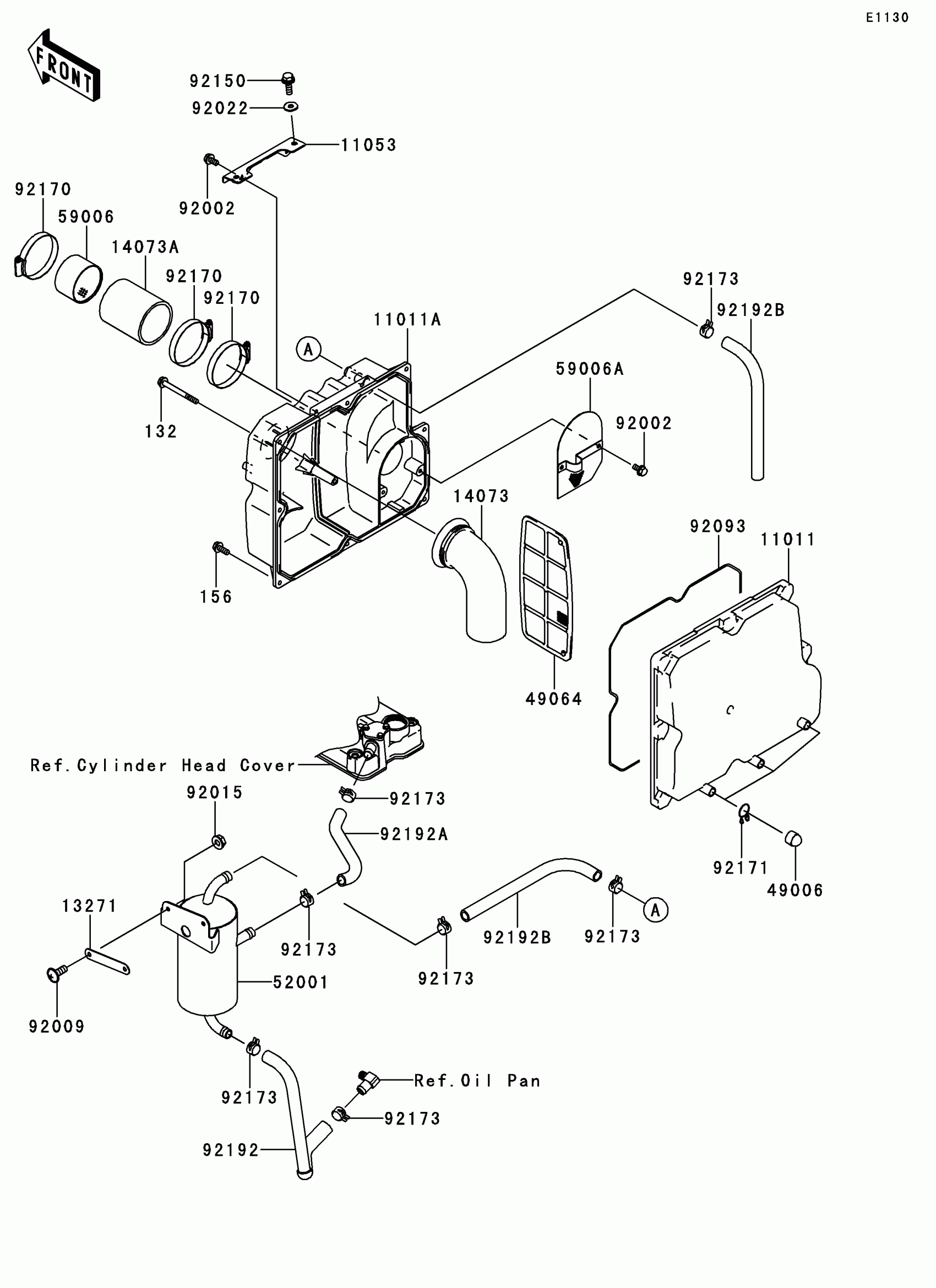

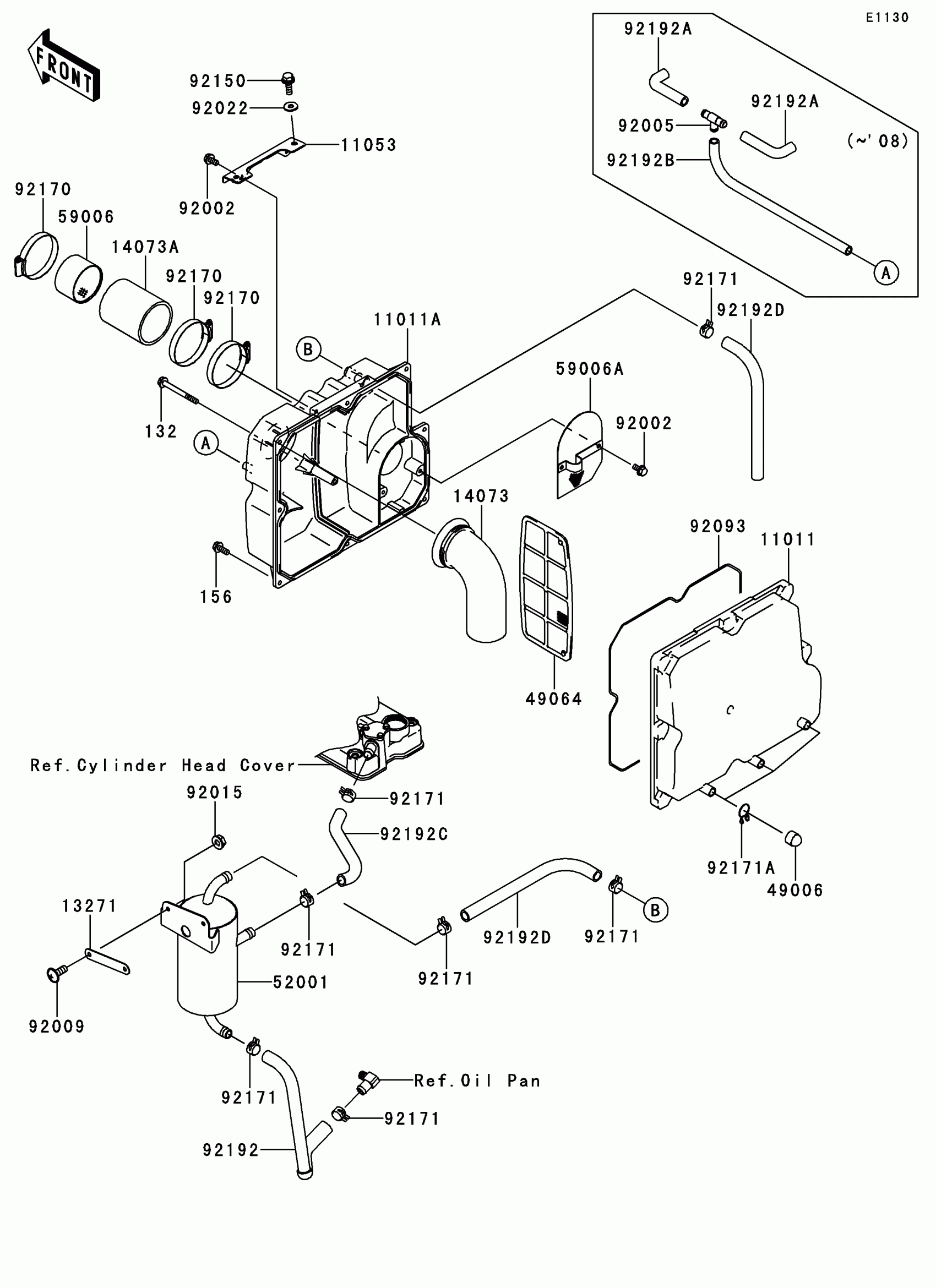

2010 Kawasaki Jet Ski® STX-15F Intake Silencer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER,RR

11011-3704

1
Out of stock

11011A

CASE-AIR FILTER,FR

11011-3706

1
Out of stock

11053

BRACKET

11053-3789

1

$33.63

In stock

13271

PLATE

13271-3880

1

$4.42

In stock

14073

DUCT,AIR INLET

14073-3794

1

$16.56

In stock

14073A

1

$4.88

In stock

49006

BOOT,DRAIN

49006-3718

1
Out of stock

49064

FILTER-AIR

49064-3702

1
Out of stock

52001

TANK-OIL

52001-3738

1
Out of stock

59006

ARRESTER-FLAME

59006-0019

1
Out of stock

59006A

ARRESTER-FLAME

59006-3720

1
Out of stock

92002

BOLT,6X12

92002-3763

1
Out of stock

92009

SCREW,6X20

92009-3870

1
Out of stock

92015

NUT,6MM

92015-3767

1
Out of stock

92022

WASHER,8.2X18X1.5

92022-3743

1
Out of stock

92093

SEAL

92093-3766

1
Out of stock

92150

BOLT,8X20

92150-3713

1
Out of stock

92170

CLAMP

92170-3764

1

$9.95

In stock

92171

CLAMP,TUBE

92171-3710

1
Out of stock

92171A

CLAMP,BOOT

92171-3711

1
Out of stock

92192

TUBE,SEPARATOR-OILPAN

92192-3701

1
Out of stock

92192C

TUBE,HEAD-SEPARATOR

92192-3719

1
Out of stock

92192D

TUBE,BLOWBY

92192-3725

1
Out of stock

132

1

$4.63

In stock

156

BOLT-WP,6X16

156R0616

1
Out of stock
