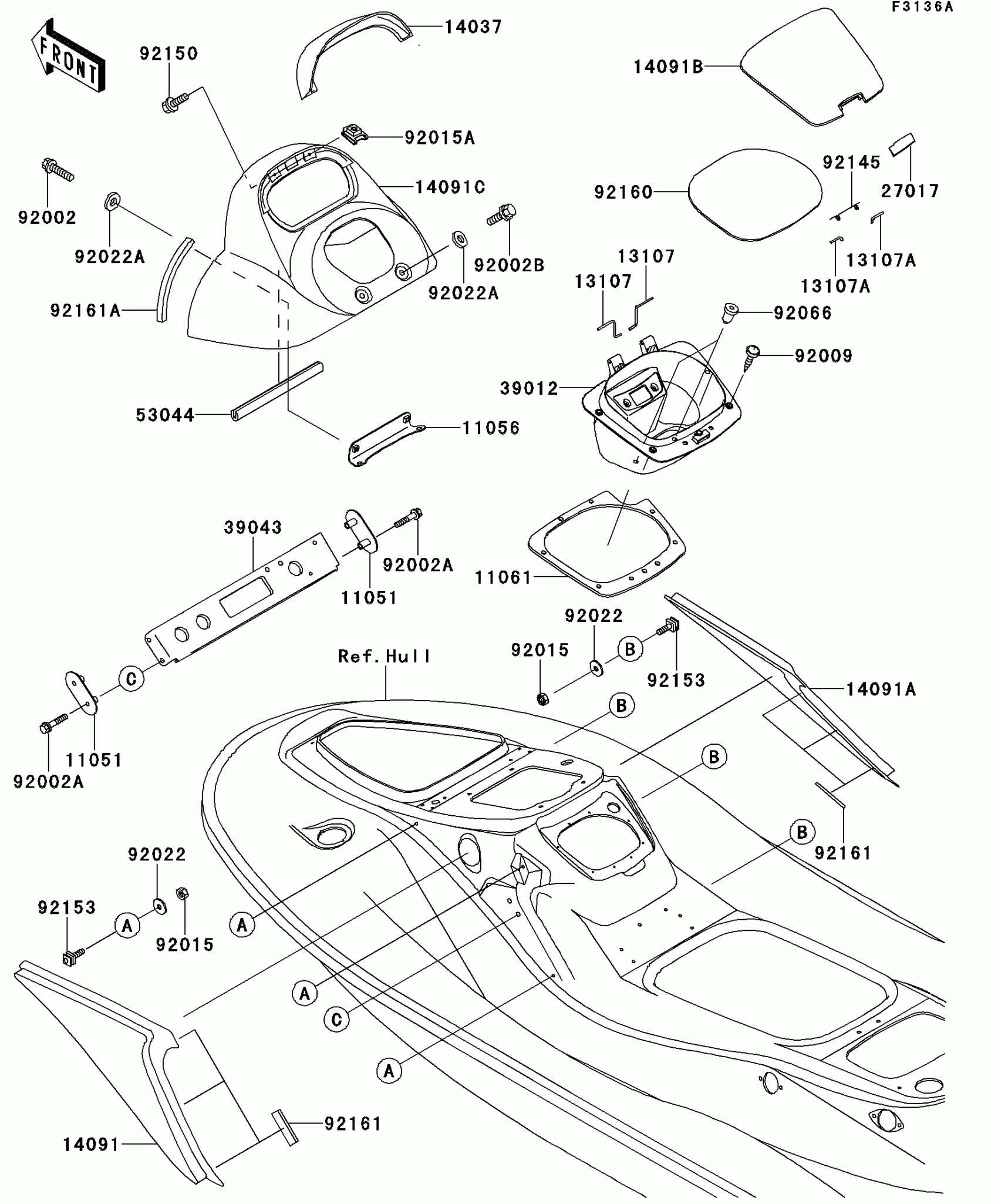

Kawasaki JET SKI® STX®-15F Hull Middle Fittings(AFF) Diagram

Description

Price

11051

BRACKET,CROSSMEMBER

11051-3782

$16.61

11056

BRACKET

11056-3719

$37.87

11061

GASKET,CASE-STORAGE

11061-0855

$4.51

13107

SHAFT

13107-3761

$3.54

13107A

SHAFT

13107-3769

$3.66

14037

SCREEN,METER,F.S.BLACK

14037-3709-378

$86.15

14091

COVER,SIDE,LH,L.GREEN

14091-3708-777

$115.70

14091A

COVER,SIDE,RH,L.GREEN

14091-3709-777

$116.87

14091B

COVER,CENTER STORAGE,EBONY

14091-3710-H8

$96.52

14091C

COVER,HANDLE,F.S.BLACK

14091-3770-378

$152.97

27017

LOCK,CENTER STORAGE

27017-3725

$9.34

39012

CASE-STORAGE

39012-0039

$63.64

39043

CROSSMEMBER-COMP

39043-3703

$104.42

53044

TRIM,L=180

53044-3755

$9.24

92002

BOLT,6X25

92002-3714

$3.97

92002A

BOLT,6X30

92002-3726

$3.72

92002B

BOLT,6X12

92002-3763

$3.72

92009

SCREW,TAPPING,5X20

92009-3716

$2.92

92015

NUT,LOCK,5MM

92015-3798

$7.83

92015A

NUT,CLIP,5MM

92015-3830

$6.30

92022

WASHER,5X16X1.5

92022-3041

$3.33

92022A

WASHER,6.5X20X1.5

92022-3710

$2.92

92066

PLUG

92066-3773

$1.58

92145

SPRING

92145-3711

$4.39

92150

BOLT,5X16

92150-3778

$3.69

92153

BOLT,5MM

92153-3703

$7.59

92160

DAMPER

92160-3933

$12.27

92161

DAMPER

92161-3756

$1.80

92161A

DAMPER

92161-3757

$3.59
