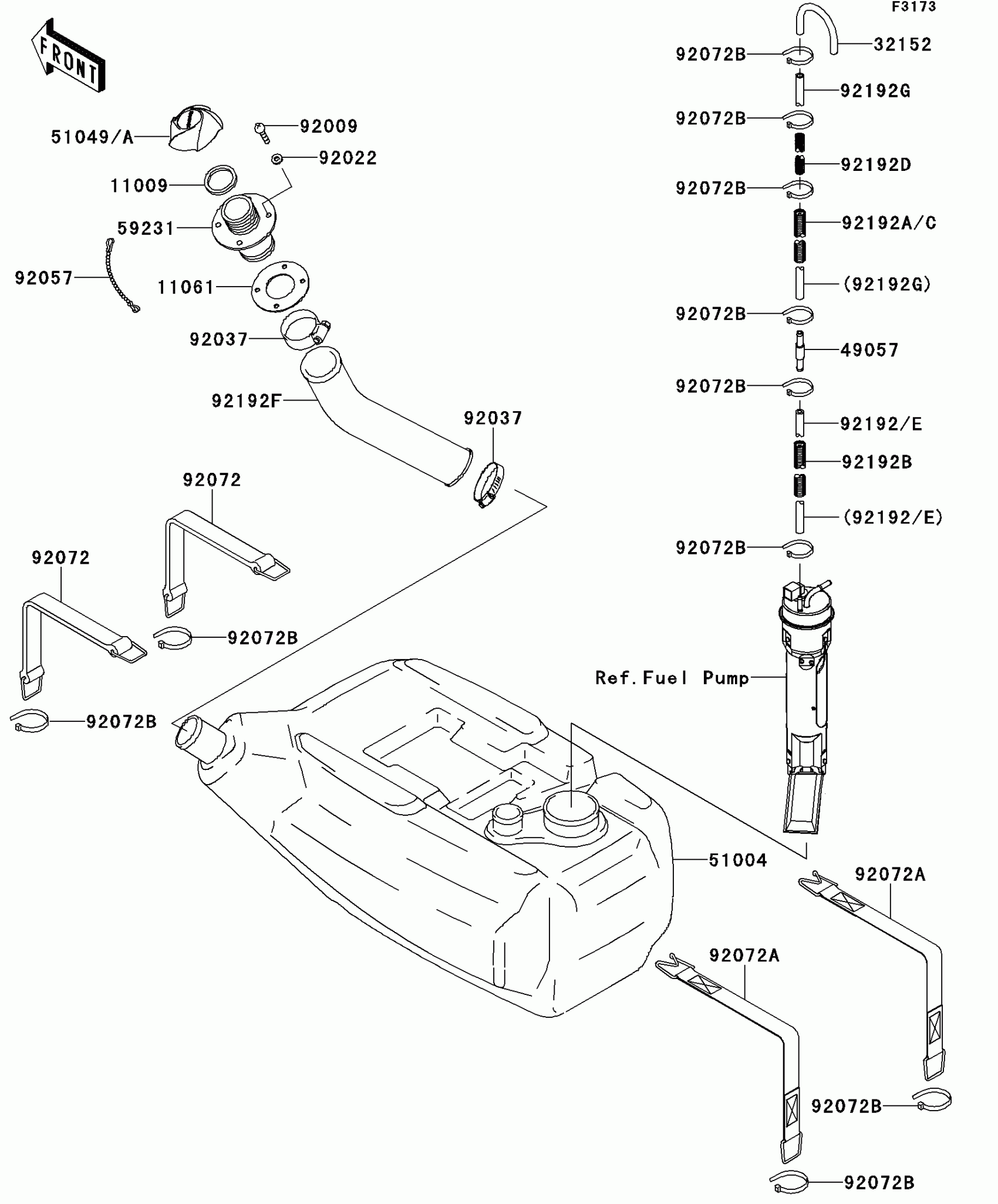

Kawasaki JET SKI® STX®-15F Fuel Tank(ABF-AEF) Diagram

Description

Price

11009

GASKET,TANK CAP

11009-3020

$10.69

11061

GASKET

11061-3701

$13.46

32152

PIPE

32152-3705

$11.41

49057

VALVE-RELIEF

49057-3707

$59.58

51004

TANK-FUEL

51004-3751

$372.76

51049

CAP-TANK,FUEL

51049-0712

$22.06

59231

FILLER,FUEL TANK

59231-3734

$12.72

92009

SCREW,TAPPING,4X16

92009-3849

$1.39

92022

WASHER

92022-563

$1.05

92037

CLAMP

92037-3009

$3.25

92057

CHAIN,COVER,L=100

92057-3704

$15.18

92072

BAND

92072-3845

$17.34

92072A

BAND

92072-3850

$49.58

92072B

BAND,L=100.08

92072-3882

$1.71

92192

TUBE,5.8X11X100

92192-1103

$17.68

92192A

TUBE,CORRUGATED,15.3X20.6X650

92192-3748

$4.02

92192B

TUBE,CORRUGATED,L=120

92192-3749

$3.47

92192D

TUBE,CORRUGATED,L=100

92192-3809

$2.15

92192F

TUBE,FUEL TANK-FILLER

92192-3842

$52.72

92192G

TUBE,5.8X10.8X1000

92192-3844

$20.76
